052807 Series

Manufacturer: Molex

Catalog

FFC & FPC CONNECTORS 1.0 FFC NON ZIF DIP HSG ASSY 13CKT

Part	Operating Temperature (Min)	Operating Temperature (Max)	Cable End Type	Pitch	Contact Material	Contact Finish	Housing Material	Material Flammability Rating	Number of Positions	Termination	Mounting Type	FFC, FCB Thickness	Height Above Board	Flat Flex Type	Voltage Rating	Connector/Contact Type	Current Rating

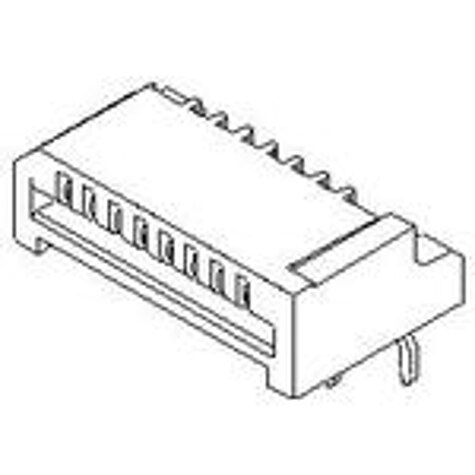

Molex 0528071310	-20 °C	80 °C	Straight	0.039 in	Phosphor Bronze	Tin	Polyphenylene Sulfide PPS	UL94 V-0	13	Kinked Pin	Right Angle Through Hole	0.3 mm	0.142 in	FPC	50 V	Contacts Top	0.5 A
Molex 0528071210	-20 °C	80 °C	Straight	0.039 in	Phosphor Bronze	Tin	Polyphenylene Sulfide PPS	UL94 V-0	12	Kinked Pin	Right Angle Through Hole	0.3 mm	0.142 in	FPC	50 V	Contacts Top	0.5 A
Molex 0528071910	-20 °C	80 °C	Straight	0.039 in	Phosphor Bronze	Tin	Polyphenylene Sulfide PPS	UL94 V-0	19	Kinked Pin	Right Angle Through Hole	0.3 mm	0.142 in	FPC	50 V	Contacts Top	0.5 A
Molex 0528070510	-20 °C	80 °C	Straight	0.039 in	Phosphor Bronze	Tin	Polyphenylene Sulfide PPS	UL94 V-0	5	Kinked Pin	Right Angle Through Hole	0.3 mm	0.142 in	FPC	50 V	Contacts Top	0.5 A
Molex 0528072510	-20 °C	80 °C	Straight	0.039 in	Phosphor Bronze	Tin	Polyphenylene Sulfide PPS	UL94 V-0	25	Kinked Pin	Right Angle Through Hole	0.3 mm	0.142 in	FPC	50 V	Contacts Top	0.5 A
Molex 0528072810	-20 °C	80 °C	Straight	0.039 in	Phosphor Bronze	Tin	Polyphenylene Sulfide PPS	UL94 V-0	28	Kinked Pin	Right Angle Through Hole	0.3 mm	0.142 in	FPC	50 V	Contacts Top	0.5 A
Molex 0528071110	-20 °C	80 °C	Straight	0.039 in	Phosphor Bronze	Tin	Polyphenylene Sulfide PPS	UL94 V-0	11	Kinked Pin	Right Angle Through Hole	0.3 mm	0.142 in	FPC	50 V	Contacts Top	0.5 A
Molex 0528071010	-20 °C	80 °C	Straight	0.039 in	Phosphor Bronze	Tin	Polyphenylene Sulfide PPS	UL94 V-0	10	Kinked Pin	Right Angle Through Hole	0.3 mm	0.142 in	FPC	50 V	Contacts Top	0.5 A
Molex 0528071510	-20 °C	80 °C	Straight	0.039 in	Phosphor Bronze	Tin	Polyphenylene Sulfide PPS	UL94 V-0	15	Kinked Pin	Right Angle Through Hole	0.3 mm	0.142 in	FPC	50 V	Contacts Top	0.5 A
Molex 0528071410	-20 °C	80 °C	Straight	0.039 in	Phosphor Bronze	Tin	Polyphenylene Sulfide PPS	UL94 V-0	14	Kinked Pin	Right Angle Through Hole	0.3 mm	0.142 in	FPC	50 V	Contacts Top	0.5 A
