AD9645 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

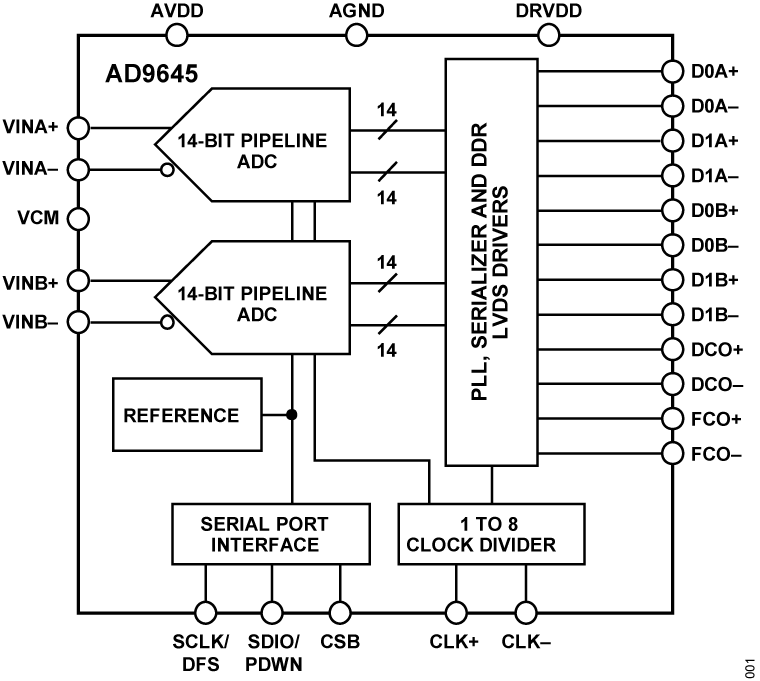

DUAL, 14-BIT, 80 MSPS/125 MSPS SERIAL LVDS 1.8 V ANALOG-TO-DIGITAL CONVERTER

Part	Configuration	Package Length	Package Name	Package Width	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Number of Inputs	Ratio - ADC	Ratio - S/H	Architecture	Mounting Type	Data Interface	Input Type	Number of A/D Converters	Reference Type	Features	Package / Case	Number of Bits	Voltage - Supply, Analog (Max)	Voltage - Supply, Analog (Min)	Sampling Rate (Per Second)	Supplied Contents	Contents	Input Voltage (Value)	Utilized IC / Part	Power (Typ)
Analog Devices Inc./Maxim Integrated AD9645BCPZRL7-80	S/H-ADC	5 mm	32-LFCSP	5 mm	1.7 V	1.9 V	-40 °C	85 °C	2	1	1	Pipelined	Surface Mount	LVDS - Serial	Differential	2 count	Internal	Simultaneous Sampling	32-WFQFN Exposed Pad CSP	14 bits	1.9 V	1.7 V	80 MHz
Analog Devices Inc./Maxim Integrated AD9645BCPZRL7-125	S/H-ADC	5 mm	32-LFCSP	5 mm	1.7 V	1.9 V	-40 °C	85 °C	2	1	1	Pipelined	Surface Mount	LVDS - Serial	Differential	2 count	Internal	Simultaneous Sampling	32-WFQFN Exposed Pad CSP	14 bits	1.9 V	1.7 V	125 MHz
Analog Devices Inc./Maxim Integrated AD9645BCPZ-125	S/H-ADC	5 mm	32-LFCSP	5 mm	1.7 V	1.9 V	-40 °C	85 °C	2	1	1	Pipelined	Surface Mount	LVDS - Serial	Differential	2 count	Internal	Simultaneous Sampling	32-WFQFN Exposed Pad CSP	14 bits	1.9 V	1.7 V	125 MHz
Analog Devices Inc./Maxim Integrated AD9645-125EBZ														LVDS Serial SPI		2 count				14 bits			125 MHz	Board(s)	Board	2 Vpp	AD9645	243 mW
Analog Devices Inc./Maxim Integrated AD9645BCPZ-80	S/H-ADC	5 mm	32-LFCSP	5 mm	1.7 V	1.9 V	-40 °C	85 °C	2	1	1	Pipelined	Surface Mount	LVDS - Serial	Differential	2 count	Internal	Simultaneous Sampling	32-WFQFN Exposed Pad CSP	14 bits	1.9 V	1.7 V	80 MHz
