RT07164 Series

Catalog

JAM NUT RECPT, SOCKET W KEYING

Part	Includes Total Count	Includes	Number of Positions	Contact Size	Note	Type	Housing Color	Insert Material	Shell Size - Insert Length	Shell Size - Insert Width	Shielding	Ingress Protection Description	Ingress Protection IP Rating	Shell Material	Material Flammability Rating	Shell Finish	Orientation	Mounting Type	Contact Type	Operating Temperature (Min)	Operating Temperature (Max)	Fastening Type	Mounting Feature	Connector Type	Contact Shape	Primary Material
McGill Microwave Systems RT07164SWH	3 pcs	Connector Nut O-Ring	4	3.6 mm	Contacts Not Included	For Female Sockets	Silver	Thermoplastic	16 mm	4 mm	Shielded	Dust Tight Waterproof	IP67	Zinc Alloy	UL94 V-0	Nickel	W	Panel Mount	Crimp	-40 °C	105 °C	Bayonet Lock	Bulkhead Front Side Nut	Receptacle Housing	Circular

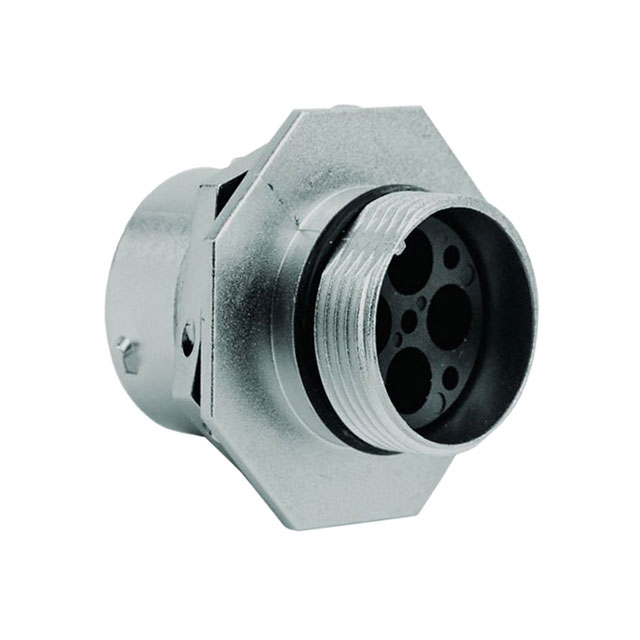

McGill Microwave Systems RT07164PNH			4	3.6 mm	Contacts Not Included	For Male Pins	Silver	Thermoplastic	16 mm	4 mm	Shielded	Dust Tight Waterproof	IP67	Zinc Alloy	UL94 V-0	Nickel	N (Normal)	Panel Mount	Crimp	-40 °C	105 °C	Bayonet Lock	Bulkhead Front Side Nut	Receptacle Housing	Circular
McGill Microwave Systems RT07164PNHEC03			4	8		For Male Pins	Silver		16 mm	4 mm	Unshielded	Dust Tight Waterproof	IP67	Zinc Alloy	UL94 V-0	Nickel	N (Normal)	Free Hanging (In-Line) Panel Mount	Crimp			Bayonet Lock	Bulkhead Front Side Nut	Receptacle Housing		Metal
