BIS10PL Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN MALE INSERT 3P SOLDER CUP

Part	Current Rating (Per Contact)	Orientation	Insert Material	Connector Type	Features	Ingress Protection	Contact Material	Shell Size - Insert Length	Shell Size - Insert Width	Shielding	Number of Positions	Applications	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish - Mating	Termination

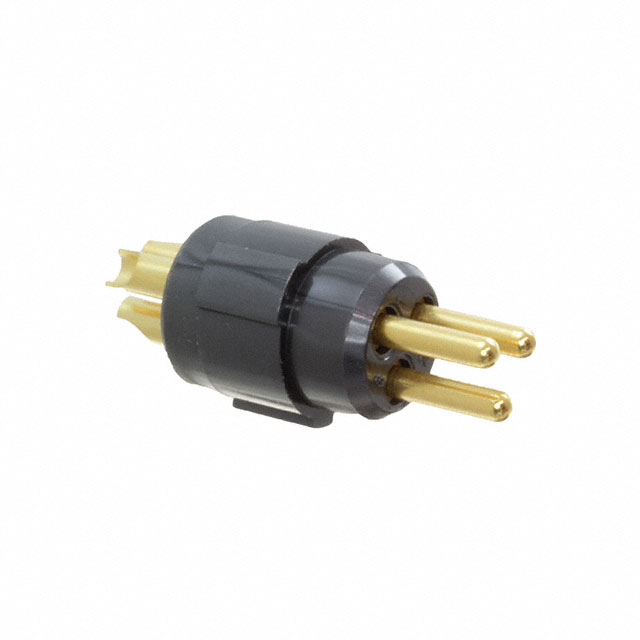

Amphenol Aerospace Operations BIS10PLN0314M	20 A	Keyed	Molybdenum Disulfide MoS2 Nylon 6/6 PA66 Polyamide	Insert Male Pins	Insert Only Requires Shell	Water Resistant	Copper Alloy	10 mm	3 mm	Unshielded	3	Marine	70 °C	-20 °C	Gold	Solder Cup
Amphenol Aerospace Operations BIS10PLN0416F	14 A	Keyed	Molybdenum Disulfide MoS2 Nylon 6/6 PA66 Polyamide	Female Sockets Insert	Insert Only Requires Shell	Water Resistant	Copper Alloy	10 mm	4 mm	Unshielded	4	Marine	70 °C	-20 °C	Gold	Solder Cup
Amphenol Aerospace Operations BIS10PLN0920M	7 A	Keyed	Molybdenum Disulfide MoS2 Nylon 6/6 PA66 Polyamide	Insert Male Pins	Insert Only Requires Shell	Water Resistant	Copper Alloy	10 mm	9 mm	Unshielded	9	Marine	70 °C	-20 °C	Gold	Solder Cup
Amphenol Aerospace Operations BIS10PLN0314F	20 A	Keyed	Molybdenum Disulfide MoS2 Nylon 6/6 PA66 Polyamide	Female Sockets Insert	Insert Only Requires Shell	Water Resistant	Copper Alloy	10 mm	3 mm	Unshielded	3	Marine	70 °C	-20 °C	Gold	Solder Cup
Amphenol Aerospace Operations BIS10PLN0416M	14 A	Keyed	Molybdenum Disulfide MoS2 Nylon 6/6 PA66 Polyamide	Insert Male Pins	Insert Only Requires Shell	Water Resistant	Copper Alloy	10 mm	4 mm	Unshielded	4	Marine	70 °C	-20 °C	Gold	Solder Cup
Amphenol Aerospace Operations BIS10PLN0720F	7 A	Keyed	Molybdenum Disulfide MoS2 Nylon 6/6 PA66 Polyamide	Female Sockets Insert	Insert Only Requires Shell	Water Resistant	Copper Alloy	10 mm	7 mm	Unshielded	7	Marine	70 °C	-20 °C	Gold	Solder Cup
Amphenol Aerospace Operations BIS10PLN0720M	7 A	Keyed	Molybdenum Disulfide MoS2 Nylon 6/6 PA66 Polyamide	Insert Male Pins	Insert Only Requires Shell	Water Resistant	Copper Alloy	10 mm	7 mm	Unshielded	7	Marine	70 °C	-20 °C	Gold	Solder Cup

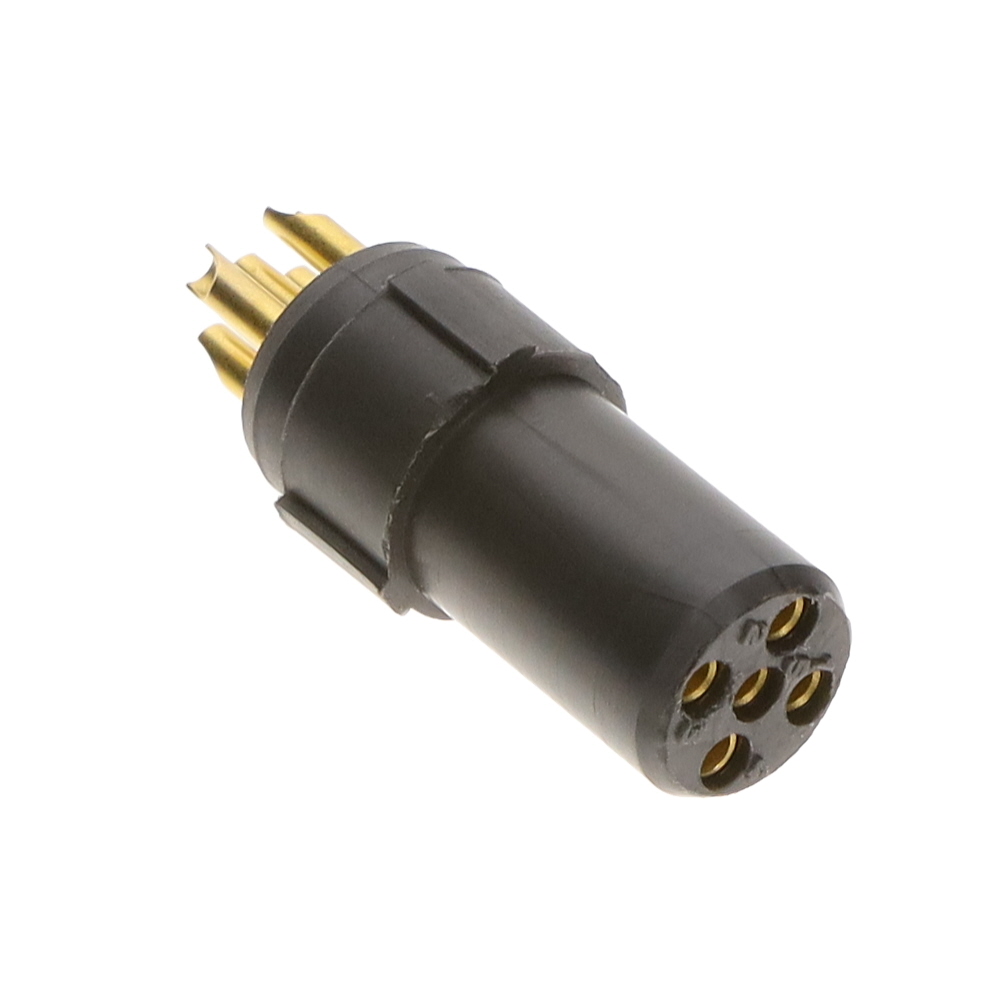

Amphenol Aerospace Operations BIS10PLN0516F	14 A	Keyed	Molybdenum Disulfide MoS2 Nylon 6/6 PA66 Polyamide	Female Sockets Insert	Insert Only Requires Shell	Water Resistant	Copper Alloy	10 mm	5 mm	Unshielded	5	Marine	70 °C	-20 °C	Gold	Solder Cup
