M85049/82 Series

Catalog

CONN BACKSH BANDING SZ7 12 BLK

Part	Type	Material	Features	Cable Exit Angle	Cable Opening	Color	Plating	Shell Size - Insert	Diameter - Outside	Shielding	Shell Size - Insert	For Use With/Related Products
McGill Microwave Systems M85049/82-12Z02	Backshell Banding	Aluminum Alloy	Self Locking	180 °	0.32 in	Black	Zinc Cobalt	12 7	1.14 in	Unshielded
McGill Microwave Systems M85049/82-24Z03	Backshell Banding	Aluminum Alloy	Self Locking	180 °	1.01 in	Black	Zinc Cobalt	24	1.89 in	Unshielded	24

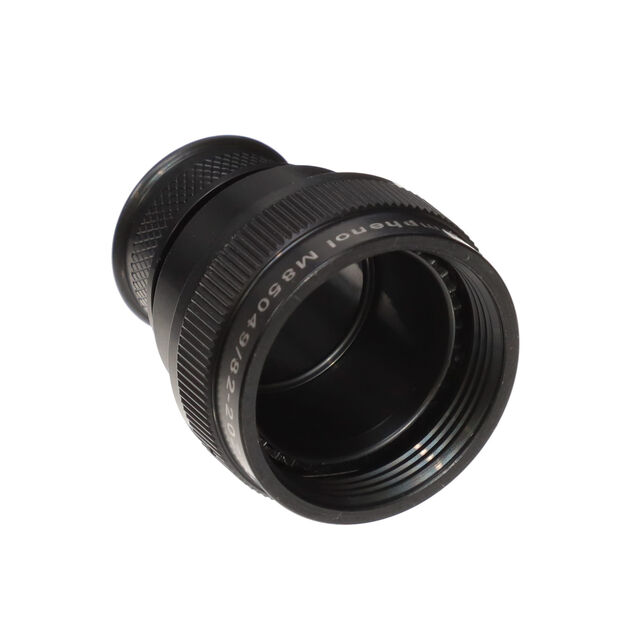

McGill Microwave Systems M85049/82-20Z03	Backshell Banding	Aluminum Alloy	Self Locking	180 °	0.82 in	Black	Zinc Cobalt	20 37	1.64 in	Unshielded		MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III
McGill Microwave Systems M85049/82-12Z03	Backshell Banding	Aluminum Alloy	Self Locking	180 °	0.45 in	Black	Zinc Cobalt	12 7	1.14 in	Unshielded
McGill Microwave Systems M85049/82-12Z03	Backshell Banding	Aluminum Alloy	Self Locking	180 °	0.45 in	Black	Zinc Cobalt	12 7	1.14 in	Unshielded		MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III
McGill Microwave Systems M85049/82-24Z02	Backshell Banding	Aluminum Alloy	Self Locking	180 °	0.76 in	Black	Zinc Cobalt	24	1.89 in	Unshielded	24	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III
McGill Microwave Systems M85049/82-28Z02	Backshell Banding	Aluminum Alloy	Self Locking	180 °	0.89 in	Black	Zinc Cobalt	28	2.14 in	Unshielded	28
McGill Microwave Systems M85049/82-14Z03	Backshell Banding	Aluminum Alloy	Self Locking	180 °	0.57 in	Black	Zinc Cobalt	12 14	1.26 in	Unshielded		MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III

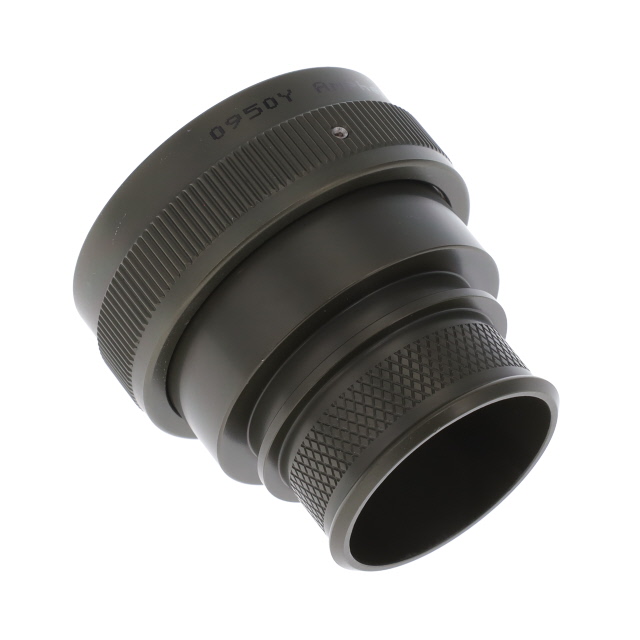

McGill Microwave Systems M85049/82-24W03	Backshell Banding	Aluminum Alloy	Self Locking	180 °	1.01 in	Olive	Cadmium	24	1.885 in	Unshielded	24
McGill Microwave Systems M85049/82-24Z03	Backshell Banding	Aluminum Alloy	Self Locking	180 °	1.01 in	Black	Zinc Cobalt	24	1.89 in	Unshielded	24	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III
