APR311 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
RELAY MOS 4 PIN SMD 60V AC/DC
| Part | Load Current | Output Type | Package Name | Circuit | On-State Resistance (Max) | Voltage - Load (Min) | Voltage - Load (Max) | Approval Agency | Voltage - Input (DC) Maximum | Voltage - Input (DC) Minimum | Mounting Type | Operating Temperature (Min) | Operating Temperature (Max) | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

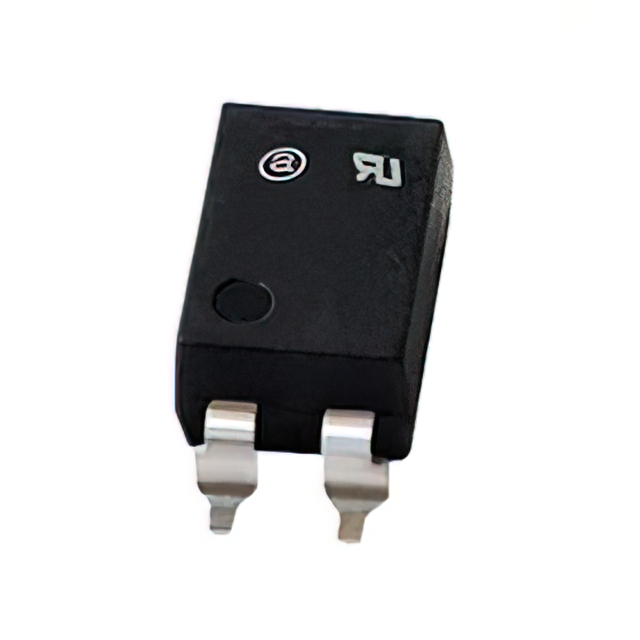

 McGill Microwave Systems | 550 mA | AC DC | 4-SMD | SPST-NO (1 Form A) | 1.4 Ohms | 0 V | 60 V | cURus UR | 1.5 VDC | 0.9 VDC | Surface Mount | -40 °C | 85 °C | 4-SMD Gull Wing |
McGill Microwave Systems | 0.1 A | AC DC | 4-SMD | SPST-NC (1 Form B) | 50 Ohms | 0 V | 400 V | cURus UR | 1.5 VDC | 0.9 VDC | Surface Mount | -40 °C | 85 °C | 4-SMD Gull Wing |

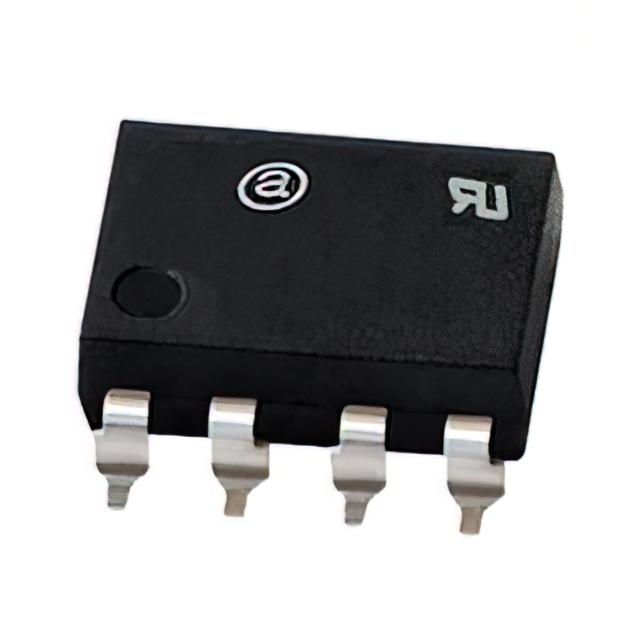

 McGill Microwave Systems | 130 mA | AC DC | 8-SMD | DPST-NO/NC (1 Form A and B) | 50 Ohms | 0 V | 350 V | cURus UR | 1.5 VDC | 0.9 VDC | Surface Mount | -40 °C | 85 °C | 8-SMD Gull Wing |
McGill Microwave Systems | 130 mA | AC DC | 4-SMD | SPST-NO (1 Form A) | 30 Ohm | 0 V | 350 V | cURus UR | 1.5 VDC | 0.9 VDC | Surface Mount | -40 °C | 85 °C | 4-SMD Gull Wing |

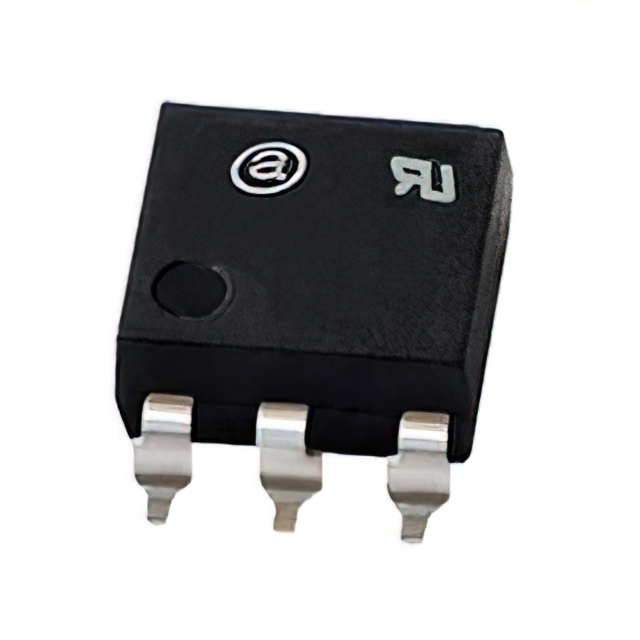

 McGill Microwave Systems | 550 mA | AC DC | 6-SMD | SPST-NO (1 Form A) | 1.4 Ohms | 0 V | 60 V | cURus UR | 1.5 VDC | 0.9 VDC | Surface Mount | -40 °C | 85 °C | 6-SMD Gull Wing |
