CP Series

Catalog

DIN RAIL TERMINAL BLOCKS DIN TERM BLK PUSH-IN 4 CONN

Part	Number of Positions	Current - IEC	Voltage - IEC	Terminal Width	Current - UL	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - mm² (Maximum)	Voltage - UL	Type	Termination Style	Number of Levels	Color	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	For Use With/Related Products	Number of Levels (Connection)	Number of Levels (Attributes)	Material - Insulation	Stripping Length
Altech Corporation CP1.5/4/BU	4	15 A	800 V	3.5 mm	15 A	0.2 mm²	1.5 mm²	600 V	Feed Through	Push In Spring	1	Blue	24 AWG	14 AWG
Altech Corporation EPCPDLK2.5									End Plate			Gray			CP Series
Altech Corporation CPDL1.5(I.S)/DB	4	16 A	500 V	3.5 mm	15 A	0.2 mm²	1.5 mm²	300 V	Feed Through	Push In Spring	2		24 AWG	14 AWG		Connected
Altech Corporation CP4/4/BU	4	32 A	1000 V	6 mm	30 A	0.2 mm²	4 mm²	600 V	Feed Through	Push In Spring	1	Blue	24 AWG	10 AWG
Altech Corporation CPDLG2.5(I.S)	4		1000 V	5 mm		0.2 mm²	2.5 mm²	600 V	Feed Through	Push In Spring	2	Green Yellow	24 AWG	12 AWG			Connected Grounded
Altech Corporation CPDL2.5/W	4	24 A	1000 V	5 mm	20 A	0.2 mm²	2.5 mm²	600 V	Feed Through	Push In Spring	2	White	24 AWG	12 AWG

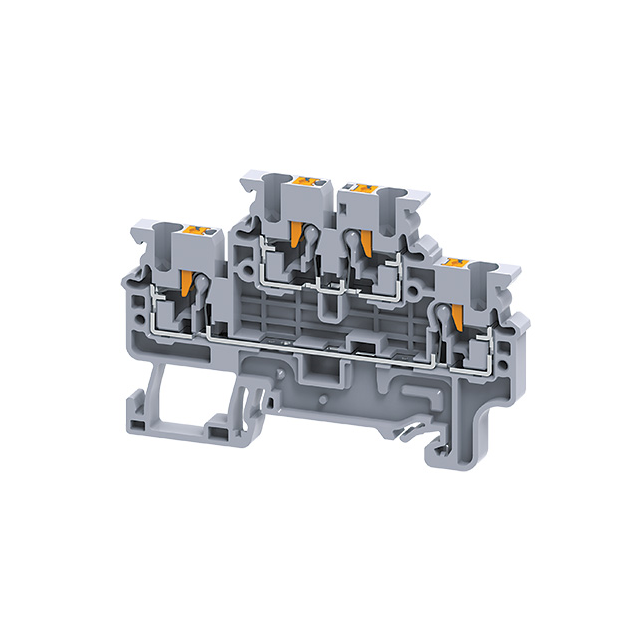

Altech Corporation CPDL2.5/DB	4	24 A	1000 V	5 mm	20 A	0.2 mm²	2.5 mm²	600 V	Feed Through	Push In Spring	2		24 AWG	12 AWG				Nylon 6/6 PA66 Polyamide	10 mm
Altech Corporation CPDL2.5/BU	4	24 A	1000 V	5 mm	20 A	0.2 mm²	2.5 mm²	600 V	Feed Through	Push In Spring	2	Blue	24 AWG	12 AWG				Nylon 6/6 PA66 Polyamide	10 mm
