K Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

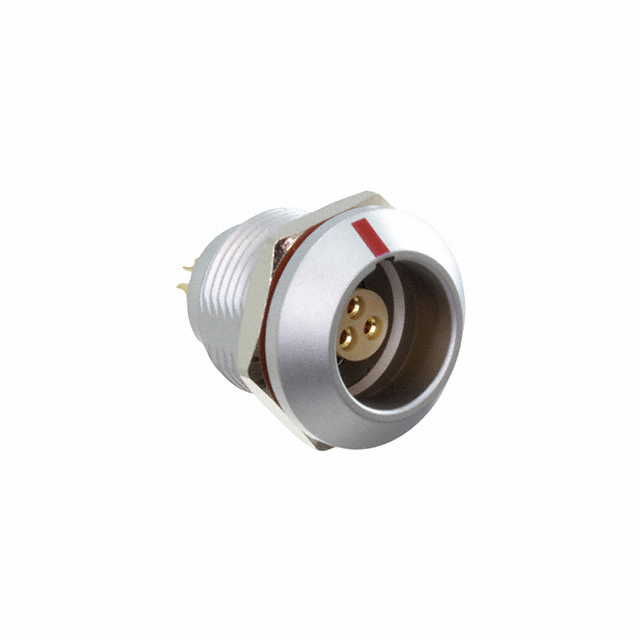

CIRCULAR PUSH PULL CONNECTORS FLOS, K SERIES B SIZE, METAL, 8A, 03 PINS, FEMALE CONNECTOR, FEMALE CONTACT, CIRCULAR, PUSH PULL, SOLDER, RECEPTACLE, REAR FASTENED, IP68
| Part | Contact Finish - Mating | Ingress Protection IP Rating | Ingress Protection Description | Primary Material | Mounting Type | Connector Type | Insert Material | Shell Size - Insert | Shell Finish | Shell Material | Applications | Number of Positions | Orientation | Voltage Rating | Shielding | Contact Material | Operating Temperature (Max) | Operating Temperature (Min) | Color | Termination | Fastening Type | Current Rating | Mounting Feature | Plating | Backshell Material | Cable Opening (Min) | Cable Opening (Max) | Features | Number of Contacts | Number of Conductors | Internal Switch(s) | Gender | Industry Recognized Mating Diameter (Headphone - Mini Plug) | Industry Recognized Mating Diameter (Headphone Options) | Signal Lines | Actual Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Gold | IP68 | Dust Tight Waterproof | Metal | Panel Mount | Female Sockets Receptacle | Polyphenylene Sulfide PPS | B-3 | Chrome | Copper Alloy | Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement | 3 | G | 400 V | Shielded | Copper Alloy | 125 °C | -40 °C | Silver | Solder Cup | Push-Pull | 8 A | Bulkhead Rear Side Nut | |||||||||||||
 McGill Microwave Systems | Gold | IP68 | Dust Tight Waterproof | Metal | Free Hanging (In-Line) | Male Pins Plug | Polyphenylene Sulfide PPS | C-8 | Chrome | Copper Alloy | Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement | 8 | G | 250 V | Shielded | Copper Alloy | 125 °C | -40 °C | Silver | Solder Cup | Push-Pull | 5 A | Chrome | Copper Alloy | 0.228 in | 0.24 in | Backshell Cable Clamp | |||||||||
 McGill Microwave Systems | Gold | IP68 | Dust Tight Waterproof | Metal | Free Hanging (In-Line) | Male Pins Plug | Polyphenylene Sulfide PPS | D-6 | Chrome | Copper Alloy | Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement | 6 | G | 550 V | Shielded | Copper Alloy | 125 °C | -40 °C | Silver | Solder Cup | Push-Pull | 12 A | Chrome | Copper Alloy | 0.256 in | 0.264 in | Backshell Cable Clamp | |||||||||
 McGill Microwave Systems | Free Hanging (In-Line) | Phone Plug | 65 °C | -20 °C | Solder Eyelet(s) | 3 Contacts | 3 Conductors | Does Not Contain Switch | Male | 3.5 mm | Mini Plug | 3 Conductor Stereo TRS | 0.138 in |
