DI0XX Series

Catalog

MOSFETS MOSFET, POWERQFN 5X6, 100V, 28A, 150C, N, AEC-Q101

Part	Channel Count	Configuration	Drain to Source Voltage (Vdss)	Package / Case	Current - Continuous Drain (Id) (Tc)	Operating Temperature (Min)	Operating Temperature (Max)	Vgs(th) (Max)	Grade	Power - Max (Tc)	Configuration - Features	Package Name	Input Capacitance (Ciss) (Max)	Technology	Rds On (Max)	Gate Charge (Max)	Qualification	Mounting Type	Drive Voltage (Min Rds On)	Drive Voltage (Max Rds On)	FET Type	Power Dissipation (Max)	Vgs (Max)	Package Length	Package Width	Drive Voltage (Max Rds On, Min Rds On)
Diotec Semiconductor DI028N10PQ2-AQ	2	N-Channel	100 V	8-PowerTDFN	28 A	-55 °C	150 °C	2.5 V	Automotive	32.7 W	Dual	TDSON-8-4	1028 pF	MOSFET (Metal Oxide)	21 mOhm	22 nC	AEC-Q101	Surface Mount
Diotec Semiconductor DI087N03D1-AQ			30 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	87 A	-55 °C	150 °C	2.5 V	Automotive			TO-252 (DPAK)	2486 pF	MOSFET (Metal Oxide)	3 mOhm	39 nC	AEC-Q101	Surface Mount	10 V	4.5 V	N-Channel	41.67 W	20 V
Diotec Semiconductor DI006P02PW			20 V	6-PowerUDFN 8-PowerUDFN	6 A	-55 °C	150 °C	1 V				6-QFN 8-QFN	1242 pF	MOSFET (Metal Oxide)	25 mOhm	13 nC		Surface Mount	4.5 V	2.5 V	P-Channel	2 W	12 V	2 mm	2 mm
Diotec Semiconductor DI050P03PT-AQ			30 V	8-PowerVDFN	50 A	-55 °C	150 °C	2.5 V	Automotive			8-QFN	3721 pF	MOSFET (Metal Oxide)	8 mOhm	70 nC	AEC-Q101	Surface Mount	10 V	4.5 V	P-Channel	39 W	20 V	3 mm	3 mm
Diotec Semiconductor DI064P04D1			40 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	64 A	-55 °C	150 °C	4 V				TO-252 (DPAK)	7475 pF	MOSFET (Metal Oxide)	7.6 mOhm	105 nC		Surface Mount			P-Channel	48.3 W	20 V			10 V

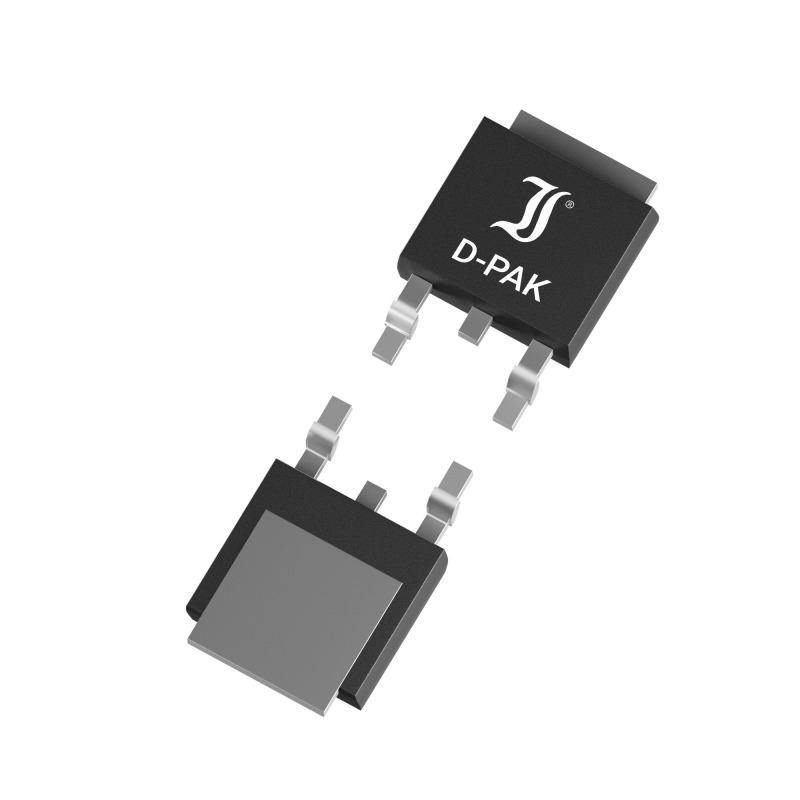

Diotec Semiconductor DI050N06D1-AQ			65 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	50 A	-55 °C	150 °C	2.5 V	Automotive			TO-252AA (DPAK)	825 pF	MOSFET (Metal Oxide)	11 mOhm	14 nC	AEC-Q101	Surface Mount	10 V	4.5 V	N-Channel	42 W	20 V
Diotec Semiconductor DI010N03PW-AQ			30 V	6-PowerUDFN	10 A	-55 °C	150 °C	2 V	Automotive			6-QFN	1120 pF	MOSFET (Metal Oxide)	12 mOhm	25 nC	AEC-Q101	Surface Mount	10 V	4.5 V	N-Channel	1.4 W	20 V	2 mm	2 mm
