4.3-10 Series

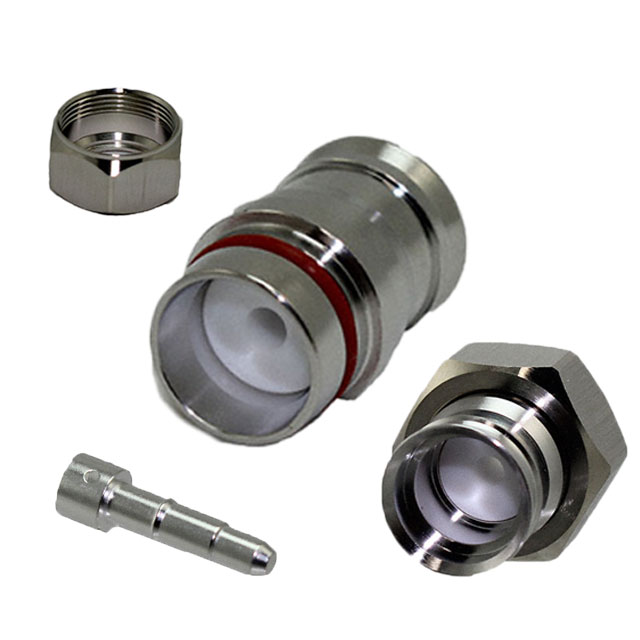

RF Connectors / Coaxial Connectors 4.3-10RA PLUG,SCREW SOLDER,1-2SF CABLE
Manufacturer: TE Connectivity AMP Connectors
Catalog
RF Connectors / Coaxial Connectors 4.3-10RA PLUG,SCREW SOLDER,1-2SF CABLE
Beta
⌘K
RF Connectors / Coaxial Connectors 4.3-10RA PLUG,SCREW SOLDER,1-2SF CABLE
RF Connectors / Coaxial Connectors 4.3-10RA PLUG,SCREW SOLDER,1-2SF CABLE
RF Connectors / Coaxial Connectors 4.3-10RA PLUG,SCREW SOLDER,1-2SF CABLE
| Part | Number of Ports | Shield Termination | Impedance | Connector Type | Mounting Type | Cable Group | Cable Group Size | Housing Color | Frequency - Max | Contact Termination | Fastening Type | Center Contact Material | Connector Style | Mounting Feature | Voltage Rating | Mating Cycles | Body Material | Body Finish | Operating Temperature (Min) | Operating Temperature (Max) | Center Contact Plating | Dielectric Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1 | Solder | 50 Ohm | Male Pin Plug | Free Hanging (In-Line) Right Angle | Super Flex Coaxial | 0.5 in | Silver | 6000 MHz | Solder | Threaded | Brass | 4.3/10 | |||||||||
 TE Connectivity AMP Connectors | 1 | Solder | 50 Ohm | Female Socket Jack | Panel Mount | Silver | 6000 MHz | Solder | Threaded | Bronze | 4.3/10 | Flange | ||||||||||
 TE Connectivity AMP Connectors | 1 | Solder | 50 Ohm | Male Pin Plug | Free Hanging (In-Line) | Super Flex Coaxial | 0.5 in | Silver | 6000 MHz | Solder | Threaded | Brass | 4.3/10 | 2.5 kV | 100 cycles | Brass | White Bronze | -40 °C | 85 °C | Silver | Polytetrafluoroethylene (PTFE) | |
 TE Connectivity AMP Connectors | 1 | Clamp | 50 Ohm | Male Pin Plug | Free Hanging (In-Line) Right Angle | Super Flex Coaxial | 0.5 in | Silver | 6000 MHz | Crimp Solder | Threaded | Bronze | 4.3/10 |
