2358990 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

SENSOR CONNECTOR, PG7, M12, FEMALE, 4 POSITIONS, CRIMP SOCKET - CONTACTS NOT SUPPLIED

Part	Type	Primary Material	Contact Type	Shell Size - Insert	Shell Finish	Fastening Type	Features	Mounting Type	Shielding	Shell Material	Connector Type	Ingress Protection Description	Ingress Protection IP Rating	Number of Positions	Material Flammability Rating	Housing Color	Orientation	Note	Contact Shape	Operating Temperature (Min)	Operating Temperature (Max)	Insert Material
TE Connectivity AMP Connectors 2358990-3	For Female Sockets	Metal	Crimp	M12-4	Nickel	Threaded	Backshell Coupling Nut Railway (EN45545 IEC61373)	Free Hanging (In-Line)	Shielded	Brass	Receptacle Housing	Dust Tight Waterproof	IP67	4	UL94 V-0	Silver	D	Contacts Not Included	Circular	-40 °C	85 °C	Nylon PA Polyamide

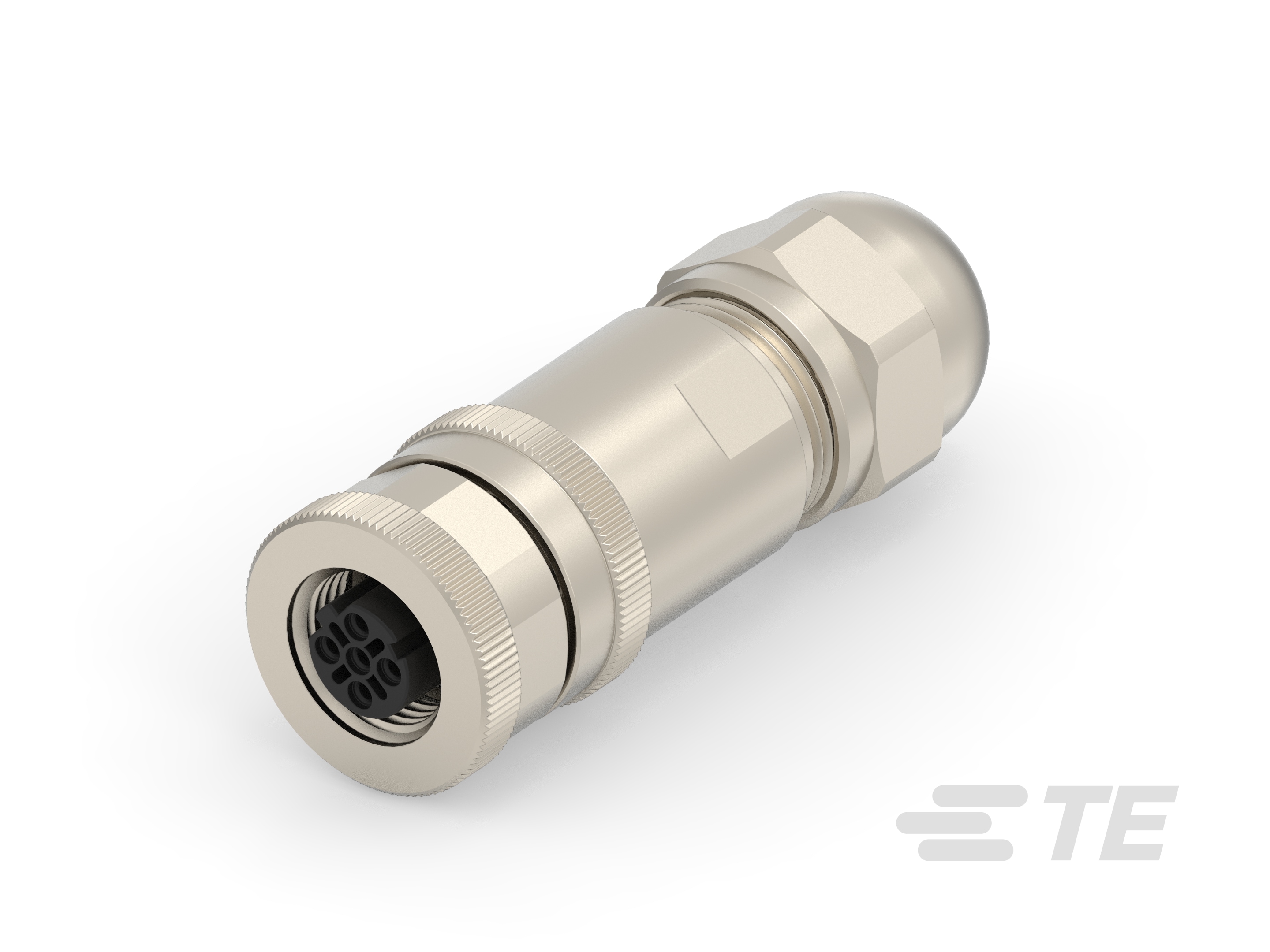

TE Connectivity AMP Connectors 2358990-4	For Female Sockets	Metal	Crimp	M12-4	Nickel	Threaded	Backshell Coupling Nut Railway (EN45545 IEC61373)	Free Hanging (In-Line)	Shielded	Brass	Receptacle Housing	Dust Tight Waterproof	IP67	4	UL94 V-0	Silver	D	Contacts Not Included	Circular	-40 °C	85 °C	Nylon PA Polyamide
TE Connectivity AMP Connectors 2358990-2	For Female Sockets	Metal	Crimp	M12-4	Nickel	Threaded	Backshell Coupling Nut Railway (EN45545 IEC61373)	Free Hanging (In-Line)	Shielded	Brass	Receptacle Housing	Dust Tight Waterproof	IP67	4	UL94 V-0	Silver	D	Contacts Not Included	Circular	-40 °C	85 °C	Nylon PA Polyamide
TE Connectivity AMP Connectors 2358990-1	For Female Sockets	Metal	Crimp	M12-4	Nickel	Threaded	Backshell Coupling Nut Railway (EN45545 IEC61373)	Free Hanging (In-Line)	Shielded	Brass	Receptacle Housing	Dust Tight Waterproof	IP67	4	UL94 V-0	Silver	D	Contacts Not Included	Circular	-40 °C	85 °C	Nylon PA Polyamide
