T 3629 Series

Catalog

MALE CABLE CONNECTOR WITH INTERN

Part	Cable Opening (Min)	Cable Opening (Max)	Connector Type	Operating Temperature (Max)	Operating Temperature (Min)	Current Rating	Voltage Rating	Shell Size - Insert	Ingress Protection	Orientation	Shielding	Contact Finish - Mating	Number of Positions	Insert Material	Primary Material	Applications	Fastening Type	Features	Mounting Type	Termination	Shell Finish	Color	Shell Material	Material Flammability Rating
McGill Microwave Systems T 3629 518	0.157 in	0.236 in	Male Pins Plug	100 °C	-40 °C	3 A	60 V	M16-12	IP40	Keyed	Unshielded	Gold	12	Thermoplastic	Metal	Industrial Instrumentation Marine Medical Testing Equipment & Measurement	Bayonet Lock	Backshell Cable Clamp Coupling Nut Strain Relief	Free Hanging (In-Line)	Solder Cup	Nickel	Black	Zinc Die Cast	UL94 V-0

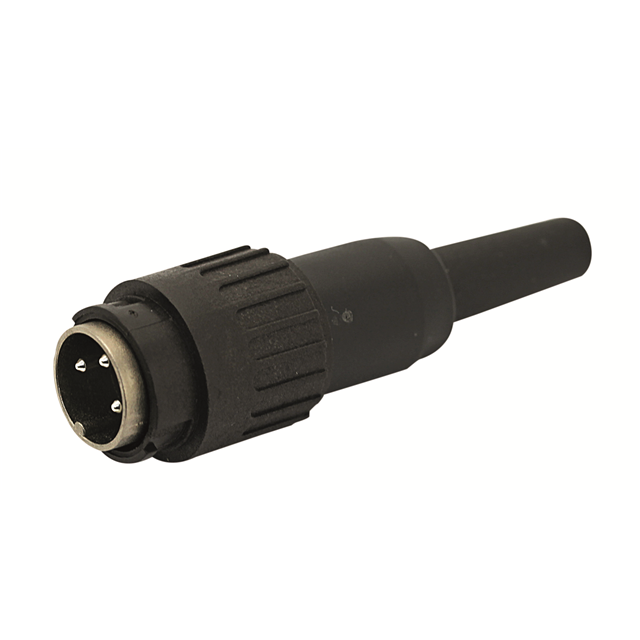

McGill Microwave Systems T 3629 501	0.157 in	0.236 in	Male Pins Plug	100 °C	-40 °C	3 A	60 V	M16-12	IP40	Keyed	Unshielded	Silver	12	Thermoplastic	Metal	Industrial Instrumentation Marine Medical Testing Equipment & Measurement	Bayonet Lock	Backshell Cable Clamp Coupling Nut Strain Relief	Free Hanging (In-Line)	Solder Cup	Nickel	Black	Zinc Die Cast	UL94 V-0

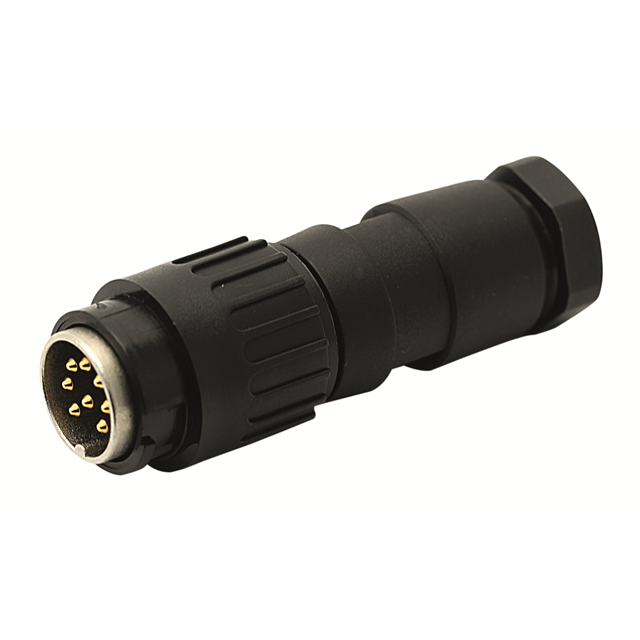

McGill Microwave Systems T 3629 502	0.236 in	0.315 in	Male Pins Plug	100 °C	-40 °C	3 A	60 V	M16-12	IP40	Keyed	Unshielded	Silver	12	Thermoplastic	Metal	Industrial Instrumentation Marine Medical Testing Equipment & Measurement	Bayonet Lock	Backshell Cable Clamp Coupling Nut	Free Hanging (In-Line)	Solder Cup	Nickel	Black	Zinc Die Cast	UL94 V-0
