T 3278 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

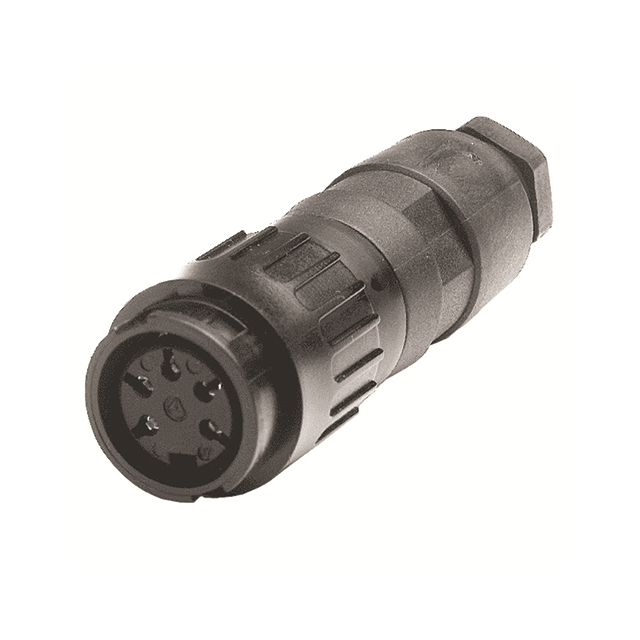

FEMALE CABLE CONNECTOR WITH INTE
| Part | Primary Material | Shielding | Features | Ingress Protection | Cable Opening (Min) | Cable Opening (Max) | Number of Positions | Insert Material | Fastening Type | Termination | Current Rating | Material Flammability Rating | Color | Operating Temperature (Max) | Operating Temperature (Min) | Shell Material | Shell Size - Insert | Contact Finish - Mating | Voltage Rating | Shell Finish | Applications | Mounting Type | Orientation | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Metal | Unshielded | Backshell Cable Clamp | IP40 | 0.157 in | 0.236 in | 3 | Thermoplastic | Bayonet Lock | Solder Cup | 10 A | UL94 V-0 | Black | 100 °C | -40 °C | Zinc Die Cast | M16-3 | Silver | 250 V | Nickel | Industrial Instrumentation Marine Medical Testing Equipment & Measurement | Free Hanging (In-Line) | Keyed | Female Sockets Plug |
