SF1115 Series

Catalog

CONN ADAPT SMA JCK TO 2.92MM PLG

Part	Center Contact Material	Dielectric Material	Body Material	Mating Cycles	Frequency - Max	Impedance	Convert To (Adapter End) Precision	Convert To (Adapter End) Type	Convert To (Adapter End) Model	Convert To (Adapter End)	Convert To (Adapter End) Size	Conversion Type	Adapter Series Size	Adapter Series	Adapter Type	Style	Center Gender	Center Contact Plating	Fastening Type	Mounting Type	Convert From (Adapter End)	Operating Temperature (Min)	Operating Temperature (Max)	Features	Body Finish	Convert To (Adapter End) Gender	Convert From (Adapter End) Jack Size	Convert From (Adapter End) Type	Mounting Feature	Insertion Loss	Includes	Includes Total Count

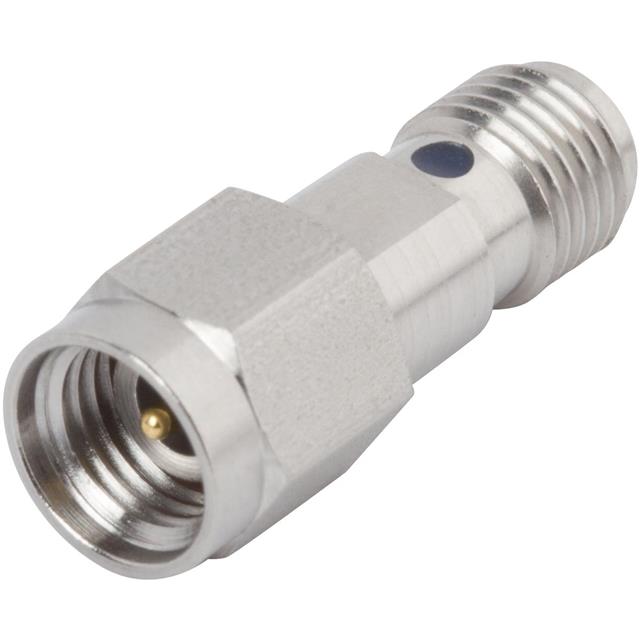

McGill Microwave Systems SF1115-6009	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Stainless Steel	500 cycles	26.5 GHz	50 Ohm	2.92 mm	Male Pin Plug	OS-2.9	(OS-2.9) Plug Male Pin Plug	2.92 mm	Between Series	2.92 mm	SMA	Plug to Jack	Straight	Female Male	Gold	Threaded	Free Hanging (In-Line)	Female Socket SMA Jack

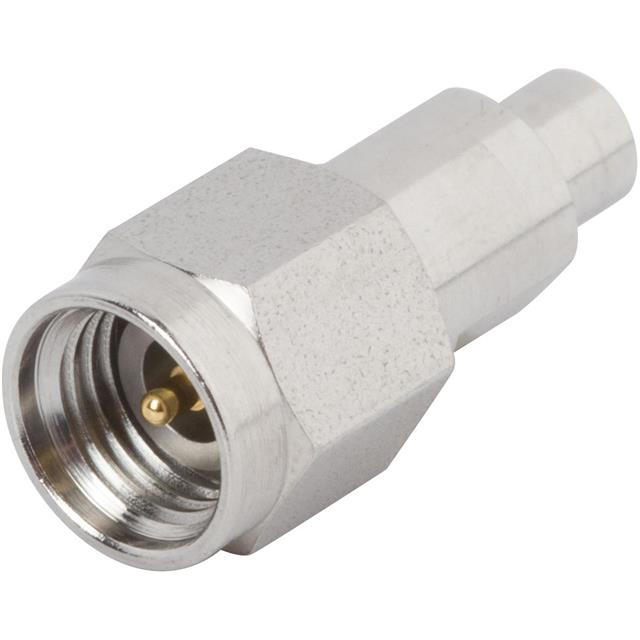

McGill Microwave Systems SF1115-6087	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Stainless Steel	500 cycles	40 Gbps	50 Ohm	2.92 mm	Male Pin Plug	OS-2.9	(OS-2.9) Plug Male Pin Plug	2.92 mm	Between Series	2.92 mm	SMPM	Plug to Plug	Straight	Male	Gold	Snap-On Threaded	Free Hanging (In-Line)	Male Pin SMPM Plug	-65 °C	165 °C	Smooth Bore
McGill Microwave Systems SF1115-6091	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Beryllium Copper Stainless Steel	500 cycles	40 Gbps	50 Ohm	2.92 mm	Male Pin Plug	OS-2.9	(OS-2.9) Plug Male Pin Plug	2.92 mm	Between Series	2.92 mm	SMPS	Plug to Jack	Straight	Female Male	Gold	Snap-On Threaded	Free Hanging (In-Line)	Female Socket SMPS Jack	-65 °C	165 °C		Gold Passivated
McGill Microwave Systems SF1115-6089	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Stainless Steel	500 cycles	40 Gbps	50 Ohm	2.92 mm	Male Pin Plug	OS-2.9	(OS-2.9) Plug Male Pin Plug	2.92 mm	Between Series	2.92 mm	SMPS	Plug to Plug	Straight	Male	Gold	Snap-On Threaded	Free Hanging (In-Line)	Male Pin SMPS Plug	-65 °C	165 °C	Full Detent
McGill Microwave Systems SF1115-6005	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Stainless Steel	500 cycles	26.5 GHz	50 Ohm		SMA Jack				Between Series	2.92 mm	SMA	Jack to Jack	Straight	Female	Gold	Threaded	Free Hanging (In-Line)						Female Socket	2.92 mm	Female Socket

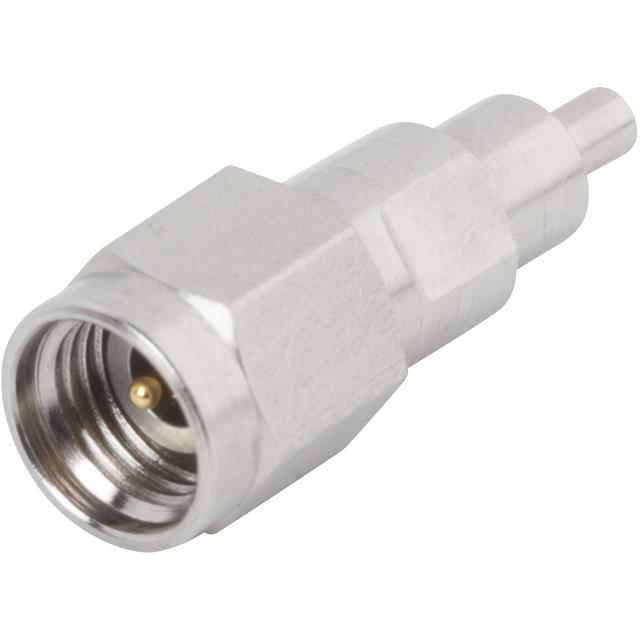

McGill Microwave Systems SF1115-6090	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Stainless Steel	500 cycles	40 Gbps	50 Ohm	2.92 mm	Male Pin Plug	OS-2.9	(OS-2.9) Plug Male Pin Plug	2.92 mm	Between Series	2.92 mm	SMPS	Plug to Plug	Straight	Male	Gold	Snap-On Threaded	Free Hanging (In-Line)	Male Pin SMPS Plug	-65 °C	165 °C	Smooth Bore

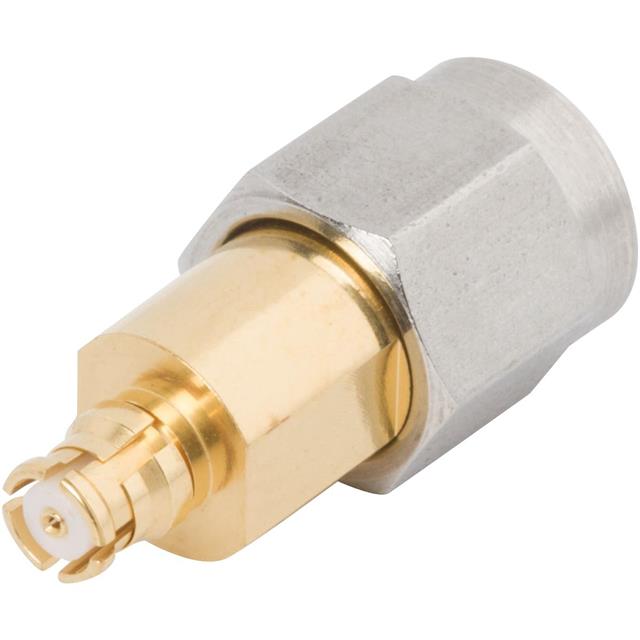

McGill Microwave Systems SF1115-6082	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Stainless Steel	500 cycles	40 Gbps	50 Ohm	2.92 mm	Male Pin Plug	OS-2.9	(OS-2.9) Plug Male Pin Plug	2.92 mm	Between Series	2.92 mm	SMP	Plug to Jack	Straight	Female Male	Gold	Snap-On Threaded	Free Hanging (In-Line)	Female Socket SMP Jack	-65 °C	165 °C
McGill Microwave Systems SF1115-6081	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Stainless Steel	500 cycles	40 Gbps	50 Ohm	2.92 mm	Male Pin Plug	OS-2.9	(OS-2.9) Plug Male Pin Plug	2.92 mm	Between Series	2.92 mm	SMP	Plug to Plug	Straight	Male	Gold	Snap-On Threaded	Free Hanging (In-Line)	Male Pin SMP Plug	-65 °C	165 °C	Full Detent
McGill Microwave Systems SF1115-6007	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Stainless Steel	500 cycles	26.5 GHz	50 Ohm		Jack	OS-2.9	Female Socket Jack	2.92 mm	Between Series	2.92 mm	SMA	Plug to Jack	Straight	Female Male	Gold	Threaded	Free Hanging (In-Line)	Male Pin SMA Plug					Female Socket
McGill Microwave Systems SF1115-6072	Beryllium Copper	Polyetherimide (PEI)	Stainless Steel	500 cycles	32 GHz 40 Gbps	50 Ohm		SVK Jack				Same Series		SVK to SVK	Jack to Jack	Straight	Female	Gold	Threaded	Panel Mount	Female Socket SVK Jack	-65 °C	165 °C	Hermetically Sealed		Female Socket			Bulkhead	0.04 dB	Connector Lockwasher Nut O-Ring	4 pcs
