618 Series

Catalog

CARTRIDGE FUSES 250V 5X20MM (P) T LBC 800MA

Part	DC Cold Resistance	Voltage Rating - AC	Size / Dimension Diameter	Size / Dimension Length	Approval Agency	Package Diameter	Package / Case	Package Length	Package Width	Fuse Type	Current Rating	Operating Temperature (Max)	Operating Temperature (Min)	Response Time	Melting I²t	Breaking Capacity	Mounting Type	Package / Case Interfaces	Package Name	Package Features
LITTELFUSE 0618.800MXP	0.0813 Ohms	250 V	0.205 in	0.787 in	CCC CE CSA UR VDE	5 mm 20 mm	5mm x 20mm	5 mm	20 mm	Cartridge Glass	800 mA	125 °C	-55 °C	Slow Blow	3.37	35 A	Requires Holder
LITTELFUSE 061801.6MXEP	0.0336 Ohms	250 V	0.217 in	0.846 in	CCC CE CSA UR VDE			5 mm	20 mm	Cartridge Glass	1.6 A	125 °C	-55 °C	Slow Blow	23.35	35 A	Through Hole	Axial	5mm x 20mm	Axial
LITTELFUSE 0618.630MXEP	0.275 Ohms	250 V	0.217 in	0.846 in	CCC CE CSA UR VDE			5 mm	20 mm	Cartridge Glass	0.63 A	125 °C	-55 °C	Slow Blow	4.675	35 A	Through Hole	Axial	5mm x 20mm	Axial

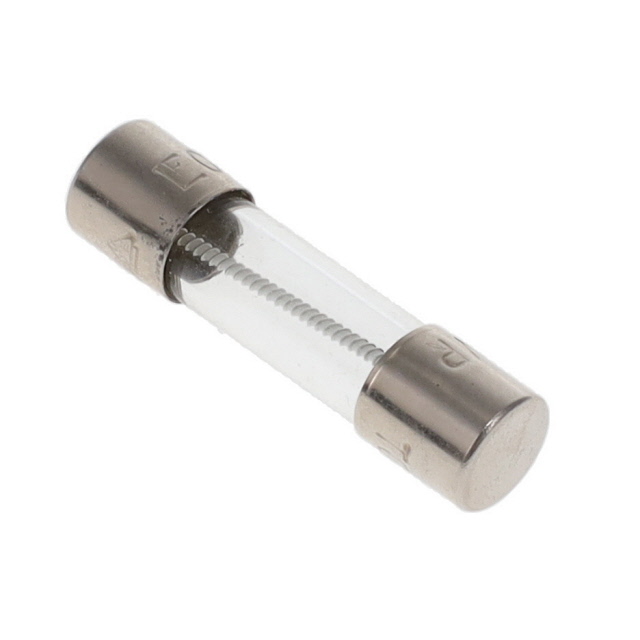

LITTELFUSE 0618.630MXP	0.275 Ohms	250 V	0.205 in	0.787 in	CCC CE CSA UR VDE	5 mm 20 mm	5mm x 20mm	5 mm	20 mm	Cartridge Glass	0.63 A	125 °C	-55 °C	Slow Blow	4.675	35 A	Requires Holder
LITTELFUSE 0618.250MXEP	1.0495 Ohms	250 V	0.217 in	0.846 in	CCC CE CSA UR VDE			5 mm	20 mm	Cartridge Glass	0.25 A	125 °C	-55 °C	Slow Blow	0.5405	35 A	Through Hole	Axial	5mm x 20mm	Axial
LITTELFUSE 06183.15MXEP	0.0173 Ohms	250 V	0.217 in	0.846 in	CCC CE CSA UR VDE			5 mm	20 mm	Cartridge Glass	3.15 A	125 °C	-55 °C	Slow Blow	38.15	35 A	Through Hole	Axial	5mm x 20mm	Axial
LITTELFUSE 0618001.MXEP	0.0613 Ohms	250 V	0.217 in	0.846 in	CCC CE CSA UR VDE			5 mm	20 mm	Cartridge Glass	1 A	125 °C	-55 °C	Slow Blow	6.73	35 A	Through Hole	Axial	5mm x 20mm	Axial
LITTELFUSE 0618.800MXEP	0.0813 Ohms	250 V	0.217 in	0.846 in	CCC CE CSA UR VDE			5 mm	20 mm	Cartridge Glass	800 mA	125 °C	-55 °C	Slow Blow	3.37	35 A	Through Hole	Axial	5mm x 20mm	Axial
