EZ-1200 Series

Catalog

7/8 EIA FLANGE CLAMP RIGHT ANGLE

Part	Cable Group	Ingress Protection Description	Ingress Protection IP Rating	Shield Termination	Number of Ports	Connector Type	Contact Termination	Center Contact Material	Impedance	Fastening Type	Housing Color	Connector Style	Mounting Feature	Mounting Type	Frequency - Max	Body Finish	Mating Cycles	Body Material	Dielectric Material	Operating Temperature (Min)	Operating Temperature (Max)	Center Contact Plating	Insertion Loss	Voltage Rating
McGill Microwave Systems EZ-1200-78EIA-RA-2	LMR-1200	Dust Tight Waterproof	IP67	Clamp	1	Male Pin Plug	Push On	Brass	50 Ohm	Push-Pull	Silver	7/8 EIA	Flange	Panel Mount Right Angle	500 MHz	White Bronze	500 cycles	Brass	Polytetrafluoroethylene (PTFE)	-40 °C	85 °C	Silver	0.05 dB
McGill Microwave Systems EZ-1200-78EIA-2	LMR-1200	Dust Tight Waterproof	IP67	Clamp	1	Male Pin Plug	Push On	Brass	50 Ohm	Push-Pull	Silver	7/8 EIA	Flange	Panel Mount	500 MHz	White Bronze		Brass	Polytetrafluoroethylene (PTFE)	-55 °C	155 °C	Silver	0.05 dB
McGill Microwave Systems EZ-1200-NFC-PL-2	LMR-1200			Clamp	1	Male Pin Plug	Press-Fit	Brass	50 Ohm	Threaded	Silver	N Type		Free Hanging (In-Line)	3 GHz	Silver		Brass	Polytetrafluoroethylene (PTFE)			Silver		1000 V

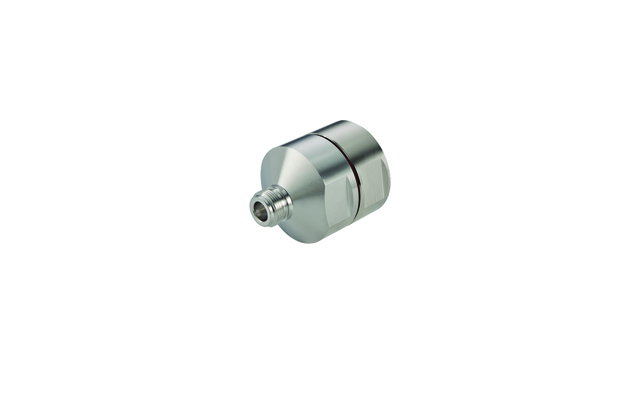

McGill Microwave Systems EZ-1200-NFC-2	LMR-1200			Clamp	1	Female Socket Jack	Push On		50 Ohm	Threaded	Silver	N Type		Free Hanging (In-Line)	2.5 GHz	White Bronze				-40 °C	85 °C
McGill Microwave Systems EZ-1200-NMC-PL-2	LMR-1200			Clamp	1	Male Pin Plug	Press-Fit	Phosphor Bronze	50 Ohm	Threaded	Silver	N Type		Free Hanging (In-Line)	6000 MHz	White Bronze	500 cycles	Brass	Polytetrafluoroethylene (PTFE)	-55 °C	85 °C	Silver		5000 V

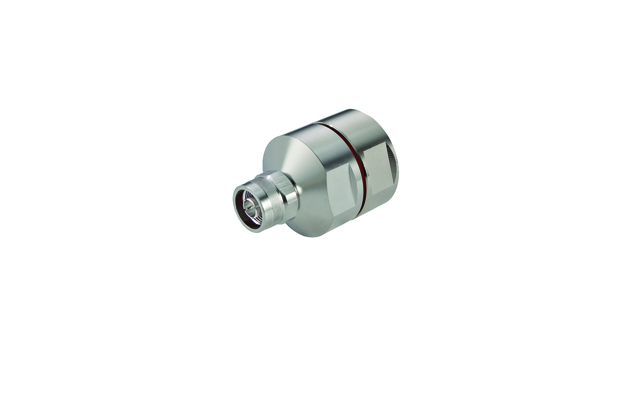

McGill Microwave Systems EZ-1200-NMC-2	LMR-1200			Clamp	1	Male Pin Plug	Push On		50 Ohm	Threaded	Silver	N Type		Free Hanging (In-Line)	2.5 GHz	White Bronze				-40 °C	85 °C
McGill Microwave Systems EZ-1200-716MC-2	LMR-1200	Dust Tight Waterproof	IP67	Clamp	1	Male Pin Plug	Push On	Beryllium Copper	50 Ohm	Threaded	Silver	7/16 DIN		Free Hanging (In-Line)	3 GHz	White Bronze		Brass	Polytetrafluoroethylene (PTFE)	-55 °C	155 °C	Gold	0.05 dB

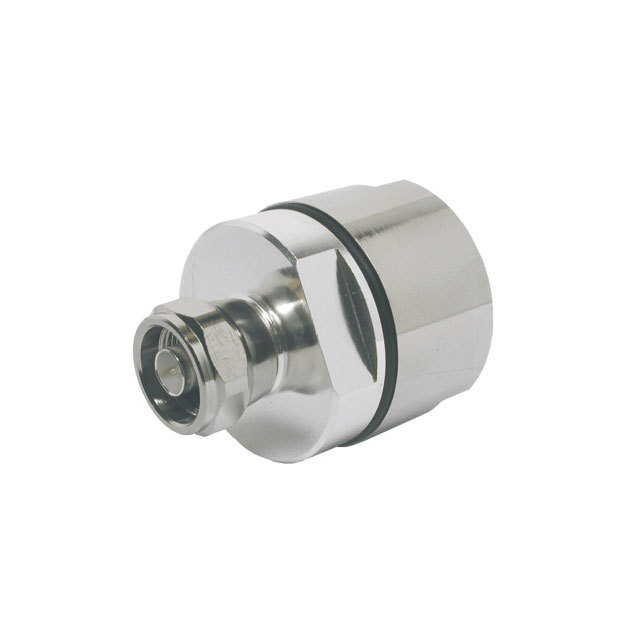

McGill Microwave Systems EZ-1200-NFC-PL	LMR-1200			Clamp	1	Male Pin Plug	Press-Fit	Brass	50 Ohm	Threaded	Silver	N Type		Free Hanging (In-Line)	3 GHz	Silver		Brass	Polytetrafluoroethylene (PTFE)	-5 °C	75 °C	Silver		1000 V
McGill Microwave Systems EZ-1200-716FC-2	LMR-1200	Dust Tight Waterproof	IP67	Clamp	1	Female Socket Jack	Push On	Beryllium Copper	50 Ohm	Threaded	Silver	7/16 DIN		Free Hanging (In-Line)	3 GHz	White Bronze		Brass	Polytetrafluoroethylene (PTFE)	-55 °C	155 °C	Gold	0.05 dB
