ADF4158 Series

Catalog

DIRECT MODULATION/WAVEFORM GENERATING, 6.1 GHZFRACTIONAL-N FREQUENCY SYNTHESIZER

Part	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Input	Package Width	Package Name	Package Length	Type	Differential Input	Differential Output	Input Ratio	Output Ratio	Package / Case	Number of Circuits	Frequency - Max	Divider	Multiplier	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Output	PLL	Grade	Supplied Contents	Utilized IC / Part	Embedded	Contents	Primary Attributes	Function
Analog Devices Inc./Maxim Integrated ADF4158CCPZ-RL7	125 °C	-40 °C	Surface Mount	CMOS TTL	4 mm	24-LFCSP	4 mm	Fractional N Synthesizer (RF)	Yes	No	2	1	24-WFQFN Exposed Pad CSP	1	6.1 GHz	Yes	Yes	3.3 V	2.7 V	Clock	Yes
Analog Devices Inc./Maxim Integrated ADF4158CCPZ	125 °C	-40 °C	Surface Mount	CMOS TTL	4 mm	24-LFCSP	4 mm	Fractional N Synthesizer (RF)	Yes	No	2	1	24-WFQFN Exposed Pad CSP	1	6.1 GHz	Yes	Yes	3.3 V	2.7 V	Clock	Yes
Analog Devices Inc./Maxim Integrated ADF4158WCCPZ	125 °C	-40 °C	Surface Mount	CMOS TTL	4 mm	24-LFCSP	4 mm	Fractional N Synthesizer (RF)	Yes	No	2	1	24-WFQFN Exposed Pad CSP	1	6.1 GHz	Yes	Yes	3.3 V	2.7 V	Clock	Yes	Automotive

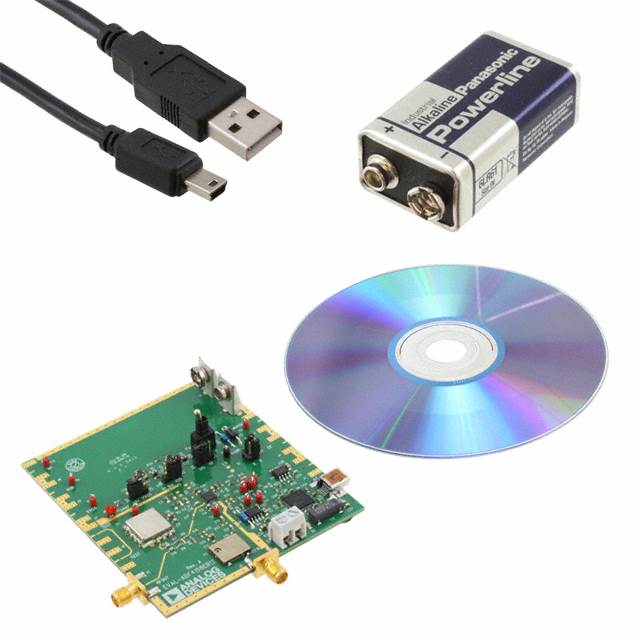

Analog Devices Inc./Maxim Integrated EVAL-ADF4158EB1Z								Timing															Board(s)	ADF4158	No	Board	Single Fractional-N PLL	Frequency Synthesizer
Analog Devices Inc./Maxim Integrated ADF4158WCCPZ-RL7	125 °C	-40 °C	Surface Mount	CMOS TTL	4 mm	24-LFCSP	4 mm	Fractional N Synthesizer (RF)	Yes	No	2	1	24-WFQFN Exposed Pad CSP	1	6.1 GHz	Yes	Yes	3.3 V	2.7 V	Clock	Yes	Automotive
