PLA Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
RECTANGULAR POWER CONNECTOR, 3 CONTACTS, PLA SERIES, PANEL PCB MOUNT, THROUGH HOLE STRAIGHT, 5 MM
| Part | Current Rating | Material Flammability Rating | Voltage Rating | Operating Temperature (Max) | Operating Temperature (Min) | Connector Style | Termination | Connector Type | Number of Rows | Number of Positions Loaded | Number of Positions | Pitch | Color | Contact Finish | Contact Finish Thickness | Contact Finish Thickness (string set options) | Contact Finish Thickness | Mounting Type | Style | Contact Finish Thickness - Mating | Contact Material | Contact Finish - Mating | Contact Shape | Contact Finish - Post | Shrouding | Insulation Material | Insulation Color | Contact Length - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post (string_set) | Fastening Type | Contact Type | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

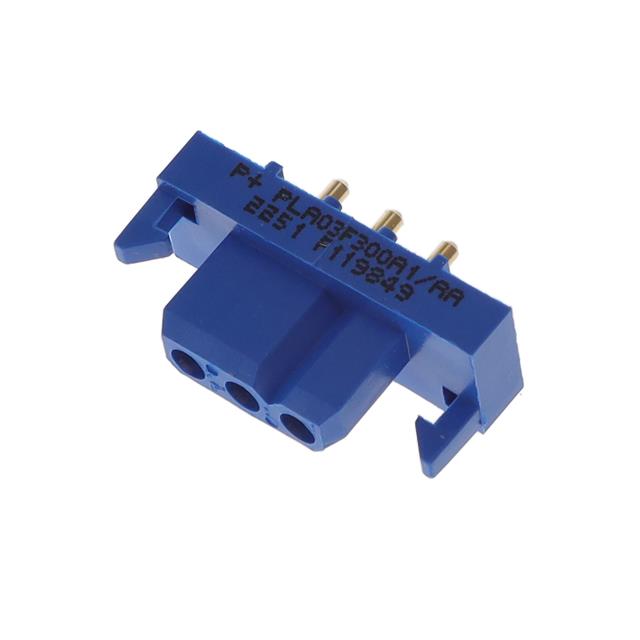

 McGill Microwave Systems | 32 A | UL94 V-0 | 600 V | 125 °C | -55 °C | Power | Solder | Female Sockets Receptacle | 1 | All | 3 | 0.197 in | Blue | Gold | 0 | Flash | Flash | Through Hole | |||||||||||||||

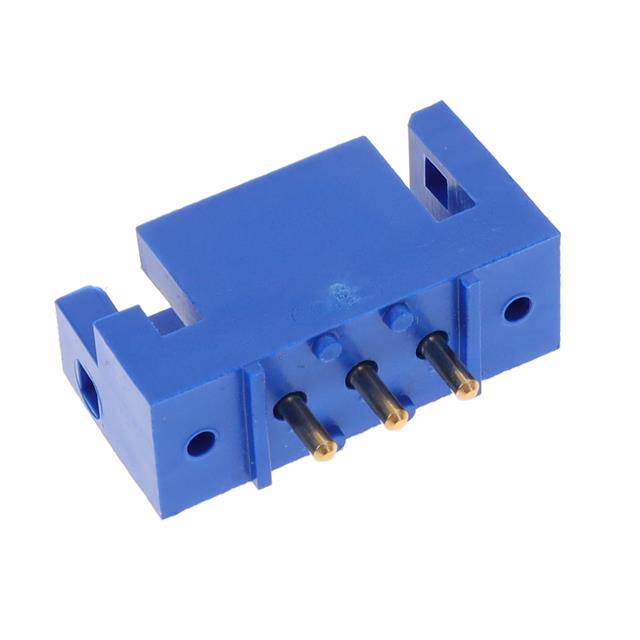

 McGill Microwave Systems | 32 A | UL94 V-0 | 600 V | 125 °C | -55 °C | Power | Solder | Header Male Pins | 1 | All | 3 | 0.197 in | Blue | Gold | 0 | Flash | Flash | Through Hole | |||||||||||||||
McGill Microwave Systems | 32 A | 600 V | 125 °C | -55 °C | Power | Solder | Header Male Pins | 1 | All | 3 | 0.197 in | Blue | Gold | 0 | Flash | Flash | Through Hole | Board Board or Cable | Flash | Copper Alloy | Gold | Circular | Gold | Shrouded - 2 Wall | Glass Filled Polyester | Blue | 0.146 in | Flash | Flash | Latch Lock | Male Pin | 0.6 in |
