263 Series

Catalog

FUSES WITH LEADS - THROUGH HOLE 250V 2.5A PICO II FAST ACTING

Part	Melting I²t	Size / Dimension Length	Size / Dimension Diameter	Operating Temperature (Max)	Operating Temperature (Min)	Response Time	Fuse Type	Package / Case	Voltage Rating - AC	Mounting Type	Approval Agency	Breaking Capacity	Current Rating	DC Cold Resistance
LITTELFUSE 026302.5WAT1L	1.197	0.28 in	0.155 in	125 °C	-55 °C	Fast Blow	Board Mount (Cartridge Style Excluded)	Axial	250 V	Through Hole	CSA PSE UR	50 A	2.5 A
LITTELFUSE 026301.5MXL	0.398	0.28 in	0.155 in	125 °C	-55 °C	Fast Blow	Board Mount (Cartridge Style Excluded)	Axial	250 V	Through Hole	CSA PSE UR	50 A	1.5 A
LITTELFUSE 0263.250WAT1L	0.0165	0.28 in	0.155 in	125 °C	-55 °C	Fast Blow	Board Mount (Cartridge Style Excluded)	Axial	250 V	Through Hole	CSA UR	50 A	0.25 A

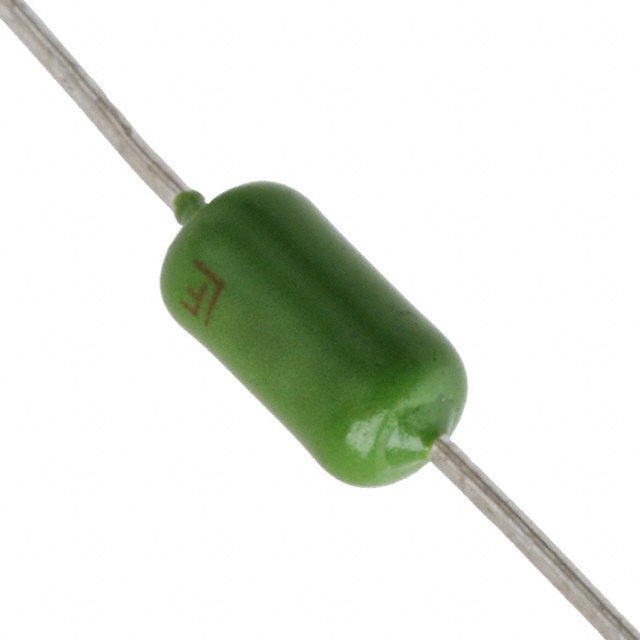

LITTELFUSE 026302.5HAT1L	1.197	0.28 in	0.155 in	125 °C	-55 °C	Fast Blow	Board Mount (Cartridge Style Excluded)	Axial	250 V	Through Hole	CSA PSE UR	50 A	2.5 A	0.034 Ohms
LITTELFUSE 0263005.MXL	5.55	0.28 in	0.155 in	125 °C	-55 °C	Fast Blow	Board Mount (Cartridge Style Excluded)	Axial	250 V	Through Hole	CSA PSE UR	50 A	5 A	0.0145 Ohms
LITTELFUSE 0263005.HAT1L	5.55	0.28 in	0.155 in	125 °C	-55 °C	Fast Blow	Board Mount (Cartridge Style Excluded)	Axial	250 V	Through Hole	CSA PSE UR	50 A	5 A	0.0145 Ohms
