747301 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

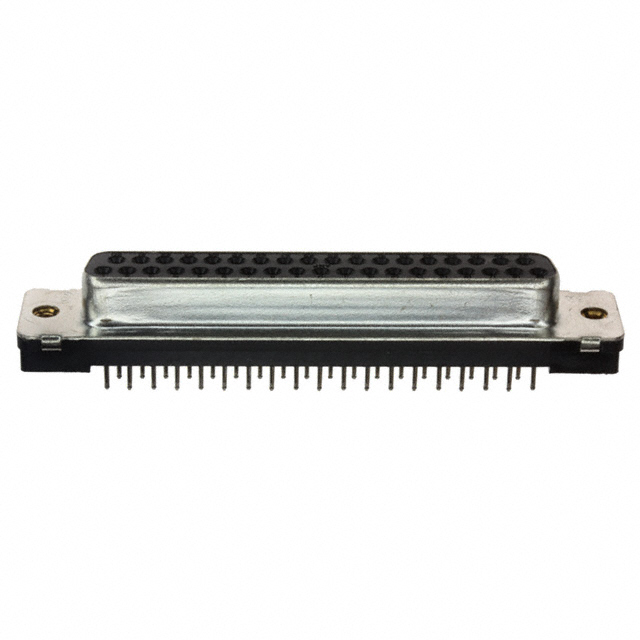

CONN D-SUB SKT 37 POS 1.38MM SOLDER ST THRU-HOLE 37 TERMINAL 1 PORT TUBE
| Part | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Shell Size, Connector Layout | Mounting Type | Contact Finish | Voltage Rating | Contact Material | Connector Style | Contact Type | Flange Feature | Number of Rows | Dielectric Material | Termination | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness | Color | Current Rating (Amps) | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 37 | 105 ░C | -55 °C | 4 (DC C) | Through Hole | Gold | 125 VDC | Phosphor Bronze | D-Sub | Signal | Housing/Shell (4-40) | 2 | Polyester | Solder | UL94 V-0 | 0.76 Ám | 30 Áin | Black | 6 A | Receptacle Female Sockets |
TE Connectivity Raychem Cable Protection | 37 | 105 ░C | -55 °C | 4 (DC C) | Through Hole | Gold | 125 VDC | Phosphor Bronze | D-Sub | Signal | Housing/Shell (Unthreaded) | 2 | Polyester | Solder | UL94 V-0 | 0.76 Ám | 30 Áin | Black | 6 A | Receptacle Female Sockets |
