HG11 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

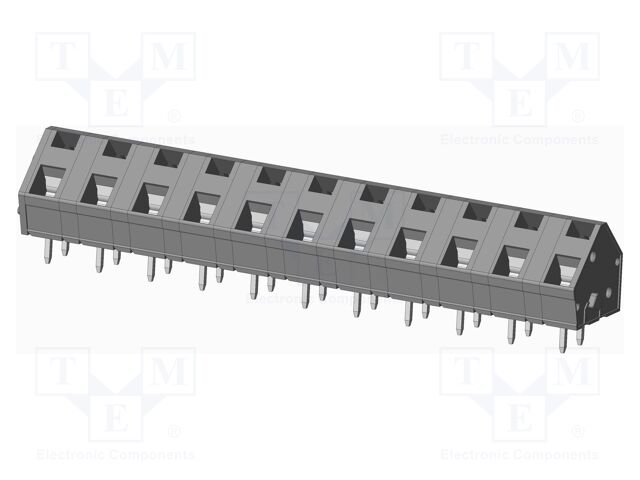

TERM BLK 11POS 45DEG 7.62MM PCB
| Part | Contact Material | Plating | Clamp Material - Plating | Operating Temperature (Min) | Operating Temperature (Max) | Housing Material | Mating Orientation (Angle) | Mating Orientation (Description) | Mating Orientation (Angle) (Alternate) | Number of Levels | Voltage | Pitch | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Features | Color | Wire Termination | Mounting Type | Current | Positions Per Level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Brass | Tin Plated | Steel Stainless | -40 °C | 115 °C | Thermoplastic | 45 ° | Angle with Board | 135 ° | 1 | 300 V | 0.3 in | 28 AWG | 12 AWG | Interlocking (Side) | Gray | Leg Spring Push-In Spring Screwless | Through Hole | 15 A | 11 |
McGill Microwave Systems | Brass | Tin Plated | Steel Stainless | -40 °C | 115 °C | Thermoplastic | 45 ° | Angle with Board | 135 ° | 1 | 300 V | 0.394 in | 28 AWG | 12 AWG | Interlocking (Side) | Gray | Leg Spring Push-In Spring Screwless | Through Hole | 15 A | 11 |
 McGill Microwave Systems | Brass | Tin Plated | Steel Stainless | -40 °C | 115 °C | Thermoplastic | 45 ° | Angle with Board | 135 ° | 1 | 300 V | 0.295 in | 28 AWG | 12 AWG | Interlocking (Side) | Gray | Leg Spring Push-In Spring Screwless | Through Hole | 15 A | 11 |
McGill Microwave Systems | Brass | Tin Plated | Steel Stainless | -40 °C | 115 °C | Thermoplastic | 45 ° | Angle with Board | 135 ° | 1 | 300 V | 0.197 in | 28 AWG | 12 AWG | Interlocking (Side) | Gray | Leg Spring Push-In Spring Screwless | Through Hole | 15 A | 11 |
