ADN4612 Series

11.3 Gbps 12 × 12 Digital Crosspoint Switch

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

11.3 Gbps 12 × 12 Digital Crosspoint Switch

Part	Package / Case	Circuit	Type	Voltage Supply Source	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Independent Circuits	Operating Temperature (Min)	Operating Temperature (Max)	Package Name	Package Length	Package Width	Mounting Type

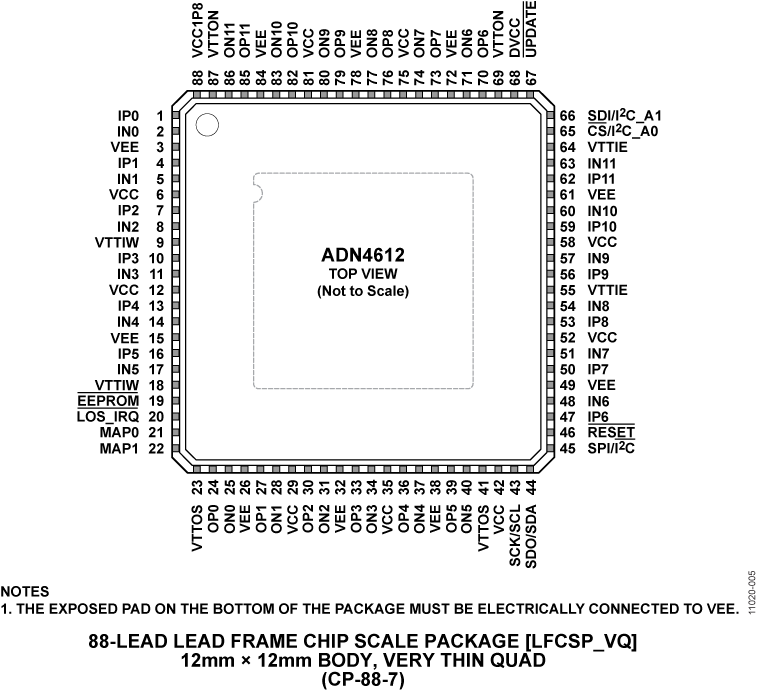

Analog Devices Inc./Maxim Integrated ADN4612ACPZ	88-VFQFN Exposed Pad CSP	1 x 12:12	Crosspoint Switch	Single Supply	3.6 V	1.7 V	1	-40 °C	85 °C	88-LFCSP	12 mm	12 mm	Surface Mount

Catalog

11.3 Gbps 12 × 12 Digital Crosspoint Switch

Description

The ADN4612 is a 12 × 12 asynchronous, protocol agnostic, digital crosspoint switch with 12 differential PECL-/CML-compatible inputs and 12 differential CML outputs.The ADN4612 is optimized for nonreturn-to-zero (NRZ) signaling with data rates of up to 11.3 Gbps per port. Each port provides programmable input equalization, loss of signal (LOS) detection, programmable output swing, and output preemphasis/deemphasis.The ADN4612 nonblocking switch core implements a 12 × 12 crossbar and supports independent channel switching through the serial control interface. The ADN4612 has low latency and very low channel-to-channel skew.The ADN4612 is packaged in an 88-lead LFCSP package and operates from −40°C to +85°C.ApplicationsFiber optic network switching10 Gigabit Ethernet over backplane 10GBASE-KR 802.3apXLAUI/CAUI (802.3ba)SONET OC-192/STM-64x1×, 2×, 4×, 8×, and 10× Fibre Channel
