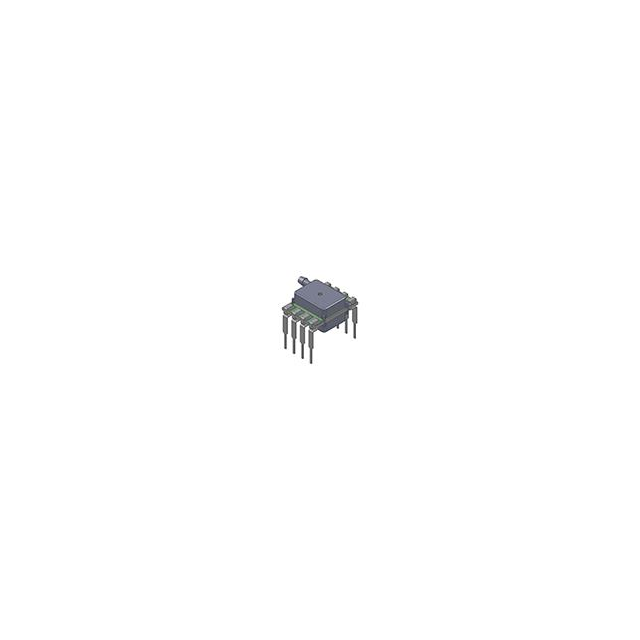

ELVH-150A Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
SENSOR 149.97PSIA 0.19"
| Part | Voltage - Supply | Package Length | Package Features | Package Name | Package Width | Port Diameter | Port Gender | Port Feature | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Termination Style | Pressure Type | Operating Pressure | Port Style | Mounting Type | Features | Accuracy | Maximum Pressure | Operating Temperature (Max) | Operating Temperature (Min) | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | 5 VDC | 0.524 in | Side Port | 8-DIP | 13.3 mm | 0.19 " | Male | Tube | 5.5 V | 2.7 V | PC Pin | Absolute | 150 PSI | Barbed | Through Hole | Temperature Compensated | 0.25 % | 250.05 PSI | 85 °C | -20 °C | Analog Voltage |
