ADL5315 Series

Catalog

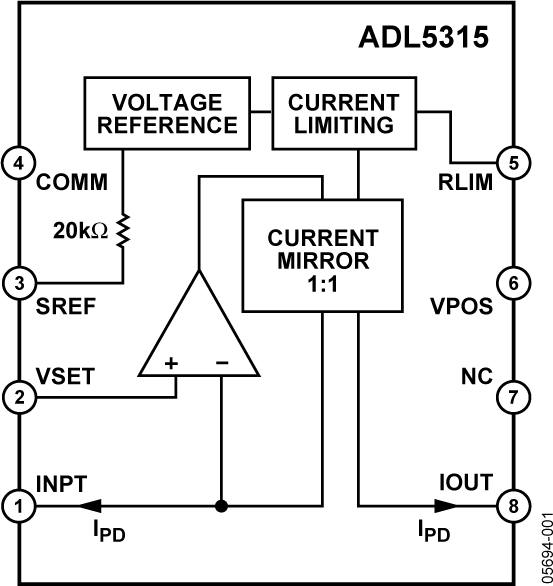

PRECISION WIDE-RANGE (3NA - 3 MA) HIGH-SIDE CURRENT MIRROR

Part	Mounting Type	Package / Case	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Input (Minimum)	Voltage - Input (Maximum)	Function	Sensing Method	Package Name	Package Width	Package Length	Supplied Contents	Type	Utilized IC / Part	Contents
Analog Devices Inc./Maxim Integrated ADL5315ACPZ-R7	Surface Mount	8-VFDFN Exposed Pad CSP	-40 °C	85 °C	2.7 V	8 V	Current Mirror	High-Side	8-LFCSP-VD	2 mm	3 mm
Analog Devices Inc./Maxim Integrated ADL5315-EVALZ							Voltage to Current					Board(s)	Interface	ADL5315	Board
Analog Devices Inc./Maxim Integrated ADL5315ACPZ-WP	Surface Mount	8-VFDFN Exposed Pad CSP	-40 °C	85 °C	2.7 V	8 V	Current Mirror	High-Side	8-LFCSP-VD	2 mm	3 mm
