OL Series

Catalog

TERM BLOCK HDR 4POS 3.50MM

Part	Insulation Height	Contact Tail Length	Contact Material	Housing Material	Material Flammability Rating	Mounting Type	Current - UL	Pitch	Number of Positions	Number of Levels	Voltage - UL	Operating Temperature (Min)	Operating Temperature (Max)	Contact Mating Finish	Header Orientation	Type	Termination Style	Positions Per Level

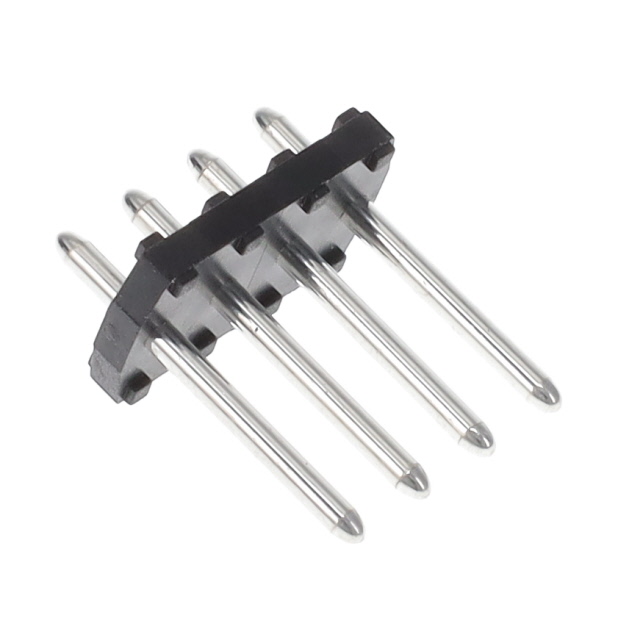

McGill Microwave Systems OL0410000000G	0.094 in	0.138 in	Brass	Thermoplastic	UL94 V-0	Through Hole	2 A	0.138 in	4	1	150 V	-40 °C	115 °C	Tin	Vertical	Header Male Pins Unshrouded	Solder	4

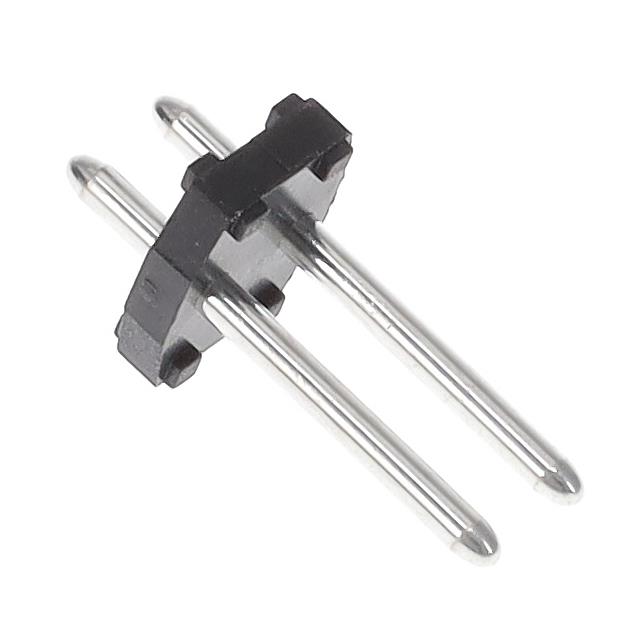

McGill Microwave Systems OL0210000000G	0.094 in	0.138 in	Brass	Thermoplastic	UL94 V-0	Through Hole	2 A	0.138 in	2	1	150 V	-40 °C	115 °C	Tin	Vertical	Header Male Pins Unshrouded	Solder	2
McGill Microwave Systems OL0310000000G	0.094 in	0.138 in	Brass	Thermoplastic	UL94 V-0	Through Hole	2 A	0.138 in	3	1	150 V	-40 °C	115 °C	Tin	Vertical	Header Male Pins Unshrouded	Solder	3
McGill Microwave Systems OL0610000000G	0.094 in	0.138 in	Brass	Thermoplastic	UL94 V-0	Through Hole	2 A	0.138 in	6	1	150 V	-40 °C	115 °C	Tin	Vertical	Header Male Pins Unshrouded	Solder	6
