nj Series

Catalog

CONNECTOR: PCB TERMINAL BLOCK; TERMINAL; NJ; PIN: 9; ON PCBS; 1X9

Part	Housing Material	Operating Temperature (Min)	Operating Temperature (Max)	Clamp Material - Plating	Wire Termination	Mating Orientation	Voltage	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Number of Levels	Current	Positions Per Level	Color	Mounting Type	Pitch
McGill Microwave Systems NJ0921500000G	Thermoplastic	-40 °C	115 °C	Steel Stainless	Leg Spring Push-In Spring Screwless	Horizontal with Board	300 V	16 AWG	24 AWG	1	10 A	9	Green	Through Hole	0.138 in
McGill Microwave Systems NJ2120500000G					Leg Spring Push-In Spring Screwless	Vertical with Board	300 V	16 AWG	24 AWG	1	10 A	21	Green	Through Hole	0.138 in
McGill Microwave Systems NJ0420500000G					Leg Spring Push-In Spring Screwless	Vertical with Board	300 V	16 AWG	24 AWG	1	10 A	4	Green	Through Hole	0.138 in

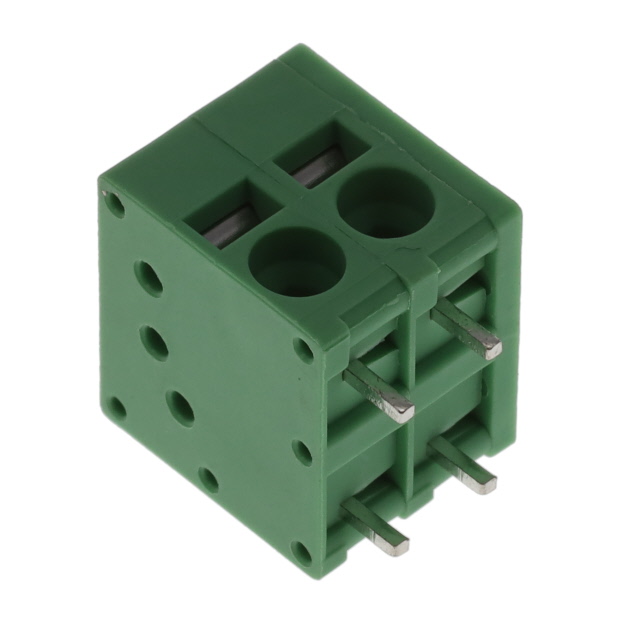

McGill Microwave Systems NJ0201500000G	Thermoplastic	-40 °C	115 °C	Steel Stainless	Leg Spring Push-In Spring Screwless	Horizontal with Board	300 V	12 AWG	24 AWG	1		2	Green	Through Hole	0.197 in
McGill Microwave Systems NJ1321500000G	Thermoplastic	-40 °C	115 °C	Steel Stainless	Leg Spring Push-In Spring Screwless	Horizontal with Board	300 V	16 AWG	24 AWG	1	10 A	13	Green	Through Hole	0.138 in

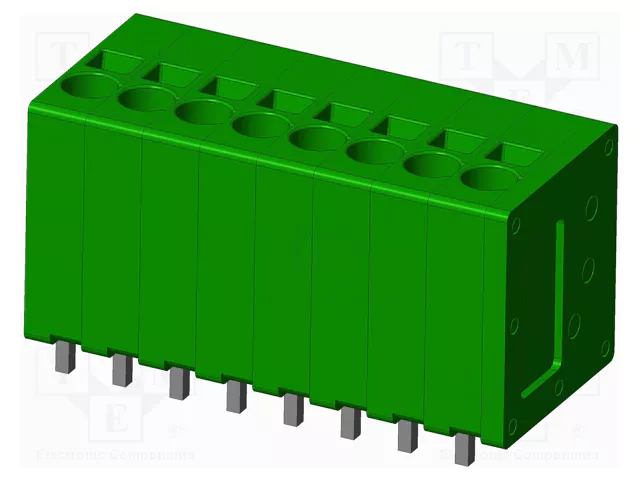

McGill Microwave Systems NJ0820500000G	Thermoplastic	-40 °C	115 °C	Steel Stainless	Leg Spring Push-In Spring Screwless	Vertical with Board	300 V	16 AWG	24 AWG	1	10 A	8	Green	Through Hole	0.138 in
McGill Microwave Systems NJ1121500000G					Leg Spring Push-In Spring Screwless	Horizontal with Board	300 V	16 AWG	24 AWG	1	10 A	11	Green	Through Hole	0.138 in

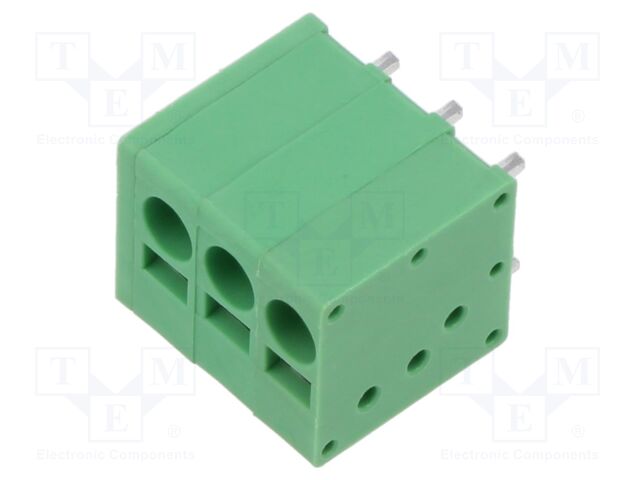

McGill Microwave Systems NJ0300500000G					Leg Spring Push-In Spring Screwless	Vertical with Board	300 V	12 AWG	24 AWG	1		3	Green	Through Hole	0.197 in
