ATHD Series

Catalog

AUTOMOTIVE CONNECTOR HOUSING, BLACK, ATHD SERIES, RECEPTACLE, 1 POSITIONS

Part	Mounting Feature	Termination	Shell Material	Color	Current Rating	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating	Primary Material	Number of Positions	Position Types	Mounting Type	Cable Opening (Min)	Cable Opening (Max)	Fastening Type	Connector Type	Shielding	Orientation	Ingress Protection IP Rating	Ingress Protection Description	Insert Material	Features	Applications	Contact Finish - Mating	Contact Material	1st Connector Gender	Assembly Configuration	1st Connector Mounting Type	Cable Type	1st Connector Number of Positions	Usage	Cable Material	1st Connector Number of Positions Loaded	2nd Connector Type	1st Connector Type	1st Connector Shell Size - Insert (Size)	Length
McGill Microwave Systems ATHD04-1-12P-PM05	Flange	Crimp	Thermoplastic	Black	25 A	125 °C	-55 °C	500 V	Plastic	1	Power	Panel Mount	0.134 in	0.17 in	Latch Lock	Male Pins Receptacle	Unshielded	Keyed	IP68	Dust Tight Waterproof

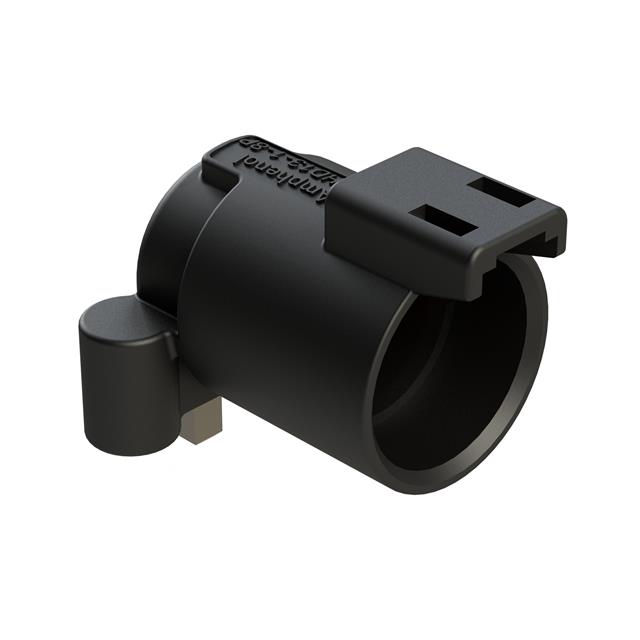

McGill Microwave Systems ATFHD13-1-8P-BM13		Solder	Thermoplastic	Black	60 A	125 °C	-55 °C	500 V	Plastic	1	Power	Right Angle Through Hole			Latch Lock	Male Pins Receptacle	Unshielded	Keyed	IP67 IP69K	Dust Tight Water Resistant Waterproof	Thermoplastic	Board Lock	Agriculture Marine Military Transportation	Nickel	Copper Alloy
McGill Microwave Systems ATHD04-1-4P-BM12		Solder	Thermoplastic	Black	100 A	125 °C	-55 °C	1000 V	Plastic	1		Through Hole			Push-Pull	Male Pins Receptacle	Unshielded	Keyed	IP68 IP69K	Dust Tight Water Resistant Waterproof		Board Lock		Gold

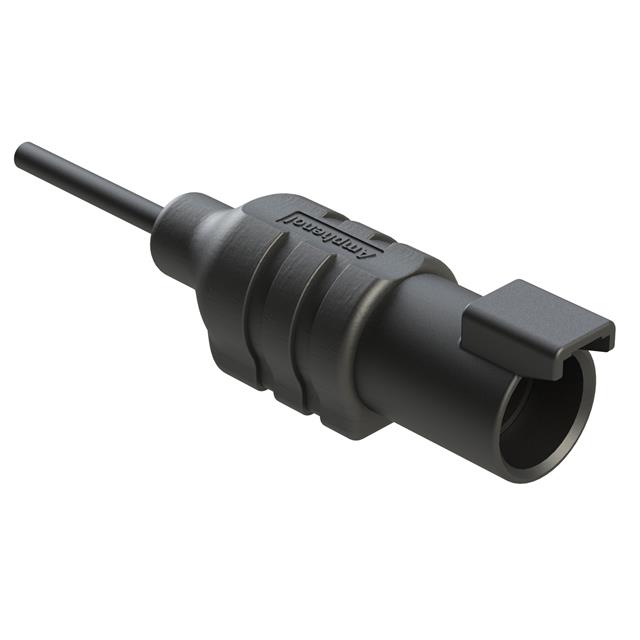

McGill Microwave Systems ATHD04-1-12P-12G-M1				Black													Unshielded		IP68	Dust Tight Waterproof						Male Pins	Standard	Free Hanging (In-Line)	Round	1 positions	Industrial Environments	Polyvinyl Chloride (PVC)	All	Wire Leads	Receptacle	12 mm	3.28 ft

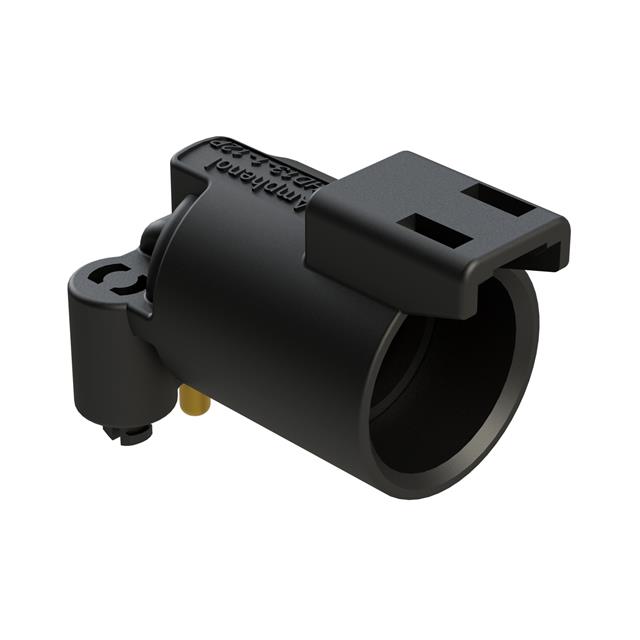

McGill Microwave Systems ATFHD13-1-12P-BM01		Solder	Thermoplastic	Black	25 A	125 °C	-55 °C	500 V	Plastic	1	Power	Right Angle Through Hole			Latch Lock	Male Pins Receptacle	Unshielded	Keyed	IP67 IP69K	Dust Tight Water Resistant Waterproof	Thermoplastic	Board Lock	Agriculture Marine Military Transportation	Gold	Copper Alloy
McGill Microwave Systems ATFHD13-1-8P-BM11		Solder	Thermoplastic	Black	60 A	125 °C	-55 °C	500 V	Plastic	1	Power	Right Angle Through Hole			Latch Lock	Male Pins Receptacle	Unshielded	Keyed	IP67 IP69K	Dust Tight Water Resistant Waterproof	Thermoplastic	Board Lock	Agriculture Marine Military Transportation	Gold	Copper Alloy
McGill Microwave Systems ATHD04-1-12P-PM11	Flange	Crimp	Thermoplastic	Black	25 A	125 °C	-55 °C	500 V	Plastic	1	Power	Panel Mount	0.134 in	0.17 in	Latch Lock	Male Pins Receptacle	Unshielded	Keyed	IP68	Dust Tight Waterproof
McGill Microwave Systems ATHD04-1-8P-BM11		Solder	Thermoplastic	Black	60 A	125 °C	-55 °C		Plastic	1		Through Hole			Push-Pull	Male Pins Receptacle	Unshielded	Keyed	IP68 IP69K	Dust Tight Water Resistant Waterproof		Board Lock		Gold
