97-3101A28 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT FMALE 22P SOLDER CUP

Part	Shell Material	Backshell Material	Plating	Operating Temperature (Max)	Operating Temperature (Min)	Orientation	Fastening Type	Applications	Shielding	Number of Positions	Features	Color	Shell Size - Insert Width	Shell Size - Insert Length	Mounting Type	Termination	Connector Type	Insert Material	Contact Finish - Mating	Contact Material	Shell Finish	Primary Material

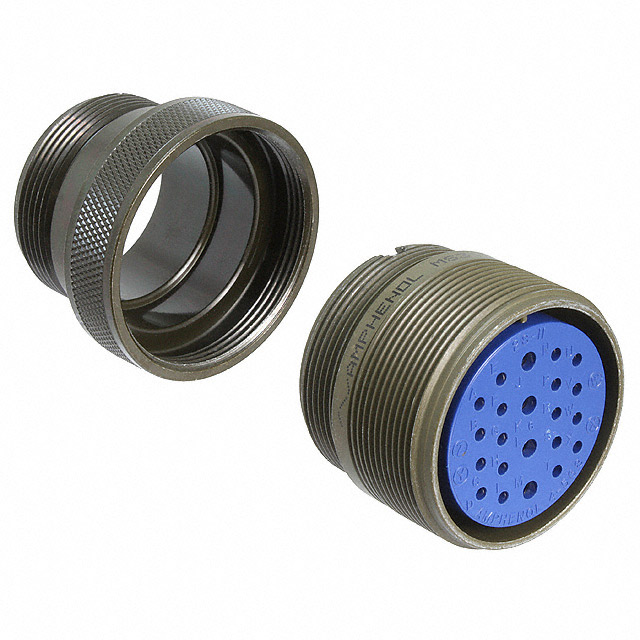

Amphenol Aerospace Operations 97-3101A-28-11S	Aluminum Alloy	Aluminum Alloy	Olive Drab Chromate over Cadmium	125 °C	-55 °C	N (Normal)	Threaded	Automotive Industrial	Unshielded	22	Backshell	Olive Drab	11 mm	28 mm	Free Hanging (In-Line)	Solder Cup	Female Sockets Receptacle	DAP Diallyl Phthalate	Silver	Copper Alloy	Cadmium Olive Drab Chromate	Metal
Amphenol Aerospace Operations 97-3101A-28-15P	Aluminum Alloy	Aluminum Alloy	Olive Drab Chromate over Cadmium	125 °C	-55 °C	N (Normal)	Threaded	Automotive Industrial	Unshielded	35	Backshell	Olive Drab	15 mm	28 mm	Free Hanging (In-Line)	Solder Cup	Male Pins Receptacle	DAP Diallyl Phthalate	Silver	Copper Alloy	Cadmium Olive Drab Chromate	Metal
Amphenol Aerospace Operations 97-3101A-28-11P	Aluminum Alloy	Aluminum Alloy	Olive Drab Chromate over Cadmium	125 °C	-55 °C	N (Normal)	Threaded	Automotive Industrial	Unshielded	22	Backshell	Olive Drab	11 mm	28 mm	Free Hanging (In-Line)	Solder Cup	Male Pins Receptacle	DAP Diallyl Phthalate	Silver	Copper Alloy	Cadmium Olive Drab Chromate	Metal
Amphenol Aerospace Operations 97-3101A-28-21P	Aluminum Alloy	Aluminum Alloy	Olive Drab Chromate over Cadmium	125 °C	-55 °C	N (Normal)	Threaded	Automotive Industrial	Unshielded	37 pos	Backshell	Olive Drab	21 mm	28 mm	Free Hanging (In-Line)	Solder Cup	Male Pins Receptacle	DAP Diallyl Phthalate	Silver	Copper Alloy	Cadmium Olive Drab Chromate	Metal
