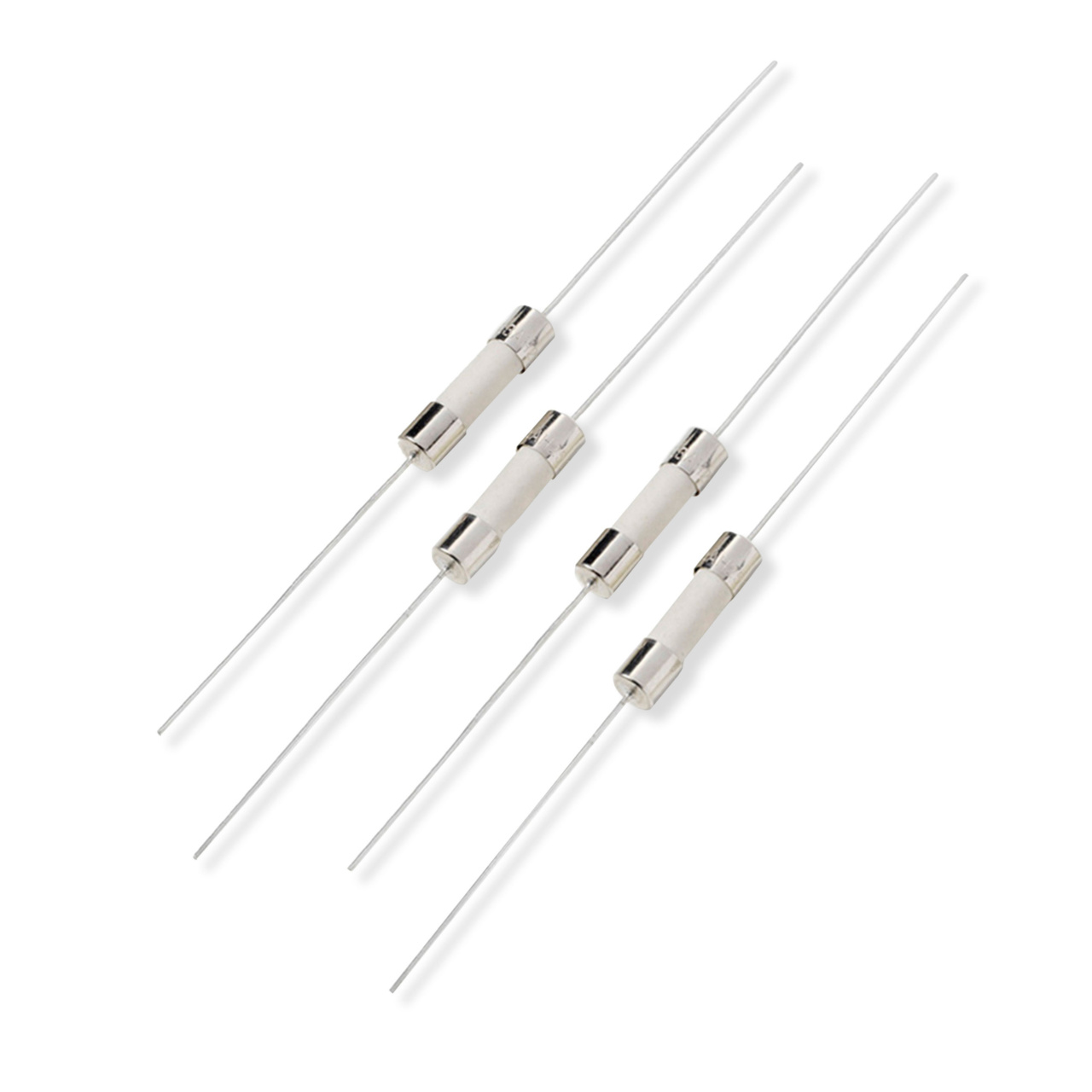

FUSE 250V 3AB TL Single PGT Pb-FREE 15A
Description
AI
The 3AB Slo-Blo® Fuse with ceramic body construction permits higher interrupting ratings and voltage ratings. Ideal for applications where high current loads are expected.
Beta
⌘K
FUSE 250V 3AB TL Single PGT Pb-FREE 15A
FUSE 250V 3AB TL Single PGT Pb-FREE 15A
| Part | DC Cold Resistance | Voltage Rating - DC | Package Length | Package Name | Package Features | Package Diameter | Package Width | Melting I²t | Voltage Rating - AC | Breaking Capacity (DC) | Breaking Capacity (AC) | Size / Dimension Length | Size / Dimension Diameter | Current Rating | Operating Temperature (Max) | Operating Temperature (Min) | Response Time | Mounting Type | Fuse Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LITTELFUSE | 0.005 Ohms | 125 V | 0.25 in 1.25 in | 3AB 3AG | Axial | 0.25 in | 1.25 in | 245 | 250 V | 600 A | 10 kA | 1.288 in | 0.275 in | 15 A | 125 °C | -55 °C | Slow Blow | Through Hole | Cartridge Ceramic | CE CSA KC PSE SEMKO TUV UR |
