NBN4-12 Series
Manufacturer: Pepperl+Fuchs, Inc.
Beta
⌘K

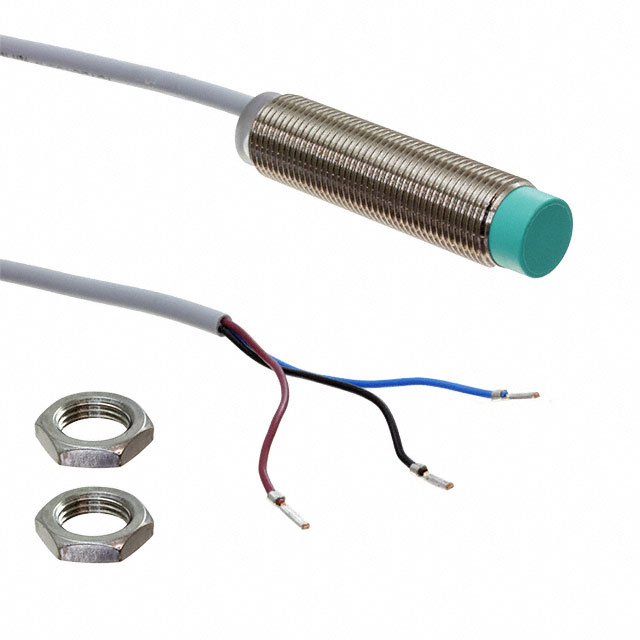

INDUCTIVE PROXIMITY SENSOR, BASIC SERIES, 4 MM, CYLINDRICAL, PNP, 10 TO 30 VDC, PRE-WIRED
| Part | Indicator | Sensing Distance | Operating Temperature (Max) | Operating Temperature (Min) | Output Type | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Package / Case | Sensor Type | Ingress Protection | Shielding | Termination Style | Material - Body |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pepperl+Fuchs, Inc. | LED | 0.157 " | 70 °C | -25 °C | 3-Wire PNP-NO | 10 VDC | 30 VDC | Cylinder Threaded - M12 | Inductive | IP67 | Unshielded | Cable | Nickel-Plated Brass |
 Pepperl+Fuchs, Inc. | LED | 0.157 " | 70 °C | -25 °C | 2-Wire SCR-NO | 5 V | 60 V | Cylinder Threaded - M12 | Inductive | IP67 | Unshielded | Connector | Nickel-Plated Brass |
 Pepperl+Fuchs, Inc. | LED | 0.157 " | 70 °C | -25 °C | 3-Wire NPN-NO | 10 VDC | 30 VDC | Cylinder Threaded - M12 | Inductive | IP67 | Unshielded | Cable | Nickel-Plated Brass |
 Pepperl+Fuchs, Inc. | LED | 0.157 " | 70 °C | -25 °C | 3-Wire PNP-NO | 10 VDC | 30 VDC | Cylinder Threaded - M12 | Inductive | IP67 | Unshielded | Connector | Nickel-Plated Brass |
 Pepperl+Fuchs, Inc. | LED | 0.157 " | 70 °C | -25 °C | 4-Wire NO PNP-NC | 10 VDC | 30 VDC | Cylinder Threaded - M12 | Inductive | IP67 | Unshielded | Connector | Nickel-Plated Brass |
