XC95288 Series

Catalog

IC CPLD 288MC 7.5NS 256FBGA

Part	Number of Macrocells	Operating Temperature (Max)	Operating Temperature (Min)	Number of Gates	Mounting Type	Package Width	Package Name	Package Length	Program/Erase Cycles (Minimum)	Programmable Type	Package / Case	Number of Logic Elements/Blocks	Number of I/O	Delay Time tpd(1) Max	Voltage Supply - Internal (Maximum)	Voltage Supply - Internal (Minimum)
AMD / Xilinx XC95288XL-7FG256I	288	85 °C	-40 °C	6400	Surface Mount	17 mm	256-FBGA	17 mm	10 K cycles	In System Programmable	256-BGA	16	192	7.5 ns	3.6 V	3 V
AMD / Xilinx XC95288XL-10PQG208C	288	70 °C	0 °C	6400	Surface Mount	28 mm	208-PQFP	28 mm	10 K cycles	In System Programmable	208-BFQFP	16	168	10 ns	3.6 V	3 V
AMD / Xilinx XC95288-20HQ208I	288	85 °C	-40 °C	6400	Surface Mount	28 mm	208-PQFP	28 mm	10 K cycles	In System Programmable	208-BFQFP Exposed Pad	16	168	20 ns	5.5 V	4.5 V
AMD / Xilinx XC95288-20BG352C	288	70 °C	0 °C	6400	Surface Mount	35 mm	352-MBGA	35 mm	10 K cycles	In System Programmable	352-LBGA Exposed Pad Metal	16	192	20 ns	5.25 V	4.75 V
AMD / Xilinx XC95288XL-7PQG208C	288	70 °C	0 °C	6400	Surface Mount	28 mm	208-PQFP	28 mm	10 K cycles	In System Programmable	208-BFQFP	16	168	7.5 ns	3.6 V	3 V
AMD / Xilinx XC95288-15BG352I	288	85 °C	-40 °C	6400	Surface Mount	35 mm	352-MBGA	35 mm	10 K cycles	In System Programmable	352-LBGA Exposed Pad Metal	16	192	15 ns	5.5 V	4.5 V
AMD / Xilinx XC95288-20BG352I	288	85 °C	-40 °C	6400	Surface Mount	35 mm	352-MBGA	35 mm	10 K cycles	In System Programmable	352-LBGA Exposed Pad Metal	16	192	20 ns	5.5 V	4.5 V

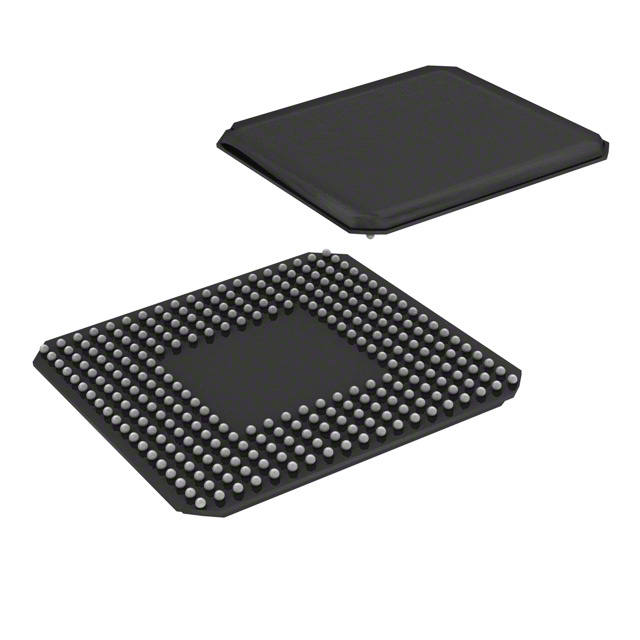

AMD / Xilinx XC95288XL-7CSG280I	288	85 °C	-40 °C	6400	Surface Mount	16 mm	280-CSBGA	16 mm	10 K cycles	In System Programmable	280-TFBGA CSPBGA	16	192	7.5 ns	3.6 V	3 V
AMD / Xilinx XC95288-10BG352C	288	70 °C	0 °C	6400	Surface Mount	35 mm	352-MBGA	35 mm	10 K cycles	In System Programmable	352-LBGA Exposed Pad Metal	16	192	10 ns	5.25 V	4.75 V
AMD / Xilinx XC95288XL-10FGG256C	288	70 °C	0 °C	6400	Surface Mount	17 mm	256-FBGA	17 mm	10 K cycles	In System Programmable	256-BGA	16	192	10 ns	3.6 V	3 V
