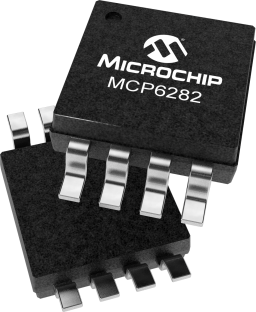

MCP6282 Series

Catalog

OPERATIONAL AMPLIFIER, DUAL, 5 MHZ, 2, 2.5 V/ S, 2.2V TO 5.5V, SOIC, 8 ROHS COMPLIANT: YES

Part	Number of Circuits	Voltage - Supply Span (Max)	Package Length	Package Name	Package Width	Operating Temperature (Max)	Operating Temperature (Min)	Current - Output / Channel	Mounting Type	Current - Supply	Amplifier Type	Output Type	Voltage - Input Offset	Voltage - Supply Span (Min)	Gain Bandwidth Product	Current - Input Bias	Slew Rate	Qualification	Grade
Microchip Technology MCP6282-E/SN	2	5.5 V	0.154 in	8-SOIC	3.9 mm	125 °C	-40 °C	25 mA	Surface Mount	450 µA	General Purpose	Rail-to-Rail	3 mV	2.2 V	5 MHz	1 pA	2.5 V/µs
Microchip Technology MCP6282-E/MS	2	5.5 V	0.118 in	8-MSOP 8-TSSOP 8-MSOP	3 mm	125 °C	-40 °C	25 mA	Surface Mount	450 µA	General Purpose	Rail-to-Rail	3 mV	2.2 V	5 MHz	1 pA	2.5 V/µs
Microchip Technology MCP6282T-E/MSVAO	2	5.5 V	0.118 in	8-MSOP 8-TSSOP 8-MSOP	3 mm	125 °C	-40 °C	25 mA	Surface Mount	450 µA	General Purpose	Rail-to-Rail	3 mV	2.2 V	5 MHz	1 pA	2.5 V/µs	AEC-Q100	Automotive
Microchip Technology MCP6282-E/P	2	5.5 V	0.3 in	8-DIP 8-PDIP	7.62 mm	125 °C	-40 °C	25 mA	Through Hole	450 µA	General Purpose	Rail-to-Rail	3 mV	2.2 V	5 MHz	1 pA	2.5 V/µs
Microchip Technology MCP6282T-E/MS	2	5.5 V	0.118 in	8-MSOP 8-TSSOP 8-MSOP	3 mm	125 °C	-40 °C	25 mA	Surface Mount	450 µA	General Purpose	Rail-to-Rail	3 mV	2.2 V	5 MHz	1 pA	2.5 V/µs
