V1S-G Series

Catalog

SENSOR CONNECTOR, M12, PLUG, 4 CONTACTS, SCREW PIN, STRAIGHT CABLE MOUNT

Part	Operating Temperature (Min)	Operating Temperature (Max)	Color	Shielding	Connector Type	Primary Material	Termination	Shell Material	Current Rating	Backshell Material, Plating	Material Flammability Rating	Contact Finish - Mating	Mounting Type	Contact Material	Number of Positions	Voltage Rating	Fastening Type	Ingress Protection Description	Ingress Protection IP Rating	Orientation	Features	Shell Size - Insert	Cable Opening (Max)	Cable Opening (Min)	Applications	Voltage Rating (Type)	Shell Finish
Pepperl+Fuchs, Inc. V1S-G-Q3	-25 °C	80 °C	Black	Unshielded	Male Pins Plug	Plastic	IDC	Nylon 6/6 Polyamide (PA66)	4 A	Nylon 6/6 Polyamide (PA66)	UL94 V-0	Gold	Free Hanging (In-Line)	Copper Tin	4	125 V	Threaded	Dust Tight Water Resistant Waterproof	IP65 IP67	Keyed	Backshell	M12-4	0.236 in	0.138 in	Industrial Automation

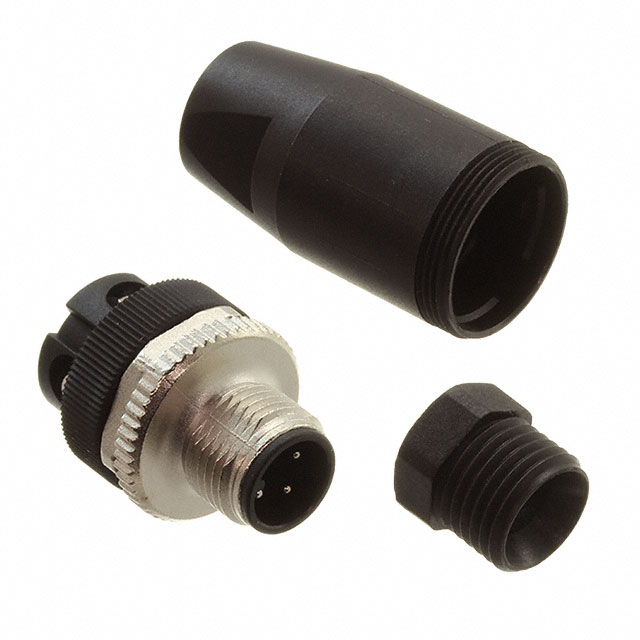

Pepperl+Fuchs, Inc. V1S-G-BK	-40 °C	85 °C	Black Silver	Unshielded	Male Pins Plug	Metal	Screw	Copper Zinc	4 A	Nylon Polyamide (PA)		Copper Tin Zinc	Free Hanging (In-Line)	Copper Zinc	4	250 V	Threaded	Dust Tight Waterproof	IP67	Keyed	Backshell	M12-4	0.236 in	0.157 in	Industrial Automation	DC

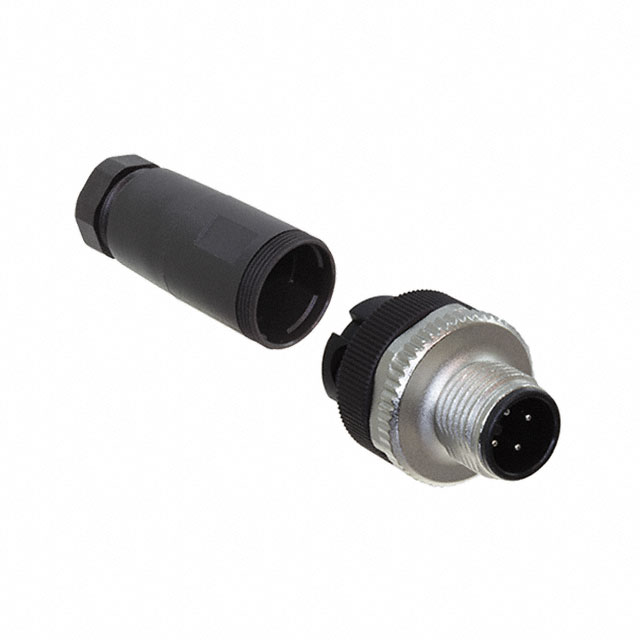

Pepperl+Fuchs, Inc. V1S-G-PG9	-25 °C	85 °C	Black Silver	Unshielded	Male Pins Plug	Metal	Screw	Copper Zinc	4 A	Nylon Polyamide (PA)		Copper Tin Zinc	Free Hanging (In-Line)	Copper Zinc	4	250 V	Threaded	Dust Tight Waterproof	IP67	Keyed	Backshell	M12-4	0.315 in	0.236 in	Industrial Automation	DC

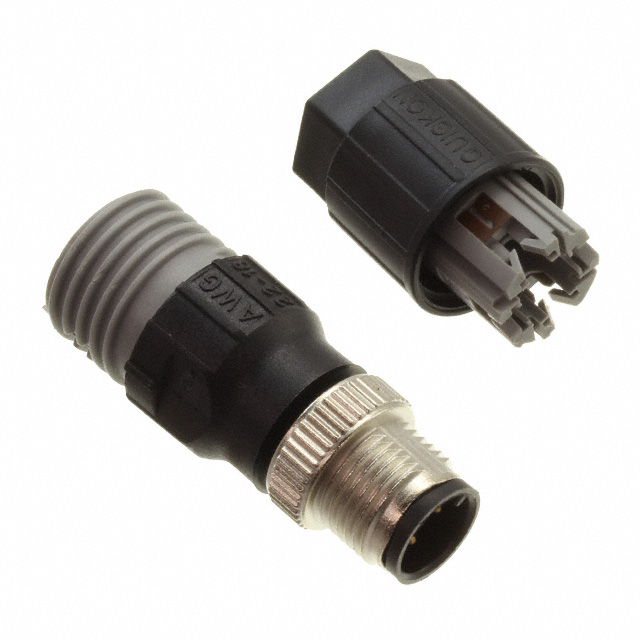

Pepperl+Fuchs, Inc. V1S-G-Q2	-25 °C	80 °C	Black Silver	Unshielded	Male Pins Plug	Metal	IDC	Zinc Die Cast	4 A	Nylon 6/6 Polyamide (PA66)	UL94 V-0	Gold	Free Hanging (In-Line)	Copper Tin	4	250 V	Threaded	Dust Tight Water Resistant Waterproof	IP65 IP67	Keyed	Backshell	M12-4	0.315 in	0.157 in	Industrial Automation		Nickel
