T 3638 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

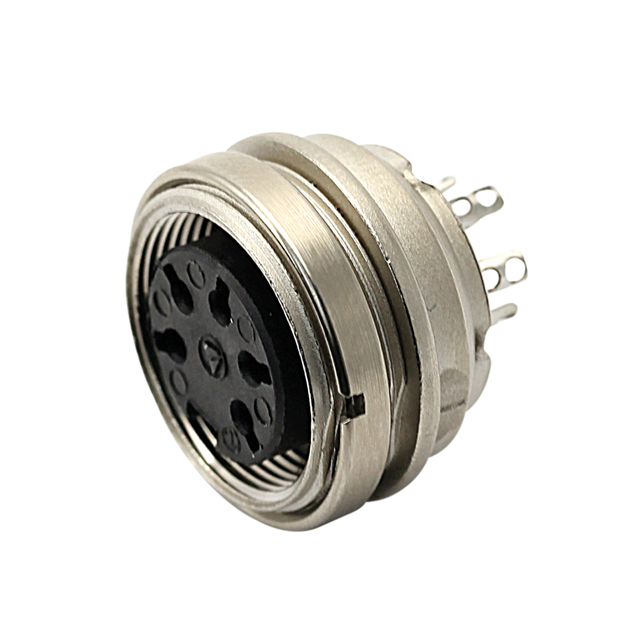

REAR MOUNTING FEMALE RECEPTACLE
| Part | Current Rating | Operating Temperature (Max) | Operating Temperature (Min) | Shell Finish | Fastening Type | Insert Material | Color | Applications | Shell Size - Insert | Orientation | Primary Material | Material Flammability Rating | Termination | Voltage Rating | Mounting Feature | Shell Material | Mounting Type | Contact Finish - Mating | Connector Type | Number of Positions | Shielding | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | 3 A | 100 °C | -40 °C | Nickel | Threaded | Thermoplastic | Silver | Industrial Instrumentation Marine Medical Testing Equipment & Measurement | M16-12 | Keyed | Metal | UL94 V-0 | Solder Cup | 60 V | Bulkhead Front Side Nut | Zinc Die Cast | Panel Mount | Gold | Female Sockets Receptacle | 12 | Shielded | IP40 |
