MA7CAE Series

Catalog

CONN PLUG FMALE 17POS CRIMP

Part	Current Rating	Contact Finish - Mating	Ingress Protection Description	Ingress Protection IP Rating	Fastening Type	Operating Temperature (Min)	Operating Temperature (Max)	Primary Material	Features	Shell Size - Insert	Shielding	Mounting Type	Shell Finish	Number of Positions	Connector Type	Voltage Rating	Voltage Rating (Type)	Termination	Orientation	Color	Shell Material	Note	Insert Material	Type	Material Flammability Rating	Contact Size	Contact Type	Housing Color	Contact Shape	Plating	Backshell Material	Applications	Contact Material	Cable Opening (Min)	Cable Opening (Max)
McGill Microwave Systems MA7CAE1700S-S3-KIT	9 A	Gold	Dust Tight Waterproof	IP67	Threaded	-20 °C	130 °C	Metal	Backshell Coupling Nut	M23-17	Shielded	Free Hanging (In-Line)	Nickel	17	Female Sockets Plug	125 V	DC	Crimp	N (Normal)	Silver	Zinc Die Cast
McGill Microwave Systems MA7CAE1200-S2-KIT	10 A	Gold	Dust Tight Waterproof	IP67	Threaded	-20 °C	130 °C	Metal	Backshell Coupling Nut	M23-12	Shielded	Free Hanging (In-Line)	Nickel	12	Male Pins Plug	160 V		Crimp	N (Normal)	Silver	Zinc Die Cast
McGill Microwave Systems MA7CAE1200-S2			Dust Tight Waterproof	IP67	Threaded	-20 °C	130 °C		Backshell Coupling Nut	M23-12	Shielded	Free Hanging (In-Line)	Nickel	12	Plug Housing				N (Normal)		Zinc Die Cast	Contacts Not Included	Nylon 6/6 PA66 Polyamide	For Female Sockets or Male Pins	UL94 V-0	1 mm	Crimp	Silver	Circular
McGill Microwave Systems MA7CAE1700-S2			Dust Tight Waterproof	IP67	Threaded	-20 °C	130 °C		Backshell Coupling Nut	M23-17	Shielded	Free Hanging (In-Line)	Nickel	17	Plug Housing				N (Normal)		Zinc Die Cast	Contacts Not Included	Nylon 6/6 PA66 Polyamide	For Female Sockets or Male Pins	UL94 V-0	1 mm	Crimp	Silver	Circular
McGill Microwave Systems MA7CAE1700-S3			Dust Tight Waterproof	IP67	Threaded	-20 °C	130 °C		Backshell Coupling Nut	M23-17	Shielded	Free Hanging (In-Line)	Nickel	17	Plug Housing				N (Normal)		Zinc Die Cast	Contacts Not Included	Nylon 6/6 PA66 Polyamide	For Female Sockets or Male Pins	UL94 V-0	1 mm	Crimp	Silver	Circular

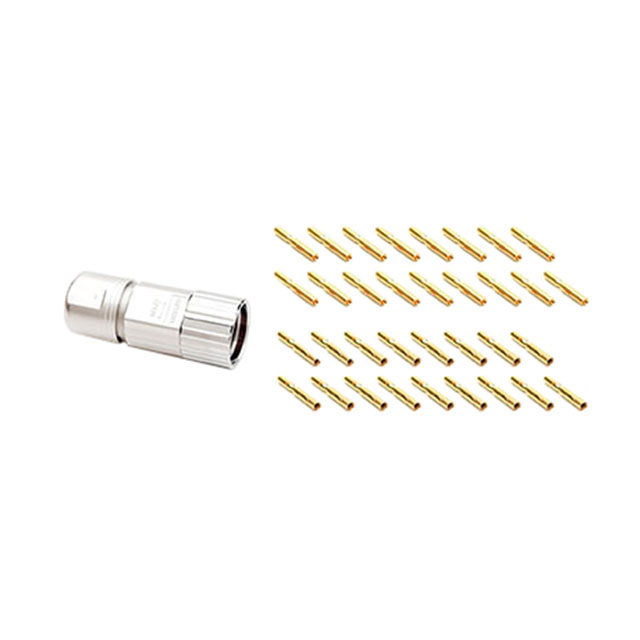

McGill Microwave Systems MA7CAE1700S-S1-KIT	9 A	Gold	Dust Tight Waterproof	IP67	Threaded	-20 °C	130 °C	Metal	Backshell Coupling Nut	M23-17	Shielded	Free Hanging (In-Line)	Nickel	17	Female Sockets Plug	125 V	DC	Crimp	N (Normal)	Silver	Zinc Die Cast
McGill Microwave Systems MA7CAE1600S-S2-KIT	9 A	Gold	Dust Tight Waterproof	IP67	Push-Twist	-20 °C	130 °C	Metal	Backshell Coupling Nut	M23-16	Shielded	Free Hanging (In-Line)	Nickel	16	Female Sockets Plug	125 V	DC	Crimp	E	Silver	Zinc Die Cast		Nylon 6/6 PA66 Polyamide		UL94 V-0					Nickel	Zinc Die Cast	Communication Systems Industrial Medical	Copper Alloy	0.295 in	0.433 in
McGill Microwave Systems MA7CAE1600-S2-KIT	9 A	Gold	Dust Tight Waterproof	IP67	Push-Twist	-20 °C	130 °C	Metal	Backshell Coupling Nut	M23-16	Shielded	Free Hanging (In-Line)	Nickel	16	Male Pins Plug	125 V	DC	Crimp	E	Silver	Zinc Die Cast		Nylon 6/6 PA66 Polyamide		UL94 V-0					Nickel	Zinc Die Cast	Communication Systems Industrial Medical	Copper Alloy	0.295 in	0.433 in
McGill Microwave Systems MA7CAE1700-S1-KIT	9 A	Gold	Dust Tight Waterproof	IP67	Threaded	-20 °C	130 °C	Metal	Backshell Coupling Nut	M23-17	Shielded	Free Hanging (In-Line)	Nickel	17	Male Pins Plug	125 V	DC	Crimp	N (Normal)	Silver	Zinc Die Cast
McGill Microwave Systems MA7CAE1200-S1-KIT	10 A	Gold	Dust Tight Waterproof	IP67	Threaded	-20 °C	130 °C	Metal	Backshell Coupling Nut	M23-12	Shielded	Free Hanging (In-Line)	Nickel	12	Male Pins Plug	160 V		Crimp	N (Normal)	Silver	Zinc Die Cast
