RT06102 Series

Catalog

PLUG, 4 (2+2) POSITION, MALE, SHELL SIZE 10, AND END CAP WITH INDIVIDUAL WIRE SEALING /BAG ROHS COMPLIANT: YES

Part	Orientation	Shielding	Shell Material	Shell Size - Insert Length	Shell Size - Insert Width	Connector Type	Housing Color	Note	Material Flammability Rating	Type	Features	Contact Shape	Mounting Type	Ingress Protection Description	Ingress Protection IP Rating	Insert Material	Contact Type	Contact Size	Shell Finish	Operating Temperature (Min)	Operating Temperature (Max)	Fastening Type	Number of Positions	Includes	Includes Total Count
McGill Microwave Systems RT06102PNHEC	N (Normal)	Shielded	Zinc Alloy	10 mm	2 mm	Plug Housing	Silver	Contacts Not Included	UL94 V-0	For Male Pins	Backshell Coupling Nut	Circular	Free Hanging (In-Line)	Dust Tight Waterproof	IP67	Thermoplastic	Crimp	16 20	Nickel	-40 °C	105 °C	Bayonet Lock	4

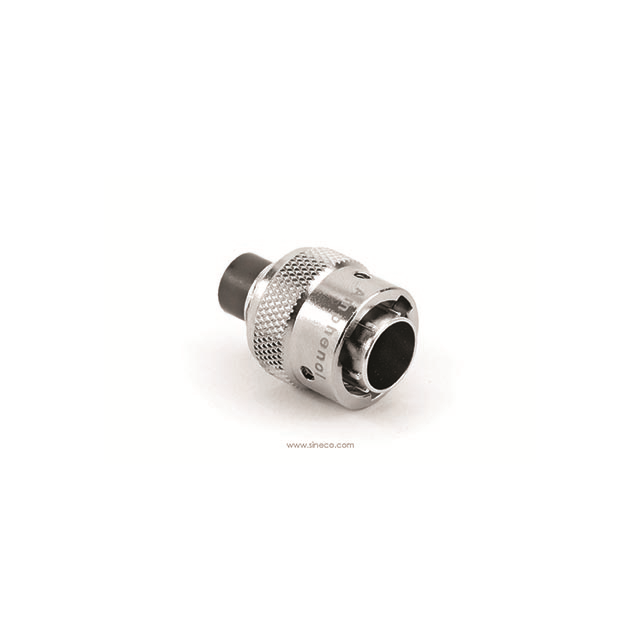

McGill Microwave Systems RT06102PNH03	N (Normal)	Shielded	Zinc Alloy	10 mm	2 mm	Plug Housing	Silver	Contacts Not Included	UL94 V-0	For Male Pins	Coupling Nut	Circular	Free Hanging (In-Line)	Dust Tight Waterproof	IP67	Thermoplastic	Crimp	16 20	Nickel	-40 °C	125 °C	Bayonet Lock	4	Connector Gasket O-Ring	3 pcs
