Q-0B04O0 Series

Catalog

CBL ASSY BNC-TNC JACK-JACK 5'

Part	Overall Impedance	2nd Connector Mounting Type	Frequency - Max	2nd Contact Gender	Features	Style	1st Contact Gender	2nd Connector Mounting Feature	2nd Connector	Cable Type	1st Connector	1st Connector Mounting Type	Color	Length	Length (ft)

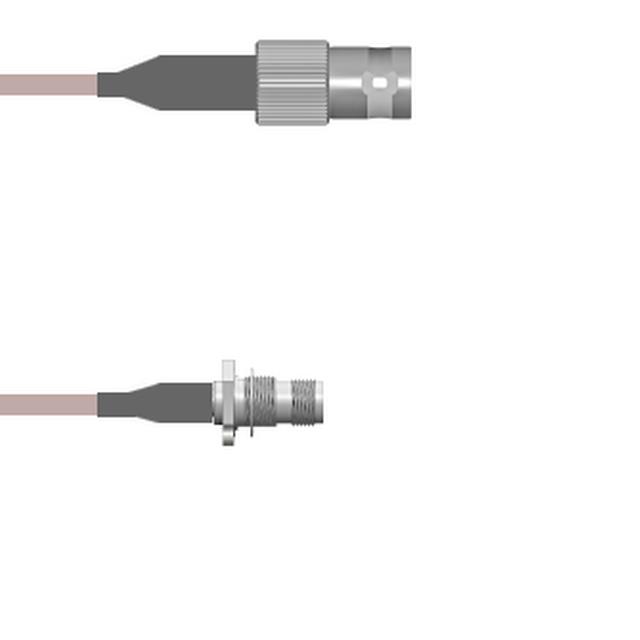

McGill Microwave Systems Q-0B04O000H060i	50 Ohms	Panel Mount	4 GHz	Female	Shielded	BNC TNC	Female	Bulkhead - Front Side Nut	TNC Jack	142 RG	BNC Jack	Free Hanging (In-Line)	Copper	1524 mm	5 ft
McGill Microwave Systems Q-0B04O000H036i	50 Ohms	Panel Mount	4 GHz	Female	Shielded	BNC TNC	Female	Bulkhead - Front Side Nut	TNC Jack	142 RG	BNC Jack	Free Hanging (In-Line)	Copper	36 in
McGill Microwave Systems Q-0B04O000H072i	50 Ohms	Panel Mount	4 GHz	Female	Shielded	BNC TNC	Female	Bulkhead - Front Side Nut	TNC Jack	142 RG	BNC Jack	Free Hanging (In-Line)	Copper	72 in
McGill Microwave Systems Q-0B04O000H0.5M	50 Ohms	Panel Mount	4 GHz	Female	Shielded	BNC TNC	Female	Bulkhead - Front Side Nut	TNC Jack	142 RG	BNC Jack	Free Hanging (In-Line)	Copper	19.69 in
McGill Microwave Systems Q-0B04O000H006i	50 Ohms	Panel Mount	4 GHz	Female	Shielded	BNC TNC	Female	Bulkhead - Front Side Nut	TNC Jack	142 RG	BNC Jack	Free Hanging (In-Line)	Copper	0.5 ft
McGill Microwave Systems Q-0B04O000H.75M	50 Ohms	Panel Mount	4 GHz	Female	Shielded	BNC TNC	Female	Bulkhead - Front Side Nut	TNC Jack	142 RG	BNC Jack	Free Hanging (In-Line)	Copper	29.53 in
McGill Microwave Systems Q-0B04O000H084i	50 Ohms	Panel Mount	4 GHz	Female	Shielded	BNC TNC	Female	Bulkhead - Front Side Nut	TNC Jack	142 RG	BNC Jack	Free Hanging (In-Line)	Copper	84 in	7 ft
McGill Microwave Systems Q-0B04O000H009i	50 Ohms	Panel Mount	4 GHz	Female	Shielded	BNC TNC	Female	Bulkhead - Front Side Nut	TNC Jack	142 RG	BNC Jack	Free Hanging (In-Line)	Copper	228.6 mm
McGill Microwave Systems Q-0B04O000H1.5M	50 Ohms	Panel Mount	4 GHz	Female	Shielded	BNC TNC	Female	Bulkhead - Front Side Nut	TNC Jack	142 RG	BNC Jack	Free Hanging (In-Line)	Copper	59.1 in	4.9 ft
McGill Microwave Systems Q-0B04O000H001M	50 Ohms	Panel Mount	4 GHz	Female	Shielded	BNC TNC	Female	Bulkhead - Front Side Nut	TNC Jack	142 RG	BNC Jack	Free Hanging (In-Line)	Copper	39.4 in
