5645979 Series

Catalog

CONN PIN RCPT .042-.049 SOLDER

Part	Operating Temperature (Min)	Operating Temperature (Max)	Board Thickness (Max)	Board Thickness (Min)	Termination	Tail Type	Contact Finish Thickness	Socket Depth (Min)	Socket Depth (Max)	Contact Material	Accepts Pin Diameter (Max)	Accepts Pin Diameter (Min)	Contact Finish	Mounting Hole Diameter	Length - Overall	Flange Diameter

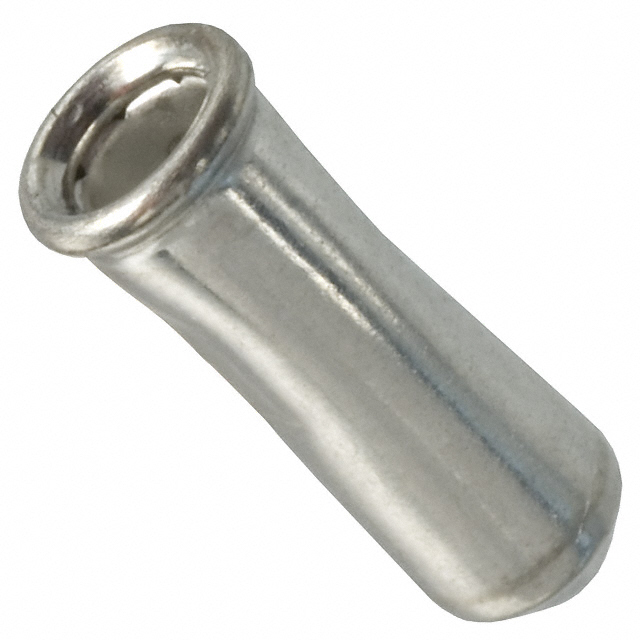

TE Connectivity AMP Connectors 5645979-1	-65 °C	126 °C	0.125 in	0.062 in	Solder	No Tail	100 µin	0.145 in	0.275 in	Beryllium Copper	0.049 in	0.042 in	Tin	0.102 in	0.308 in	0.118 in

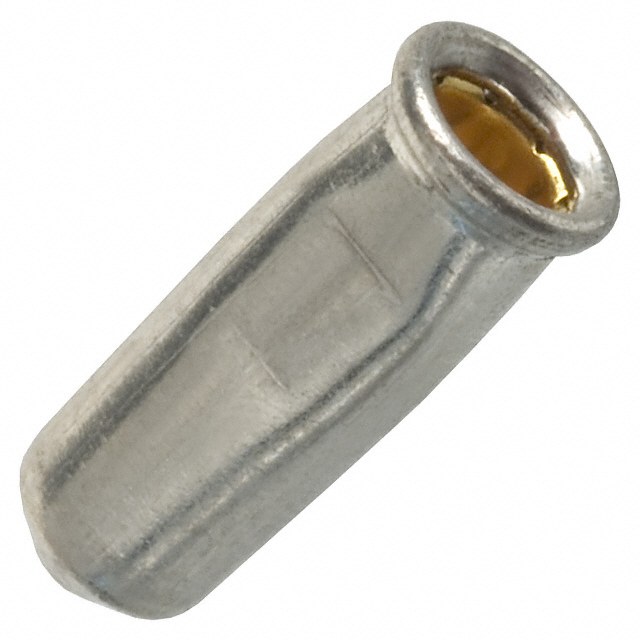

TE Connectivity AMP Connectors 1-5645979-2	-65 °C	126 °C	0.093 in	0.031 in	Solder	No Tail	30 µin	0.145 in	0.275 in	Beryllium Copper	0.049 in	0.042 in	Gold	0.102 in	0.308 in	0.118 in
