ACPR Series

Catalog

CONN PLUG RCA BLUE

Part	Contact Material - Plating	Includes Total Count	Includes	Housing Material	Current Rating	Contact Material	Body Color	Connector Type	Shielding	Internal Switch(s)	Industry Recognized Mating Diameter (Headphone)	Termination	Gender	Number of Contacts	Number of Conductors	Mounting Type	Signal Lines

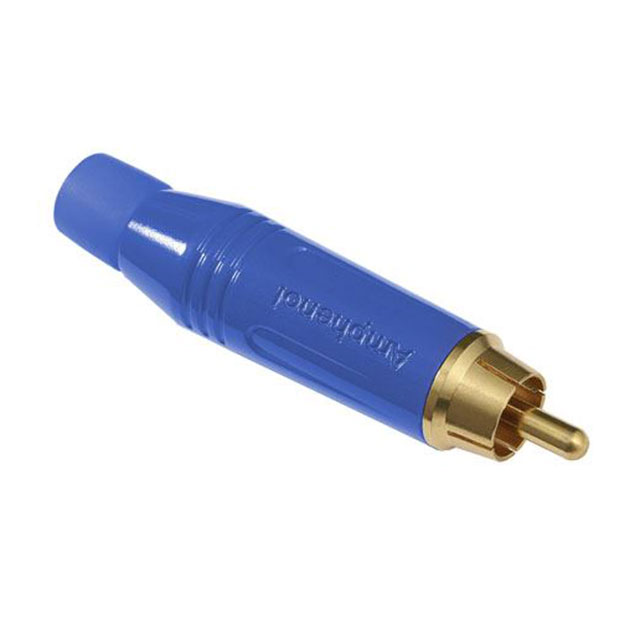

McGill Microwave Systems ACPR-BLU	Gold	3 pcs	Connector Handle Insulator Tube	Zinc Alloy	10 A	Brass	Blue Gold	Phono (RCA) Plug	Unshielded	Does Not Contain Switch	6.35 mm	Solder	Male	2 Contacts	2 Conductors	Free Hanging (In-Line)	Mono

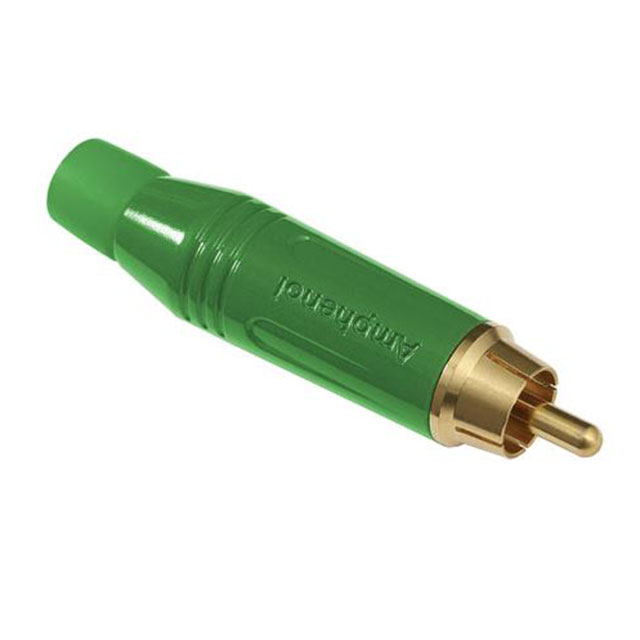

McGill Microwave Systems ACPR-GRN	Gold	3 pcs	Connector Handle Insulator Tube	Zinc Alloy	10 A	Brass	Gold Green	Phono (RCA) Plug	Unshielded	Does Not Contain Switch	6.35 mm	Solder	Male	2 Contacts	2 Conductors	Free Hanging (In-Line)	Mono

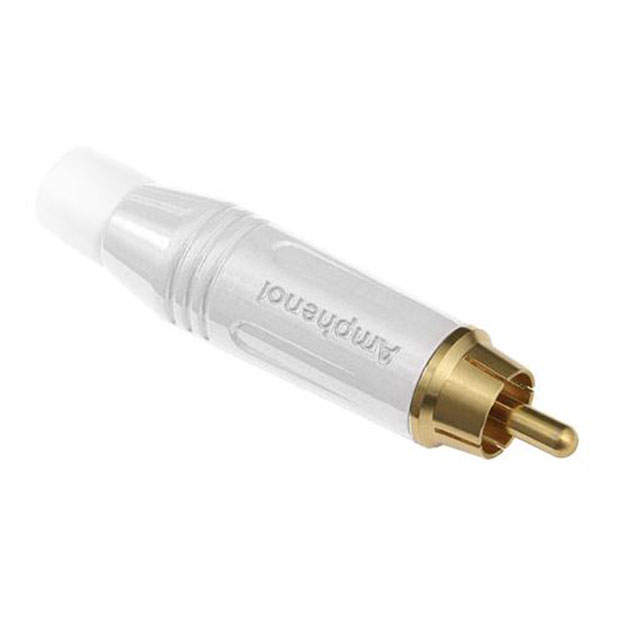

McGill Microwave Systems ACPR-WHT	Gold	3 pcs	Connector Handle Insulator Tube	Zinc Alloy	10 A	Brass	Gold White	Phono (RCA) Plug	Unshielded	Does Not Contain Switch	6.35 mm	Solder	Male	2 Contacts	2 Conductors	Free Hanging (In-Line)	Mono

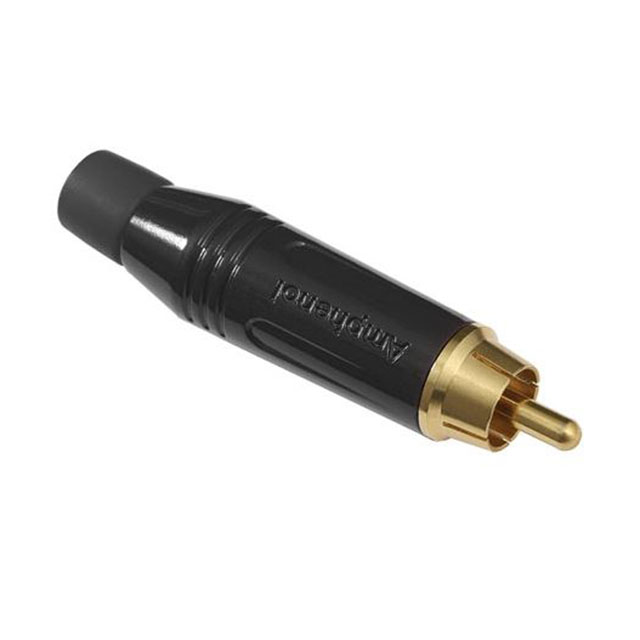

McGill Microwave Systems ACPR-BLK	Gold	3 pcs	Connector Handle Insulator Tube	Zinc Alloy	10 A	Brass	Black Gold	Phono (RCA) Plug	Unshielded	Does Not Contain Switch	6.35 mm	Solder	Male	2 Contacts	2 Conductors	Free Hanging (In-Line)	Mono
