2444090 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

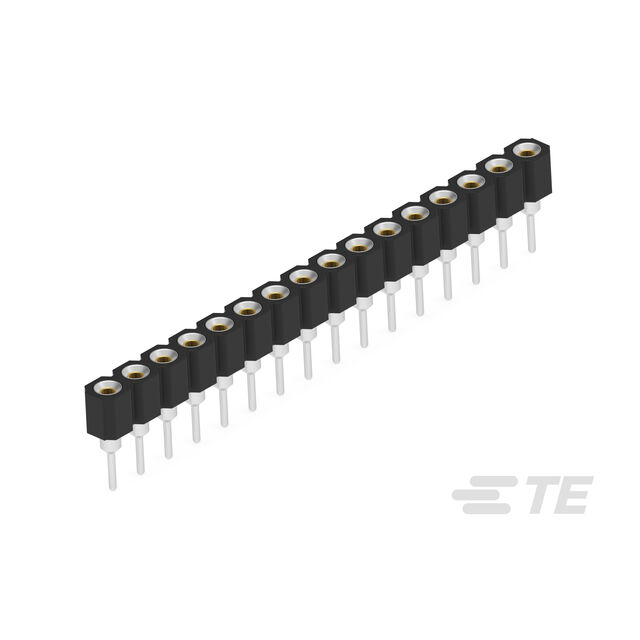

CONN SOCKET SIP 16POS GOLD
| Part | Material Flammability Rating | Contact Resistance | Termination Post Length | Termination | Pitch - Post | Type | Contact Material - Post | Contact Finish - Mating | Contact Material - Mating | Mounting Type | Housing Material | Contact Finish - Post | Pitch - Mating | Number of Positions or Pins (Grid) | Contact Finish Thickness - Post | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | UL94 V-0 | 10 mOhm | 0.109 in | Solder | 0.1 in | SIP | Copper Alloy | Gold | Copper Alloy | Through Hole | Thermoplastic | Tin | 0.1 in | 16 | 78.7 µin | Flash |
