97-3100A28 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT FMALE 14P SOLDER CUP

Part	Shell Size - Insert Length	Shell Size - Insert Width	Orientation	Color	Features	Contact Material	Applications	Number of Positions	Operating Temperature (Max)	Operating Temperature (Min)	Insert Material	Fastening Type	Shell Finish	Mounting Type	Termination	Mounting Feature	Backshell Material	Plating	Connector Type	Primary Material	Contact Finish - Mating	Shielding	Shell Material
Amphenol Aerospace Operations 97-3100A-28-20S	28 mm	20 mm	N (Normal)	Olive Drab	Backshell	Copper Alloy	Automotive Industrial	14	125 °C	-55 °C	DAP Diallyl Phthalate	Threaded	Cadmium Olive Drab Chromate	Panel Mount	Solder Cup	Flange	Aluminum Alloy	Olive Drab Chromate over Cadmium	Female Sockets Receptacle	Metal	Silver	Unshielded	Aluminum Alloy
Amphenol Aerospace Operations 97-3100A-28-15S	28 mm	15 mm	N (Normal)	Olive Drab	Backshell	Copper Alloy	Automotive Industrial	35	125 °C	-55 °C	DAP Diallyl Phthalate	Threaded	Cadmium Olive Drab Chromate	Panel Mount	Solder Cup	Flange	Aluminum Alloy	Olive Drab Chromate over Cadmium	Female Sockets Receptacle	Metal	Silver	Unshielded	Aluminum Alloy
Amphenol Aerospace Operations 97-3100A-28-11S	28 mm	11 mm	N (Normal)	Olive Drab	Backshell	Copper Alloy	Automotive Industrial	22	125 °C	-55 °C	DAP Diallyl Phthalate	Threaded	Cadmium Olive Drab Chromate	Panel Mount	Solder Cup	Flange	Aluminum Alloy	Olive Drab Chromate over Cadmium	Female Sockets Receptacle	Metal	Silver	Unshielded	Aluminum Alloy

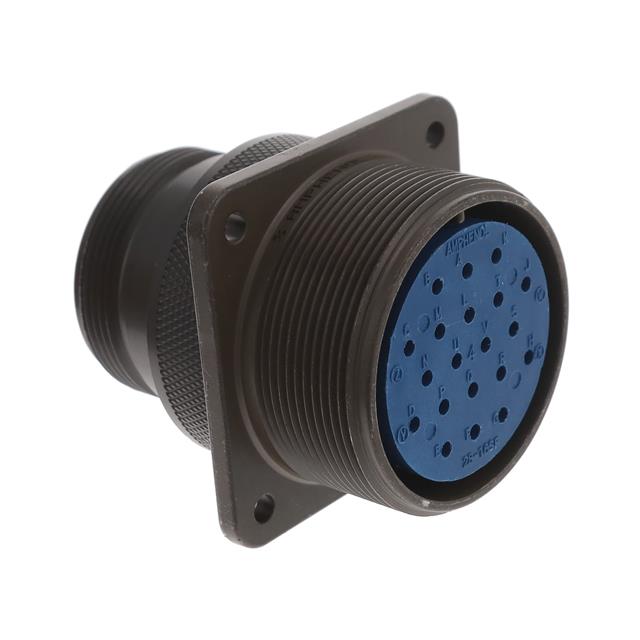

Amphenol Aerospace Operations 97-3100A-28-16S	28 mm	16 mm	N (Normal)	Olive Drab	Backshell	Copper Alloy	Automotive Industrial	20	125 °C	-55 °C	DAP Diallyl Phthalate	Threaded	Cadmium Olive Drab Chromate	Panel Mount	Solder Cup	Flange	Aluminum Alloy	Olive Drab Chromate over Cadmium	Female Sockets Receptacle	Metal	Silver	Unshielded	Aluminum Alloy
