MS10 Series

Catalog

2.5MM FEMALE CONTACT, GOLD 15",

Part	Contact Finish Thickness	Contact Size	Contact Material	Type	Contact Type	Contact Finish	Contact Termination	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - mm² (Maximum)	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Pin or Socket	Wire Gauge or Range - AWG	Wire Gauge or Range - AWG	Contact Finish Thickness (string set options)	Contact Finish Thickness	Wire Gauge or Range - mm²	Termination Finish
McGill Microwave Systems MS10B12E05G15	15 µin	2.5 mm	Copper Alloy	Machined	Socket	Gold	Crimp

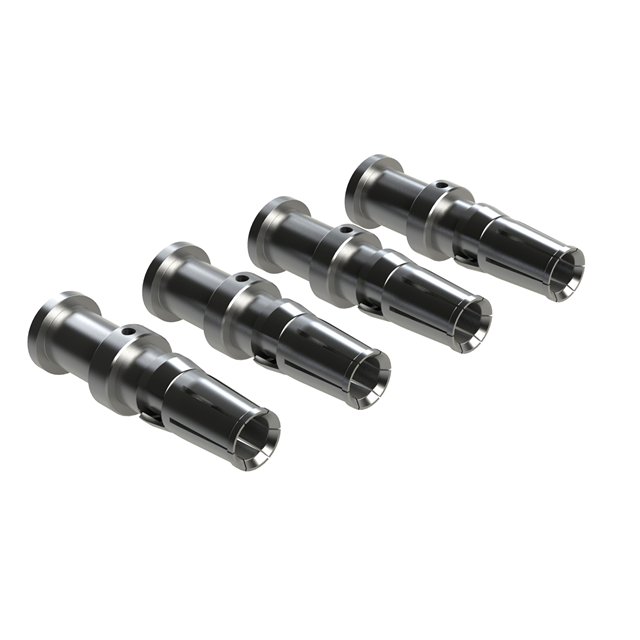

McGill Microwave Systems MS10A23S-25		8	Copper Alloy	Machined Signal	Socket	Silver	Crimp	1.5 mm²	2.5 mm²	16 AWG	14 AWG
McGill Microwave Systems MS10B12E05G10	10 Ąin	2.5 mm	Copper Alloy	Machined	Socket	Gold	Crimp

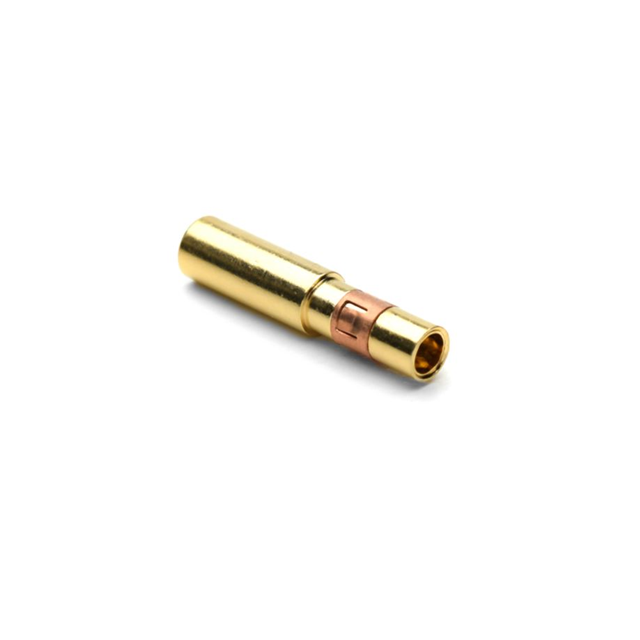

McGill Microwave Systems MS10B23G10	10 Ąin			Machined		Gold	Crimp					12 AWG	10 AWG	Socket
McGill Microwave Systems MS10A23F-10	0	3.6 mm	Copper Alloy	Machined Power	Socket	Gold	Crimp								8 AWG	8 AWG	Flash	Flash	10 mm²

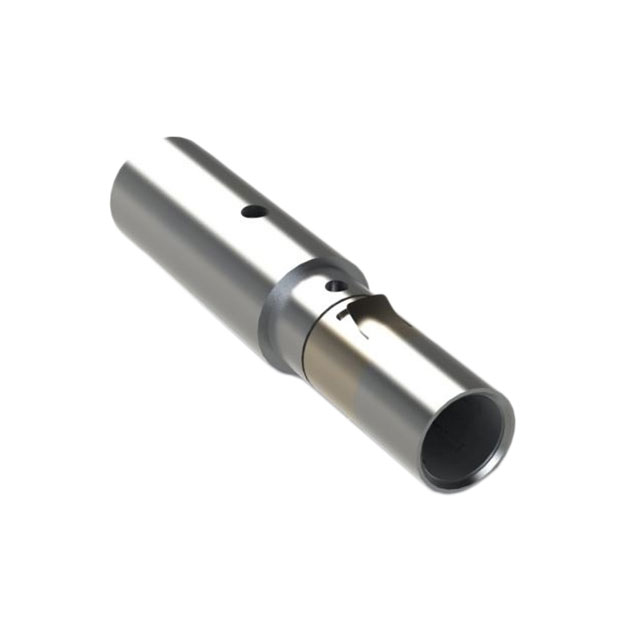

McGill Microwave Systems MS10B23S				Machined		Silver	Crimp					12 AWG	10 AWG	Socket
McGill Microwave Systems MS10B23G5	5 µin			Machined		Gold	Crimp					12 AWG	10 AWG	Socket
McGill Microwave Systems MS10B23T				Machined		Tin	Crimp					12 AWG	10 AWG	Socket

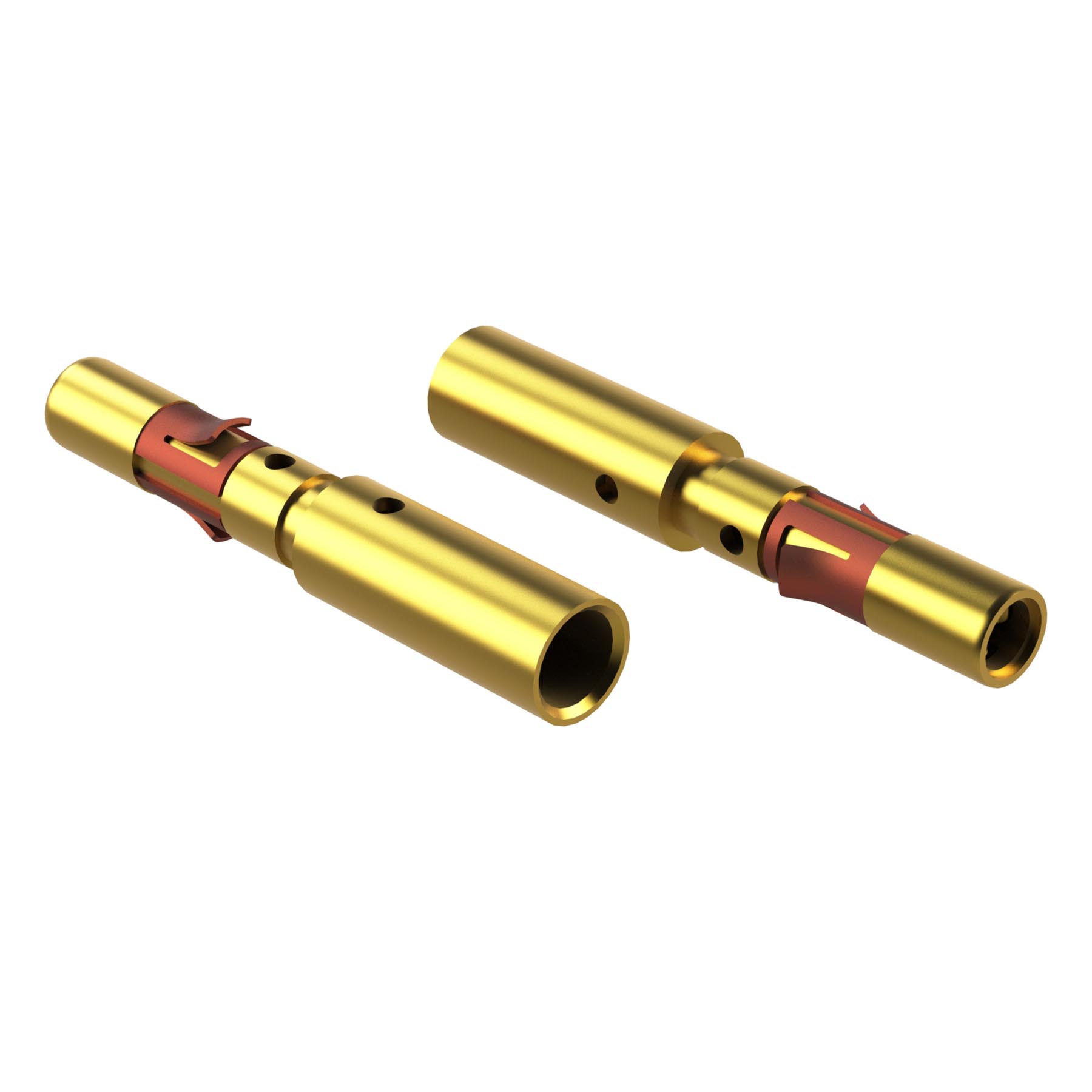

McGill Microwave Systems MS10B12E05F	0	2.5 mm	Copper Alloy	Machined	Socket	Gold	Crimp										Flash	Flash

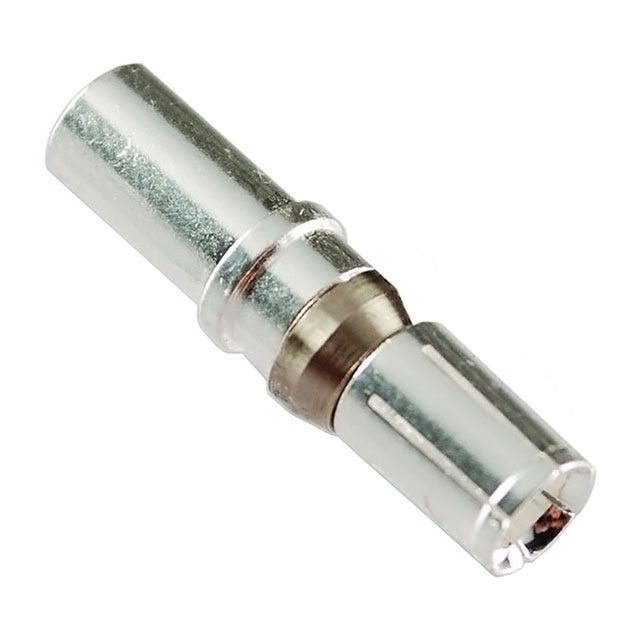

McGill Microwave Systems MS10A23S		8	Copper Alloy	Machined Signal	Socket	Silver	Crimp	3 mm²	6 mm²	12 AWG	10 AWG									Copper Alloy
