AD8139 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

OPERATIONAL AMPLIFIER, 1 CHANNELS, 410 MHZ, 800 V/ΜS, 4.5V TO ± 6V, NSOIC-EP, 8 PINS

Part	Voltage - Input Offset	Current - Input Bias	Output Type	Package Name	Current - Output / Channel	Mounting Type	Number of Circuits	Operating Temperature (Max)	Operating Temperature (Min)	Package Length	Package Features	Package Width	Current - Supply	Slew Rate	Voltage - Supply Span (Max)	Amplifier Type	Voltage - Supply Span (Min)	-3db Bandwidth	Package / Case	Supplied Contents	Board Type	Utilized IC / Part	Channels per IC (Single)	Channels per IC (Type)	Channels per IC (Count)	Contents
Analog Devices Inc./Maxim Integrated AD8139ARDZ	150 µV	2.25 µA	Differential Rail-to-Rail	8-SOIC 8-SOIC-EP	100 mA	Surface Mount	1	125 °C	-40 °C	0.154 in	Exposed Pad	3.9 mm	24.5 mA	800 V/µs	12 V	Differential	4.5 V	410 MHz
Analog Devices Inc./Maxim Integrated AD8139ARD-REEL7	150 µV	2.25 µA	Differential Rail-to-Rail	8-SOIC 8-SOIC-EP	100 mA	Surface Mount	1	125 °C	-40 °C	0.154 in	Exposed Pad	3.9 mm	24.5 mA	800 V/µs	12 V	Differential	4.5 V	410 MHz
Analog Devices Inc./Maxim Integrated AD8139ARD-REEL	150 µV	2.25 µA	Differential Rail-to-Rail	8-SOIC 8-SOIC-EP	100 mA	Surface Mount	1	125 °C	-40 °C	0.154 in	Exposed Pad	3.9 mm	24.5 mA	800 V/µs	12 V	Differential	4.5 V	410 MHz
Analog Devices Inc./Maxim Integrated AD8139ARDZ-REEL	150 µV	2.25 µA	Differential Rail-to-Rail	8-SOIC 8-SOIC-EP	100 mA	Surface Mount	1	125 °C	-40 °C	0.154 in	Exposed Pad	3.9 mm	24.5 mA	800 V/µs	12 V	Differential	4.5 V	410 MHz
Analog Devices Inc./Maxim Integrated AD8139ARD	150 µV	2.25 µA	Differential Rail-to-Rail	8-SOIC 8-SOIC-EP	100 mA	Surface Mount	1	125 °C	-40 °C	0.154 in	Exposed Pad	3.9 mm	24.5 mA	800 V/µs	12 V	Differential	4.5 V	410 MHz

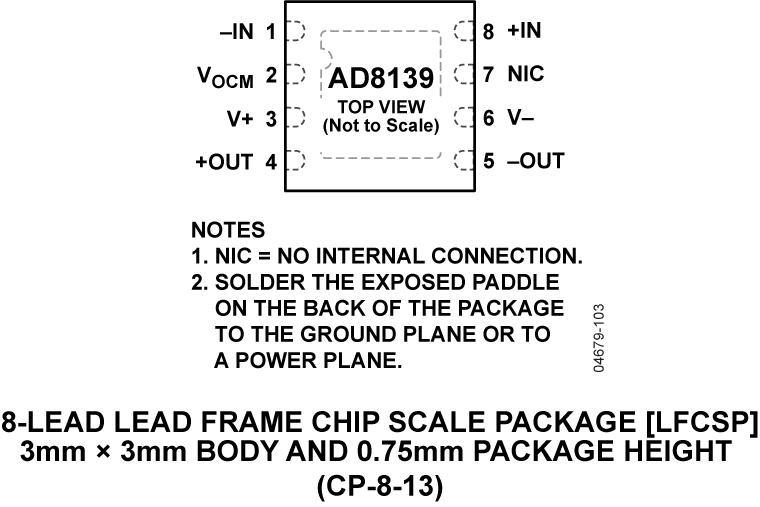

Analog Devices Inc./Maxim Integrated AD8139ACPZ-REEL7	150 µV	2.25 µA	Differential Rail-to-Rail	8-LFCSP	100 mA	Surface Mount	1	125 °C	-40 °C	3 mm		3 mm	24.5 mA	800 V/µs	12 V	Differential	4.5 V	410 MHz	8-WFDFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated AD8139ACP-EBZ																Differential				Board(s)	Bare (Unpopulated)	8-LFCSP Package	1	Single	1	Unpopulated (Bare) Board
