749808 Series

Catalog

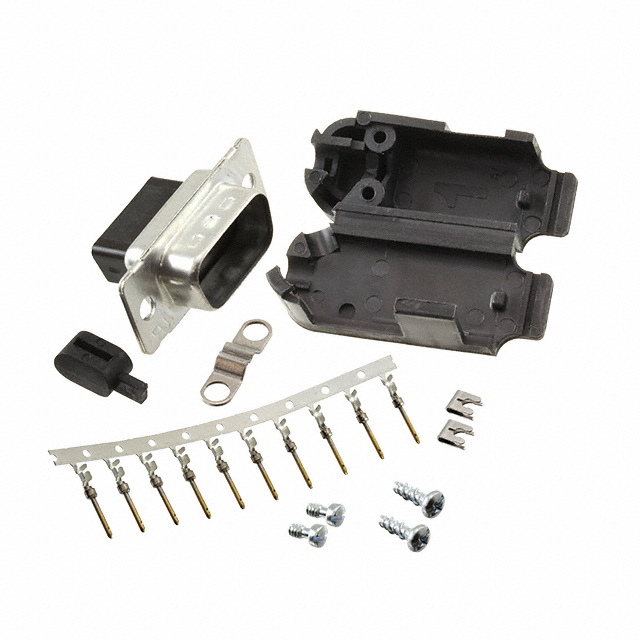

KIT,PLUG,15P,HDP-20 ROHS COMPLIANT: YES

Part	Material Flammability Rating	Current Rating	Connector Style	Flange Feature	Features	Number of Positions	Contact Finish Thickness (string set options)	Contact Finish Thickness	Number of Rows	Shell Size	Connector Layout	Mounting Type	Contact Type	Connector Type	Finish	Shell Material	Contact Finish	Termination	Contact Material	Voltage Rating	Color	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material
TE Connectivity AMP Connectors 749808-9	UL94 V-0	Varies by Wire Gauge	D-Sub	Housing Shell (Unthreaded)	Grounding Indents	15	Flash	Flash	2	2	A DA	Free Hanging (In-Line)	Signal	Male Pins Plug	Tin Plated	Steel	Gold	Crimp	Brass	250 V	Black	-55 °C	105 °C	Glass Filled Nylon Polyamide (PA)
TE Connectivity AMP Connectors 749808-1	UL94 V-0	Varies by Wire Gauge	D-Sub	Housing Shell (Unthreaded)	Grounding Indents	9	Flash	Flash	2	1	DE E	Free Hanging (In-Line)	Signal	Male Pins Plug	Tin Plated	Steel	Gold	Crimp	Brass	250 V	Black	-55 °C	105 °C	Glass Filled Nylon Polyamide (PA)
TE Connectivity AMP Connectors 749808-3	UL94 V-0	Varies by Wire Gauge	D-Sub	Housing Shell (Unthreaded)	Grounding Indents	25	Flash	Flash	2	3	B DB	Free Hanging (In-Line)	Signal	Male Pins Plug	Tin Plated	Steel	Gold	Crimp	Brass	250 V	Black	-55 °C	105 °C	Glass Filled Nylon Polyamide (PA)
