24LC16B Series

16Kb I2C compatible 2-wire Serial EEPROM

Catalog

16Kb I2C compatible 2-wire Serial EEPROM

Part	Mounting Type	Technology	Memory Size	Memory Type	Memory Format	Clock Frequency	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Operating Temperature (Max)	Operating Temperature (Min)	Memory Interface (Type)	Write Cycle Time - Word	Write Cycle Time - Page	Package Name	Memory Width	Memory Depth	Package Width	Package Length	Access Time	Qualification	Grade

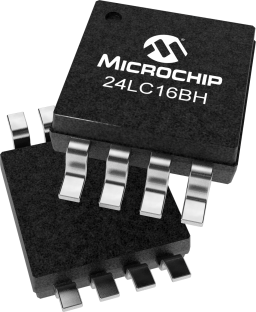

Microchip Technology 24LC16BH-E/MS	Surface Mount	EEPROM	2 KB	Non-Volatile	EEPROM	400 kHz	2.5 V	5.5 V	125 °C	-40 °C	I2C	5 ms	5 ms	8-MSOP 8-TSSOP 8-MSOP	8 bit	2 K	3 mm	0.118 in	900 ns
Microchip Technology 24LC16BT-I/SN	Surface Mount	EEPROM	2 KB	Non-Volatile	EEPROM	400 kHz	2.5 V	5.5 V	85 °C	-40 °C	I2C	5 ms	5 ms	8-SOIC	8 bit	2 K	3.9 mm	0.154 in	900 ns
Microchip Technology 24LC16B/ST	Surface Mount	EEPROM	2 KB	Non-Volatile	EEPROM	400 kHz	2.5 V	5.5 V	70 °C	0 °C	I2C	5 ms	5 ms	8-TSSOP	8 bit	2 K	4.4 mm	0.173 in	900 ns
Microchip Technology 24LC16BT-E/ST	Surface Mount	EEPROM	2 KB	Non-Volatile	EEPROM	400 kHz	2.5 V	5.5 V	125 °C	-40 °C	I2C	5 ms	5 ms	8-TSSOP	8 bit	2 K	4.4 mm	0.173 in	900 ns
Microchip Technology 24LC16BH-I/MS	Surface Mount	EEPROM	2 KB	Non-Volatile	EEPROM	400 kHz	2.5 V	5.5 V	85 °C	-40 °C	I2C	5 ms	5 ms	8-MSOP 8-TSSOP 8-MSOP	8 bit	2 K	3 mm	0.118 in	900 ns
Microchip Technology 24LC16B-E/ST	Surface Mount	EEPROM	2 KB	Non-Volatile	EEPROM	400 kHz	2.5 V	5.5 V	125 °C	-40 °C	I2C	5 ms	5 ms	8-TSSOP	8 bit	2 K	4.4 mm	0.173 in	900 ns
Microchip Technology 24LC16BT-H/OT16KVAO	Surface Mount	EEPROM	2 KB	Non-Volatile	EEPROM	400 kHz	2.5 V	5.5 V	150 °C	-40 °C	I2C	5 ms	5 ms	SOT-23-5	8 bit	2 K			900 ns	AEC-Q100	Automotive
Microchip Technology 24LC16BH-I/P	Through Hole	EEPROM	2 KB	Non-Volatile	EEPROM	400 kHz	2.5 V	5.5 V	85 °C	-40 °C	I2C	5 ms	5 ms	8-DIP 8-PDIP	8 bit	2 K	7.62 mm	0.3 in	900 ns
Microchip Technology 24LC16BHT-E/ST	Surface Mount	EEPROM	2 KB	Non-Volatile	EEPROM	400 kHz	2.5 V	5.5 V	125 °C	-40 °C	I2C	5 ms	5 ms	8-TSSOP	8 bit	2 K	4.4 mm	0.173 in	900 ns
Microchip Technology 24LC16B-I/MS	Surface Mount	EEPROM	2 KB	Non-Volatile	EEPROM	400 kHz	2.5 V	5.5 V	85 °C	-40 °C	I2C	5 ms	5 ms	8-MSOP 8-TSSOP 8-MSOP	8 bit	2 K	3 mm	0.118 in	900 ns

Catalog

16Kb I2C compatible 2-wire Serial EEPROM

Description

The Microchip Technology Inc. 24AA16/24LC16B is a 16Kb I2C™ compatible Serial EEPROM. The device is organized as eight blocks of 256 x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.7V with standby and active currents of only 1 µA and 1 mA, respectively. The 24XX16 also has a page write capability for up to 16 bytes of data. The 24XX16 is available in the standard 8-pin PDIP, surface mount SOIC, TSSOP, 2x3 DFN and MSOP packages, and is also available in the 5-lead SOT-23 package.
