770178 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

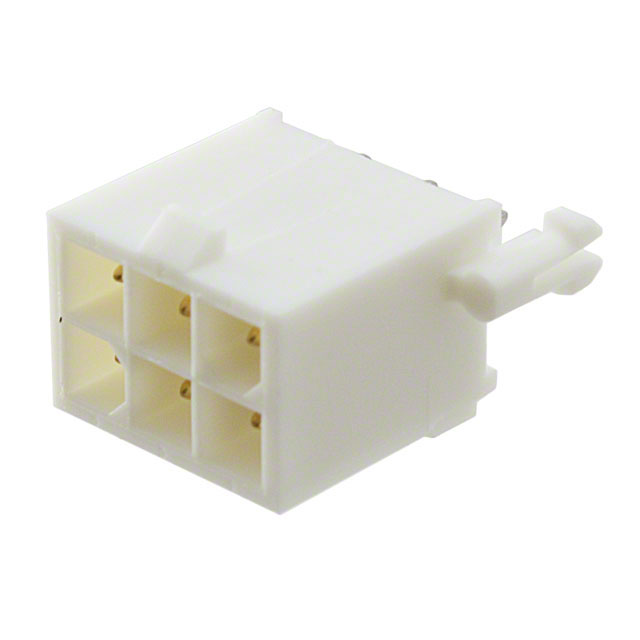

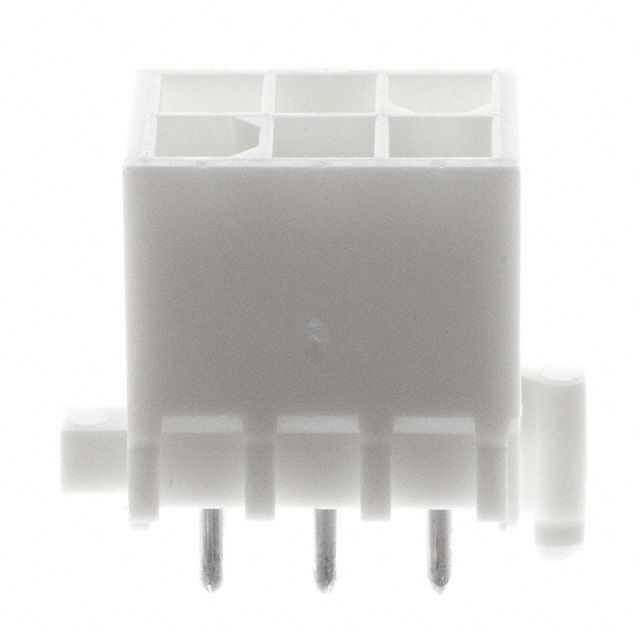

CONN HEADER VERT 6POS 4.14MM
| Part | Fastening Type | Termination | Contact Finish - Post | Connector Type | Contact Shape | Number of Positions | Contact Type | Insulation Color | Insulation Material | Material Flammability Rating | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions Loaded | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Current Rating (Amps) | Row Spacing - Mating | Row Spacing - Mating | Style | Applications | Shrouding | Contact Length - Post | Contact Length - Post | Contact Finish - Mating | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Voltage Rating | Contact Material | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Locking Ramp | Solder | Tin-Lead | Header | Circular | 6 | Male Pin | White | Nylon Polyamide (PA) | UL94 V-0 | 2 | 85 °C | -20 C | All | 150 Áin | 3.81 Ám | Varies by Wire Gauge | 4.14 mm | 0.163 in | Board to Cable/Wire | General Purpose | Shrouded - 4 Wall | 4.45 mm | 0.175 in | Tin-Lead | Through Hole | 150 Áin | 3.81 Ám | 600 VAC | Brass | 13.5 mm | 0.531 in | 4.14 mm | 0.163 in |
 TE Connectivity Raychem Cable Protection | Locking Ramp | Solder | Tin-Lead | Header | Circular | 6 | Male Pin | White | Nylon Polyamide (PA) | UL94 V-0 | 2 | 105 ░C | -20 C | All | 150 Áin | 3.81 Ám | Varies by Wire Gauge | 4.14 mm | 0.163 in | Board to Cable/Wire | General Purpose | Shrouded - 4 Wall | 4.45 mm | 0.175 in | Gold | Through Hole | 30 Áin | 0.76 Ám | 600 VAC | Brass | 13.5 mm | 0.531 in | 4.14 mm | 0.163 in |
