XLamp Pro9 Series

Catalog

WHITE LEDS WHITE 3000 K 95-CRI, XLAMP CMA1840-36V

Part	Viewing Angle	CRI (Color Rendering Index)	Temperature - Test	Height	Configuration	Current - Max	CCT (K)	CCT Description	Type	Size / Dimension Width	Size / Dimension Length	Voltage - Forward (Vf) (Typ)	Color	Light Emitting Surface (LES) Diameter	Current - Test	Lens Type	Lumens/Watt	Luminous Flux	Luminous Flux (Typical)
CreeLED, Inc. CMA1840-0000-00PN0Z0AL7C	115 °	95	85 °C	1.7 mm	Square	2.3 A	3000 K	2-Step MacAdam Ellipse	Chip On Board (COB)	17.85 mm	17.85 mm	34.7 V	Warm White	14 mm	1.1 A	Flat
CreeLED, Inc. CXB1304-0000-00PN0U0A35H	115 °	90	85 °C	1.7 mm	Square	250 mA	3500 K	2-Step MacAdam Ellipse	Chip On Board (COB)	13.35 mm	13.35 mm	33.8 V	Warm White	6 mm	100 mA	Flat	142 lm/W	480 lm

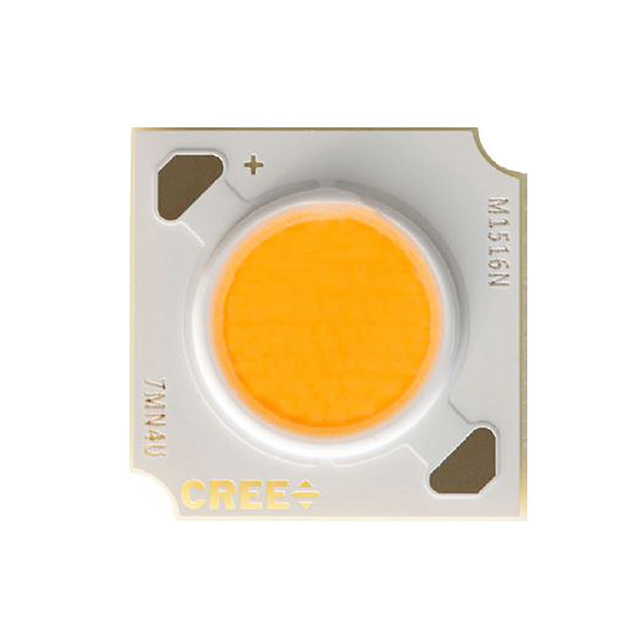

CreeLED, Inc. CMA1516-0000-00PN0U0A30G	115 °	90	85 °C	1.7 mm	Square	840 mA	3000 K	3-Step MacAdam Ellipse	Chip On Board (COB)	15.85 mm	15.85 mm	35 V	Warm White	9 mm	450 mA	Flat	130 lm/W		2043 lm
CreeLED, Inc. CMA1840-0000-00PN0Z0AL7C	115 °	95	85 °C	1.7 mm	Square	2.3 A	3000 K	2-Step MacAdam Ellipse	Chip On Board (COB)	17.85 mm	17.85 mm	34.7 V	Warm White	14 mm	1.1 A	Flat
CreeLED, Inc. CXB3590-0000-00PR0U0A27G	115 °	90	85 °C	1.7 mm	Square	1.8 A	2700 K	3-Step MacAdam Ellipse	Chip On Board (COB)	34.85 mm	34.85 mm	72 V	Warm White	30 mm	1.2 A	Flat
CreeLED, Inc. CXB1507-0000-00PF0U0A31Q	115 °	90	85 °C	1.7 mm	Square	750 mA	3100 K	3-Step MacAdam Ellipse	Chip On Board (COB)	15.85 mm	15.85 mm	16.9 V	Warm White	8.9 mm	400 mA	Flat
CreeLED, Inc. CXB3050-0000-00PN0U0A30U	115 °	90	85 °C	1.7 mm	Square	2.5 A	3000 K	3-Step MacAdam Ellipse	Chip On Board (COB)	27.35 mm	27.35 mm	34 V	Warm White	23 mm	1.4 A	Flat
CreeLED, Inc. CMA1825-0000-00PN0U0A50G	115 °	90	85 °C	1.7 mm	Square	1.6 A	5000 K	3-Step MacAdam Ellipse	Chip On Board (COB)	17.85 mm	17.85 mm	34.6 V	Cool White	12 mm	700 mA	Flat
CreeLED, Inc. CMA1825-0000-00PN0U0A50G	115 °	90	85 °C	1.7 mm	Square	1.6 A	5000 K	3-Step MacAdam Ellipse	Chip On Board (COB)	17.85 mm	17.85 mm	34.6 V	Cool White	12 mm	700 mA	Flat
CreeLED, Inc. CMA1516-0000-00PN0U0A35H	115 °	90	85 °C	1.7 mm	Square	1.05 A	3500 K	2-Step MacAdam Ellipse	Chip On Board (COB)	15.85 mm	15.85 mm	34 V	Warm White	9 mm	450 mA	Flat
