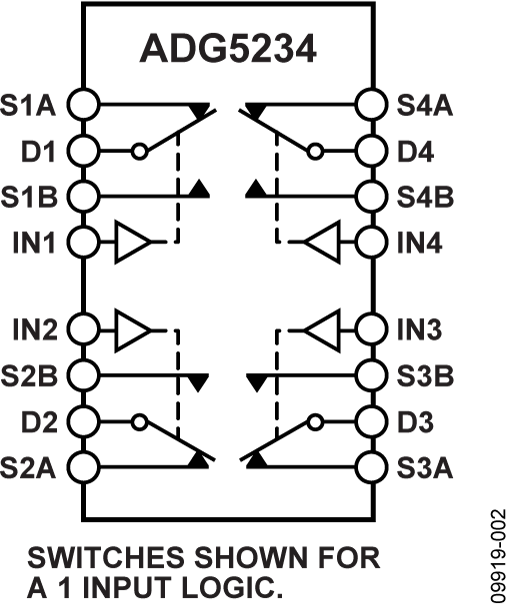

ADG5234 Series

Catalog

HIGH VOLTAGE LATCH-UP PROOF, QUAD SPDT SWITCHES

Part	On-State Resistance (Max)	Mounting Type	Channel-to-Channel Matching (ΔRon)	Package Name	Charge Injection	Package Length	Package Width	Multiplexer Inputs	Demultiplexer Outputs	Switch Time Ton (Max)	Switch Time Toff (Max)	Current - Leakage (Max)	Channel Capacitance (CS(off))	Channel Capacitance (CD(off))	Voltage - Supply, Dual (Nominal)	Voltage - Supply, Dual (Minimum)	Voltage - Supply, Dual (Maximum)	Number of Circuits	Crosstalk	-3db Bandwidth	Operating Temperature (Max)	Operating Temperature (Min)	Switch Circuit Type	Voltage - Supply, Single (V+) (Maximum)	Voltage - Supply, Single (V+) (Minimum)	Package / Case
Analog Devices Inc./Maxim Integrated ADG5234BRUZ	160 Ohms	Surface Mount	3.5 Ohm	20-TSSOP	0.7 pC	0.173 in	4.4 mm	2	1	200 ns	95 ns	100 pA	4.5 pF	10 pF	9 V	-9 V	22 V	4	-80 dB	370 MHz	125 °C	-40 °C	SPDT	40 V	9 V
Analog Devices Inc./Maxim Integrated ADG5234BRUZ-RL7	160 Ohms	Surface Mount	3.5 Ohm	20-TSSOP	0.7 pC	0.173 in	4.4 mm	2	1	200 ns	95 ns	100 pA	4.5 pF	10 pF	9 V	-9 V	22 V	4	-80 dB	370 MHz	125 °C	-40 °C	SPDT	40 V	9 V
Analog Devices Inc./Maxim Integrated ADG5234BCPZ-RL7	160 Ohms	Surface Mount	3.5 Ohm	20-LFCSP	0.7 pC	4 mm	4 mm	2	1	200 ns	95 ns	100 pA	4.5 pF	10 pF	9 V	-9 V	22 V	4	-80 dB	370 MHz	125 °C	-40 °C	SPDT	40 V	9 V	20-WFQFN Exposed Pad CSP
