RT00104 Series

Catalog

CONN RCPT HSNG FMALE 4POS PNL MT

Part	Operating Temperature (Min)	Operating Temperature (Max)	Insert Material	Shell Finish	Shell Size - Insert Width	Shell Size - Insert Length	Connector Type	Contact Type	Shielding	Shell Material	Ingress Protection Description	Ingress Protection IP Rating	Number of Positions	Note	Mounting Type	Orientation	Type	Material Flammability Rating	Contact Shape	Contact Size	Housing Color	Fastening Type	Mounting Feature	Primary Material	Voltage Rating	Contact Finish - Mating	Applications	Contact Finish Thickness - Mating	Termination	Current Rating	Color	Contact Material	Features	Voltage Rating (Type)

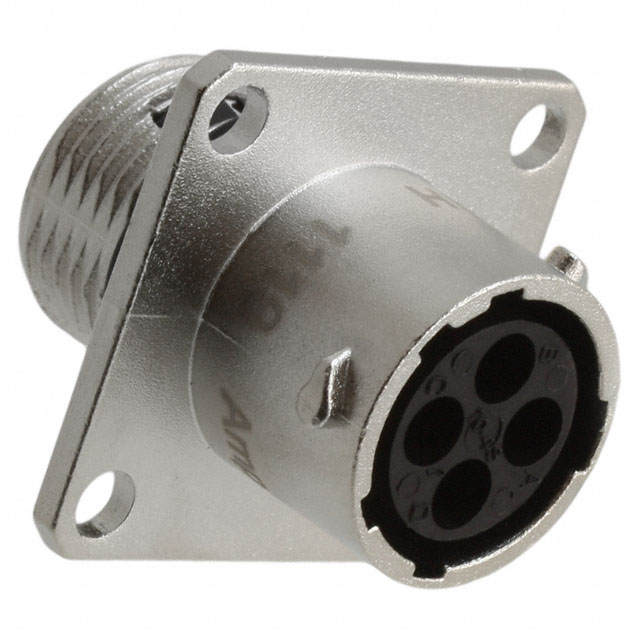

McGill Microwave Systems RT00104SNH	-40 °C	105 °C	Thermoplastic	Nickel	4 mm	10 mm	Receptacle Housing	Crimp	Shielded	Zinc Alloy	Dust Tight Waterproof	IP67	4	Contacts Not Included	Panel Mount	N (Normal)	For Female Sockets	UL94 V-0	Circular	16 S	Silver	Bayonet Lock	Flange

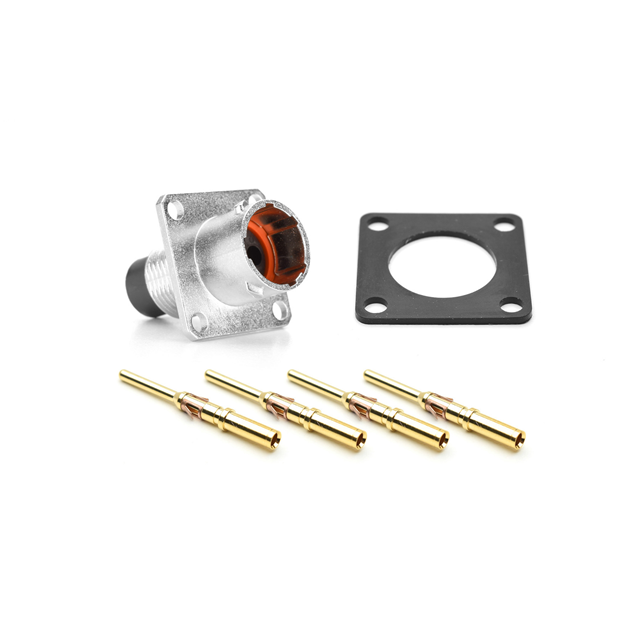

McGill Microwave Systems RT00104PKNH03-K	-40 °C	105 °C	Nylon 6/6 PA66 Polyamide	Nickel	4 mm	10 mm	Male Pins Receptacle		Shielded	Zinc Die Cast	Dust Tight Water Resistant Waterproof	IP67 IP69K	4		Panel Mount	N (Normal)		UL94 V-0				Bayonet Lock	Flange	Metal	250 V	Gold	Aerospace Automation Industrial Telecom Transportation	Flash	Crimp	13 A	Silver	Brass

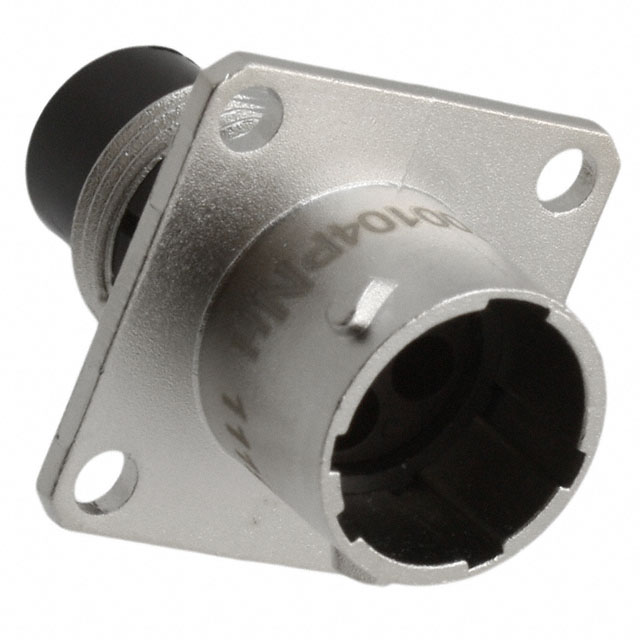

McGill Microwave Systems RT00104PNH	-40 °C	105 °C	Thermoplastic	Nickel	4 mm	10 mm	Receptacle Housing	Crimp	Shielded	Zinc Alloy	Dust Tight Waterproof	IP67	4	Contacts Not Included	Panel Mount	N (Normal)	For Male Pins	UL94 V-0	Circular	16 S	Silver	Bayonet Lock	Flange

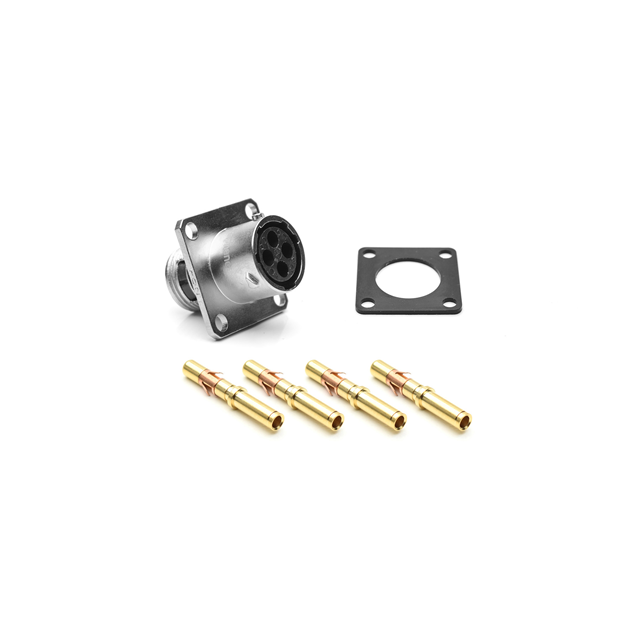

McGill Microwave Systems RT00104SKNH03-K	-40 °C	105 °C	Nylon 6/6 PA66 Polyamide	Nickel	4 mm	10 mm	Female Sockets Receptacle		Shielded	Zinc Die Cast	Dust Tight Water Resistant Waterproof	IP67 IP69K	4		Panel Mount	N (Normal)		UL94 V-0				Bayonet Lock	Flange	Metal	250 V	Gold	Aerospace Automation Industrial Telecom Transportation	Flash	Crimp	13 A	Silver	Brass
McGill Microwave Systems RT00104SNHEC03	-40 °C	125 °C	Thermoplastic	Nickel	4 mm	10 mm	Receptacle Housing	Crimp	Shielded	Zinc Alloy	Dust Tight Waterproof	IP67	4	Contacts Not Included	Panel Mount	N (Normal)	For Female Sockets	UL94 V-0	Circular	16 S	Silver	Bayonet Lock	Flange	Metal									Cap (Cover)
McGill Microwave Systems RT00104SNH-K	-40 °C	105 °C		Nickel	4 mm	10 mm	Female Sockets Receptacle			Zinc Die Cast	Dust Tight Waterproof	IP67	4		Panel Mount	N (Normal)						Bayonet Lock	Flange	Metal	250 V	Gold		Flash	Crimp	13 A	Silver			DC
