MA1CAE Series

Catalog

CONN PLUG MALE 17POS GOLD CRIMP

Part	Shell Finish	Contact Finish - Mating	Fastening Type	Primary Material	Ingress Protection Description	Ingress Protection IP Rating	Current Rating	Shell Material	Connector Type	Color	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Shielding	Shell Size - Insert	Termination	Voltage Rating	Voltage Rating (Type)	Number of Positions	Orientation	Type	Note	Insert Material	Features	Housing Color	Material Flammability Rating	Contact Size	Contact Type	Contact Shape

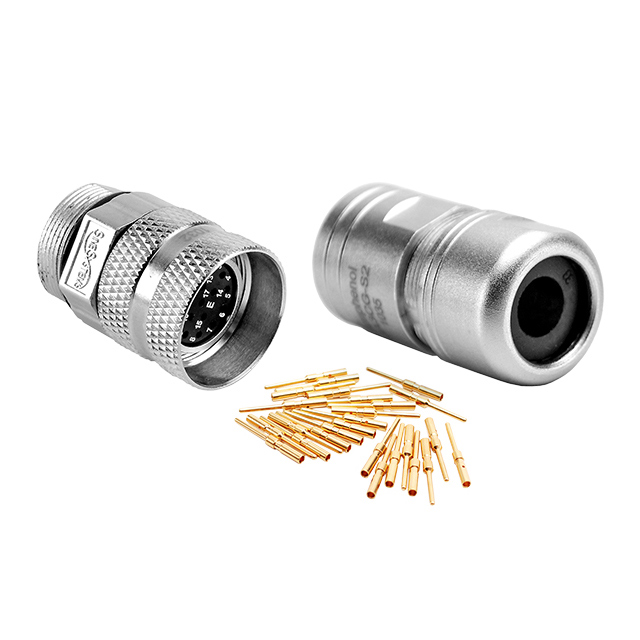

McGill Microwave Systems MA1CAE1700M-KIT	Nickel	Gold	Threaded	Metal	Dust Tight Waterproof	IP67	9 A	Zinc Die Cast	Male Pins Plug	Silver	-20 °C	130 °C	Free Hanging (In-Line)	Shielded	M23-17	Crimp	125 V	DC	17	E

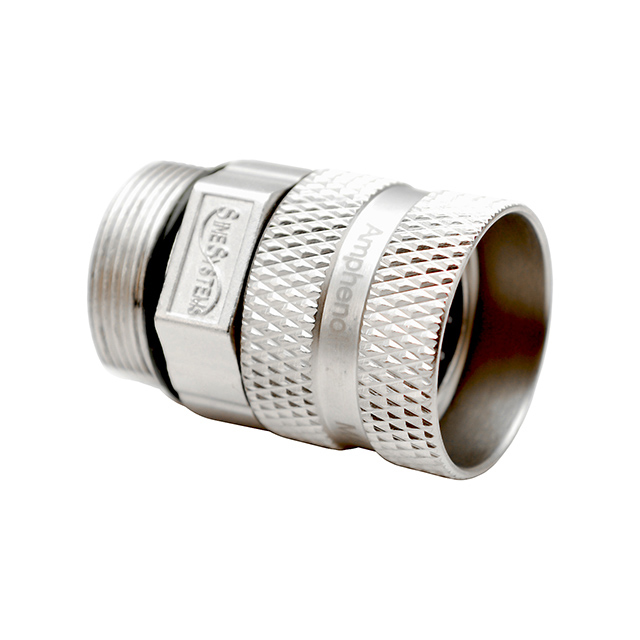

McGill Microwave Systems MA1CAE1600	Nickel		Threaded		Dust Tight Waterproof	IP67		Zinc Die Cast	Plug Housing		-20 °C	130 °C	Free Hanging (In-Line)	Shielded	M23-16				16	E	For Female Sockets or Male Pins	Contacts Not Included	Nylon 6/6 PA66 Polyamide	Coupling Nut	Silver	UL94 V-0	1 mm	Crimp	Circular

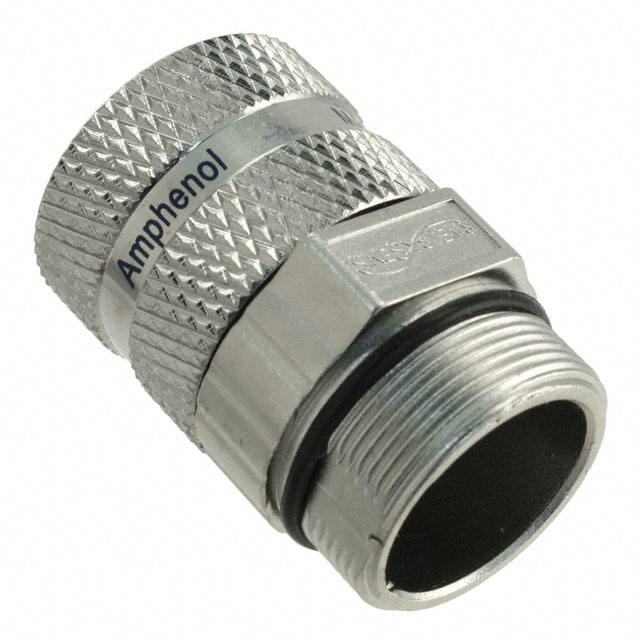

McGill Microwave Systems MA1CAE1700	Nickel		Threaded		Dust Tight Waterproof	IP67		Zinc Die Cast	Plug Housing		-20 °C	130 °C	Free Hanging (In-Line)	Shielded	M23-17				17	E	For Female Sockets or Male Pins	Contacts Not Included	Nylon 6/6 PA66 Polyamide	Coupling Nut	Silver	UL94 V-0	1 mm	Crimp	Circular
